Misrun & Short Shot in Die Casting - Causes & Fixes

A misrun (also called a short shot) means the die cavity did not fill completely. Metal stops before reaching the end of flow or before filling thin sections. The result is a visibly incomplete casting — missing geometry, open corners, or unfilled bosses.

Misrun is the opposite failure mode from flash: flash is excess metal; misrun is insufficient metal. It is often confused with cold shut, but cold shut is a bonded-but-weak interface where two fronts met too cold; misrun is simply no metal where metal was required.

For all eight common HPDC defects in one place, see the die casting defects overview.

---

What Misrun and Short Shot Look Like

Short shot: A portion of the designed cavity has no metal — the part looks “cut off” at the far end of fill or in isolated thin areas.

Typical visual cues:

• Unfilled ribs, bosses, or perimeter walls at the last-to-fill region
• Sharp, clean boundaries where metal simply stopped (not a seam like cold shut)
• Thin fins or connector walls missing entirely while thicker sections filled
• Gate-side regions full; opposite end empty or partially formed

Not misrun: A cold shut line on an otherwise full section; shrinkage porosity inside thick walls; or trimmed flash at the parting line.

---

How Misrun Forms

Metal loses heat as it travels through the cavity. When the remaining liquid cannot reach a region before that region solidifies, fill stops — a misrun results.

Common mechanisms:

1. Long flow path — Metal from the gate must travel too far; the front freezes before the end fills.
2. Thin sections — Walls below the practical minimum for the alloy solidify before metal arrives (especially aluminum HPDC below ~1.2–1.5 mm depending on geometry).
3. Low metal or die temperature — Less fluidity and faster skin formation on the flow front.
4. Insufficient injection energy — Slow fast-shot velocity or low intensification cannot push metal through the last thin constraint.
5. Venting blockage — Trapped air at the end of fill acts as a back-pressure zone; metal cannot displace it.
6. Cold or undersized shot — In cold-chamber HPDC, insufficient metal in the shot sleeve yields a short fill before the cavity is reached.

---

Where Misrun Appears in the Cavity

Location	Why it happens
Last-to-fill / far from gate	Maximum flow length; lowest metal temperature at arrival
Thin walls between thick sections	Thick areas fill first; thin links freeze while feeding thick regions
Top of deep ribs or tall cores	Metal must climb or wrap around cores with long skin contact
Remote corners after T-junctions	Flow splits; each branch has less energy when rejoining
Small isolated features	High surface-area-to-volume ratio cools the front quickly

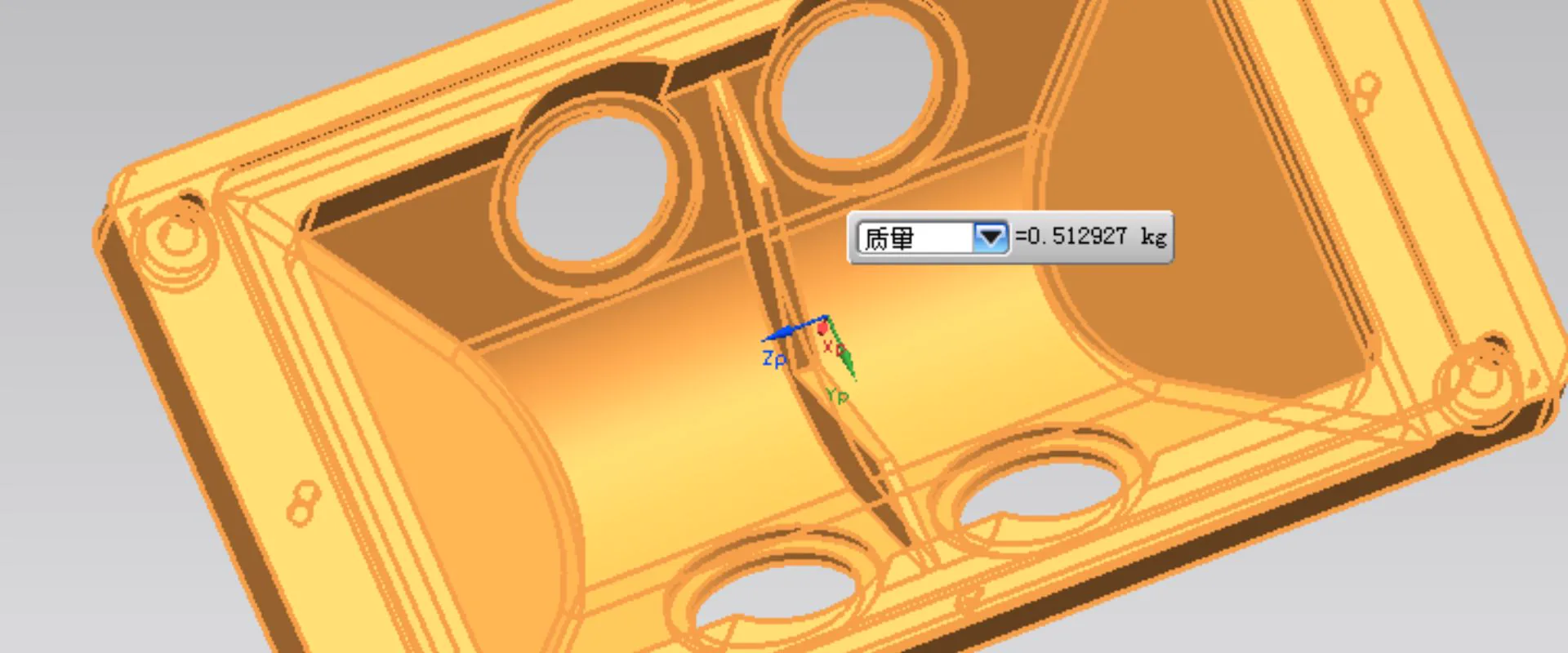

Mold flow simulation before tooling cut identifies these regions. KastMfg uses simulation on new programs to position gates, overflows, and wall thickness changes before the first shot.

---

Identifying Misrun vs Other Defects

Method	Misrun	Cold shut
Visual	Missing metal / open cavity	Full outline with surface line or seam
Cross-section	Void where metal should be	Unbonded interface between two filled regions
Pressure test	Leak if wall incomplete	May leak along seam even if outline looks full
X-ray	Absent volume	Fine dark line in otherwise filled section

100% visual inspection catches obvious misruns. Dimensional inspection against the drawing confirms missing features on critical programs.

---

Prevention — Design

Shorten flow length: Move the gate closer to the last-to-fill region, or add a second gate if symmetry allows.

Uniform wall thickness: Avoid thick-to-thin transitions that starve thin links. See the wall thickness guide.

Increase thin-wall thickness: If simulation shows misrun in a 1.2 mm rib, increasing to 1.5–1.8 mm often fixes fill without changing function.

Add overflow at flow end: Overflows accept the cold front and help pull hot metal through the final thin section — same strategy as for cold shut.

Radius and draft: Sharp re-entrant corners increase flow resistance; generous radii improve fill in problem areas.

---

Prevention — Process

Increase fast-shot velocity — Faster fill delivers liquid metal to thin sections before they freeze. Balance against gas porosity from turbulence.

Raise metal and die temperature — Standard first response for repeated misruns on otherwise sound tooling.

Verify intensification pressure and timing — Adequate post-fill pressure feeds semi-solid regions during final solidification.

Clean vents and vacuum lines — Blocked vents are a common cause of end-of-fill misruns on otherwise mature tools.

Shot weight control — Cold-chamber programs need consistent ladling; under-filled shots always short.

---

Misrun vs Porosity and Blister Programs

Misrun is a fill problem. Gas porosity is a trapped gas problem. Fixing misrun with higher velocity can increase porosity — parameters must be optimized together.

Parts destined for T6 heat treatment cannot tolerate high subsurface porosity; if misrun fixes increase turbulence, consider vacuum-assisted HPDC or low-pressure die casting for large structural sections that need heat treat without blistering.

---
