Die Casting for LED Lighting -Thermal Performance, IP Protection, and Outdoor Durability

The LED lighting industry is one of the most demanding -and most consistent -markets for aluminum die casting. Every LED fixture above approximately 20W requires a heat sink housing to maintain LED junction temperatures below 85°C, the threshold above which lumen output degrades and service life shortens. For streetlights, high-bay industrial lights, architectural floodlights, and stadium fixtures operating at 100-200W, the thermal management requirement is substantial, and the housing must simultaneously provide structural support, weatherproof sealing, and a service life exceeding 50,000 hours (5+ years of continuous outdoor operation).

KastMfg has produced aluminum die cast LED lighting components for over 15 years, with deep expertise in the thermal design, surface finishing, and quality requirements specific to lighting applications. Our LED lighting customers range from streetlight OEMs supplying municipal infrastructure to architectural lighting specialists producing premium outdoor fixtures for commercial buildings.

---

Why Aluminum Die Casting Dominates LED Lighting

Every major design requirement for an outdoor LED fixture points toward aluminum die casting:

Thermal conductivity: LED efficiency and lifespan depend on keeping junction temperature below 85°C. The housing must conduct heat from the LED board to the ambient air as efficiently as possible. Aluminum's thermal conductivity (96-113 W/m·K depending on alloy) is the highest of any practical structural die casting material. Alternative enclosure materials -sheet steel, plastic, extrusions -either have lower thermal conductivity or cannot produce the fin geometry required for effective natural convection cooling.

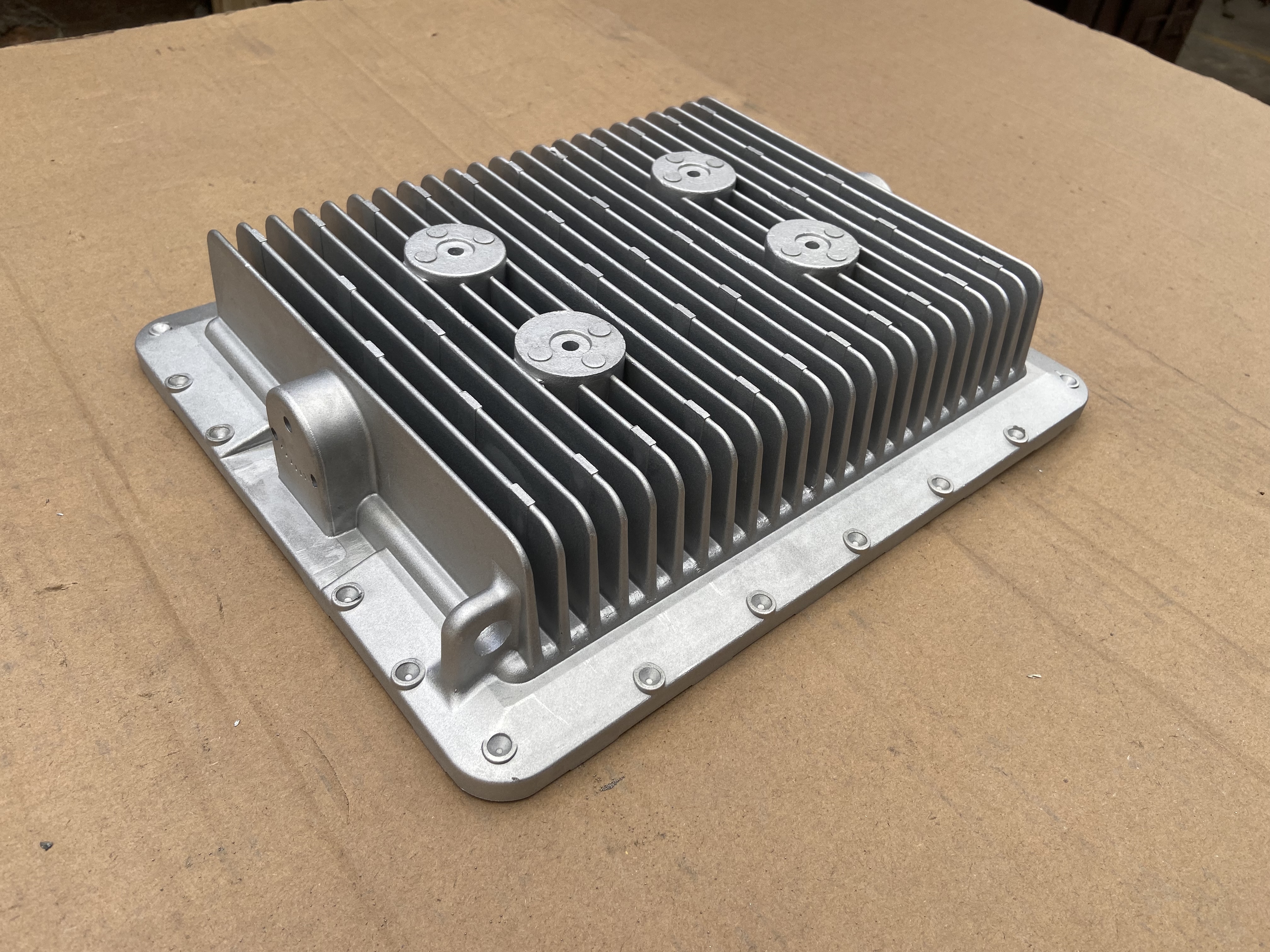

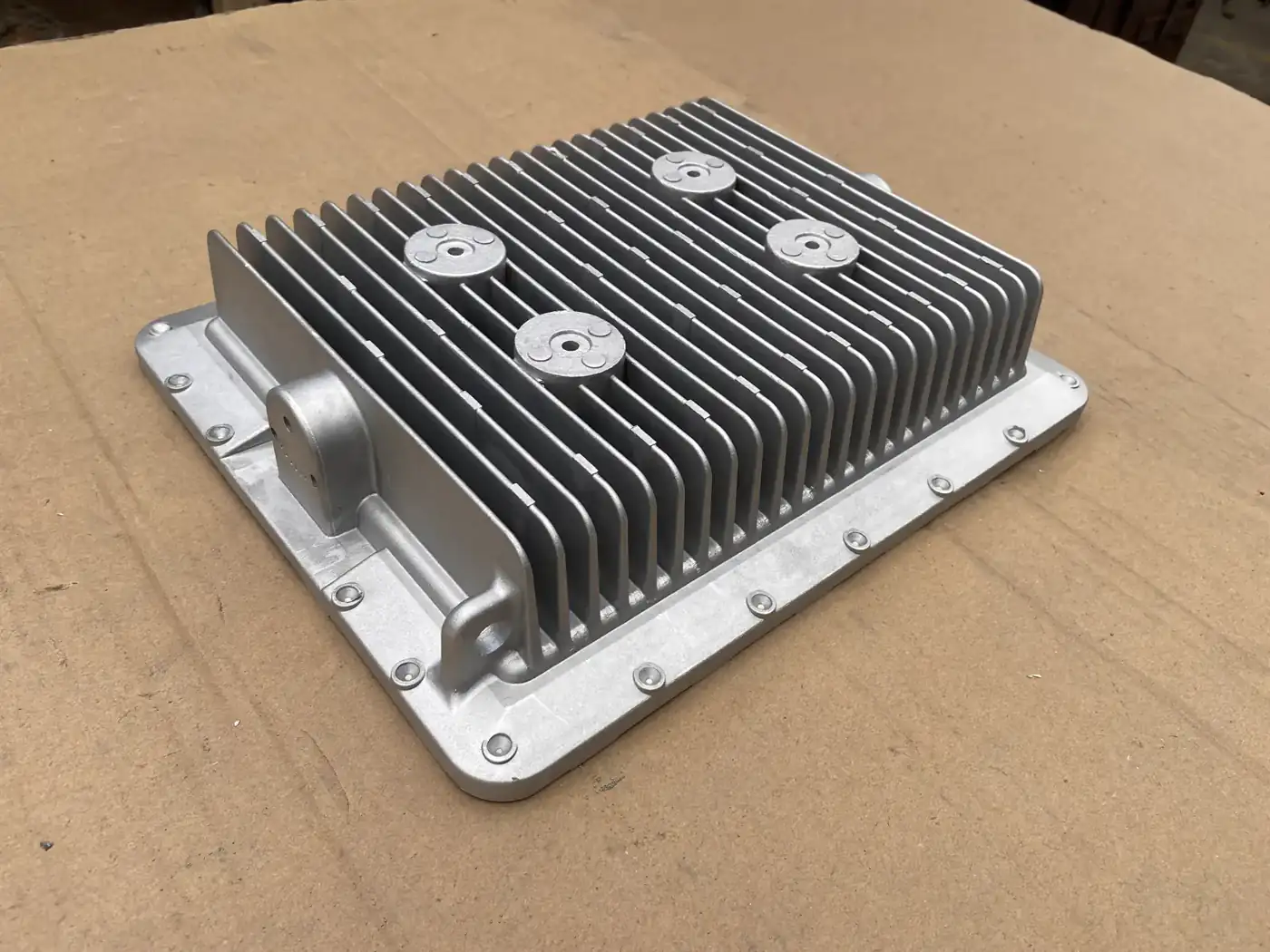

Complex fin geometry in a single operation: Die casting produces the complete heat sink geometry -fins, base plate, mounting bosses, cable entry provisions, driver housing integration -in a single casting cycle. No welding, no assembly, no secondary bonding of fins to a base. The geometric complexity that makes die casting economical for heat sinks is impossible to achieve by other mass-production methods.

Weatherproof structural capability: An outdoor LED fixture must seal against rain, dust, insects, and condensation (IP65 or higher) while supporting the LED board, driver electronics, optics, and glass or polycarbonate diffuser. Die casting integrates all structural and housing functions in a single component, replacing multi-piece sheet metal and plastic assemblies.

Surface finishing compatibility: Powder coating over aluminum die casting provides the color, UV resistance, and corrosion protection required for outdoor fixtures -applied as a single operation after casting and machining.

---

Thermal Design for LED Housings

The thermal performance of an LED fixture is largely determined during the die casting design phase. KastMfg works with customers during DFM review to optimize the casting geometry for thermal performance, not just castability.

Fin Design Optimization

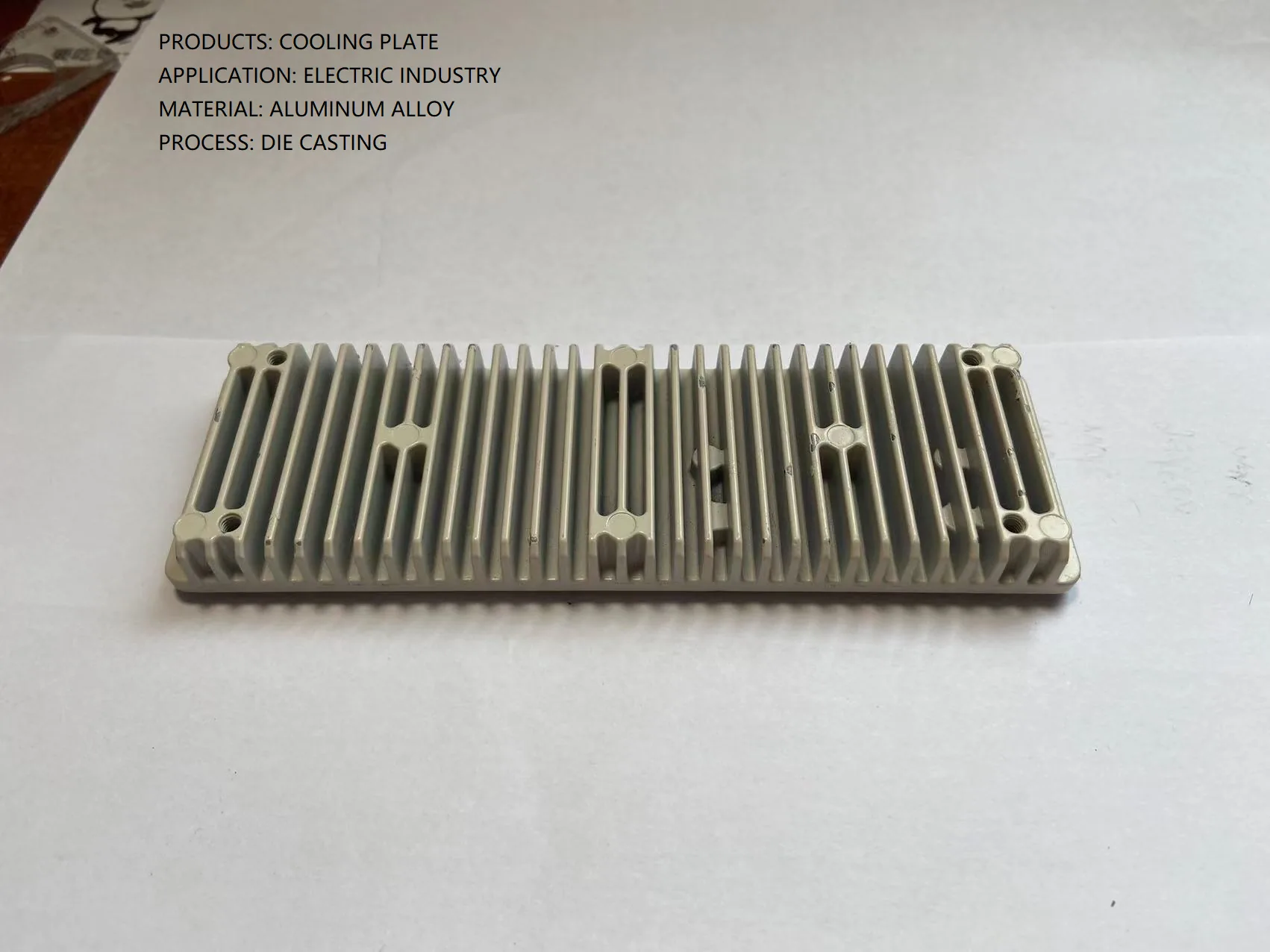

Aluminum heat sink fins work by maximizing the surface area in contact with ambient air. Natural convection (passive, no fan) cooling -standard for most outdoor LED fixtures -creates airflow along vertical or inclined fin surfaces. The key fin geometry parameters:

Fin height: Taller fins provide more surface area but have diminishing returns above approximately 40-50 mm for natural convection (the boundary layer thickens, reducing local heat transfer coefficient). For forced air cooling, taller fins with closer spacing are beneficial.

Fin spacing: Narrower spacing increases fin count and surface area but reduces the effective convection channel. The optimal fin spacing for natural convection is typically 5- mm. Closer spacing can actually reduce total heat dissipation by restricting airflow.

Fin thickness and draft: Die cast fins require draft angles of 1.5-° per face for clean ejection. KastMfg designs fins with the minimum draft consistent with reliable ejection -preserving maximum surface area while ensuring die life and dimensional consistency.

Fin orientation: Vertical fins oriented parallel to the prevailing airflow direction perform best for natural convection. Horizontal fins trap hot air below them. KastMfg advises on fin orientation during DFM review for fixtures where the mounting orientation affects airflow.

Base Plate Flatness for LED Board Mounting

The interface between the LED board and the casting base plate is the highest thermal resistance point in the system. Air gaps at this interface -caused by base plate non-flatness -dramatically reduce heat transfer efficiency. KastMfg machines all LED board mounting surfaces to 0.02-0.03 mm flatness, confirmed by CMM. Combined with thermal interface material (TIM) applied during assembly, this ensures consistent, low-resistance thermal contact across the board mounting area.

Alloy Selection for Thermal Performance

Alloy	Thermal Conductivity	Corrosion Resistance	Best Application
A380	96 W/m·K	Good	Indoor fixtures, protected outdoor
A360	113 W/m·K	Excellent	Outdoor, coastal, high-humidity
A413	121 W/m·K	Good	Maximum thermal performance required

For most LED lighting applications, A360 provides the best balance -18% higher thermal conductivity than A380 with significantly better outdoor corrosion resistance. KastMfg's recommendation for any outdoor LED fixture is A360 rather than A380 unless cost constraints make A380 necessary (with appropriate coating system).

---

Outdoor Durability and IP Protection

Outdoor LED lighting operates in environments that expose the fixture to rain, salt air, dust, UV radiation, thermal cycling, and in some regions, insect intrusion. Fixture service life specifications of 50,000 hours require materials and coatings that remain protective over 5-10 years of continuous outdoor service.

IP Rating Requirements for LED Fixtures

Application	Typical IP Rating	Key Requirement
Streetlights	IP65 or IP66	Water jet and dust protection
Outdoor floodlights	IP65	Water jet resistance from any direction
High-bay industrial	IP65	Dust-tight, hose-down resistant
Underwater/fountain	IP68	Sustained immersion
Tunnel lighting	IP66 or IP67	High-pressure wash resistance

Achieving IP65/IP66 on die cast LED housings requires:

Porosity-free casting walls: Through-porosity in the casting wall creates leak paths invisible to visual inspection but detectable under pressure test. KastMfg's standard HPDC process with A380 or A360 achieves reliable IP65 sealing on LED fixture housings. For IP67/IP68 requirements, vacuum-assisted casting or A413 alloy with verified porosity levels is specified.

Precision-machined O-ring grooves: Cover plate sealing requires O-ring grooves machined to correct width, depth, and cross-section for the specified O-ring. KastMfg machines O-ring grooves per drawing specification with CMM verification.

Cable entry sealing: Cable glands, conduit entries, and connector mounting provisions must seal to the same IP level as the main enclosure. KastMfg casts and machines cable entry bosses with thread dimensions and surface finish suitable for IP-rated cable glands.

Corrosion Protection -Coating Systems for LED Fixtures

Standard outdoor fixtures (inland, non-coastal): Shot blast + chromate conversion (Alodine) + powder coat 60-70 μm. This system provides 500+ hours salt spray resistance per ISO 9227 and 10-year outdoor service life in continental climates.

Coastal and marine environments: Shot blast + e-coat 15-20 μm epoxy primer + powder coat 60-70 μm, OR shot blast + two-pack liquid primer + two-pack polyurethane topcoat. The e-coat or two-pack primer provides barrier protection under the topcoat. Suitable for locations within 1 km of the sea or in industrial chloride environments.

High-corrosion environments (chemical plant, salt water spray): A360 alloy (inherently better corrosion resistance) + e-coat + powder coat with additional chemical-resistant topcoat. For extreme environments, discuss requirements during DFM.

---

LED Fixture Types Produced at KastMfg

Streetlight and Roadway Lighting

Streetlight housings are among the largest and most complex LED die casting applications. A typical 150W streetlight housing spans 400-500 mm in length, weighs 2- kg, and integrates:

• Finned upper surface for heat dissipation from LED board
• Enclosed lower chamber for LED driver/power supply
• Optical chamber for LED array and secondary optics
• Mounting arm integration and leveling adjustment provision
• IK rating (impact protection) requirement for traffic pole mounting

KastMfg produces streetlight housings on machines from 630T to 1,600T depending on size. The housing is cast in A360 or A380, CNC machined at LED board mounting surface and optical chamber datum features, then powder coated in standard traffic equipment colors (RAL 7035 light gray, RAL 9005 black, or custom).

High-Bay Industrial and Commercial Lighting

High-bay LED fixtures for warehouses, logistics centers, factories, and sports facilities operate at 100-200W with fin-cooled or liquid-assisted cooling:

Passive fin-cooled high-bay (100-200W): Aluminum fin housing with circular or square base plate, external fin array, and integrated driver housing. Typical size 250-300 mm diameter or across. KastMfg produces these in A360 on 400T-00T machines.

Active liquid-cooled high-bay (200-300W): Larger fixtures with integrated liquid cooling circuit in the base casting. A413 for pressure tightness and thermal conductivity; VADC for coolant circuit integrity. KastMfg produces the complete housing including CNC-machined internal coolant passages.

Floodlights and Architectural Lighting

Outdoor floodlights for building facades, parking areas, sports venues, and architectural accent lighting:

• Compact floodlights (20-100W): 150-200 mm housing, natural convection cooling, IP65
• Medium floodlights (100-200W): 300-400 mm, fin array, IP65/IP66
• Stadium/sports lighting (400W+): 500-600 mm, liquid-cooled, IP66

Architectural lighting often has cosmetic requirements beyond standard industrial fixtures -consistent texture, precise color matching (RAL or custom), and visible surface quality. KastMfg's powder coating capability includes texture matching and color-batch consistency for architectural programs.

Tunnel and Underground Lighting

Tunnel lighting fixtures face exceptional demands: constant high-humidity, vehicle exhaust chemistry, cleaning with high-pressure steam or chemical solutions (IP66 or IP69K required), vibration from passing vehicles, and access intervals of 3- years.

KastMfg produces tunnel lighting housings in A360 with e-coat primer and polyurethane topcoat for maximum chemical resistance. IP66 sealing is standard; IP69K is achievable with modified O-ring groove design verified by high-pressure water jet testing.

---

Secondary Operations for LED Lighting Components

CNC machining: LED board mounting surfaces (flatness to 0.02 mm), driver housing mounting features, optical chamber datum surfaces, hinge and fastener provisions.

Drilling and tapping: Mounting hole patterns for LED boards, driver mounting hardware, glass or diffuser retention, conduit entry provisions.

Surface finishing: Shot blasting (standard preparation), powder coating (full RAL range, gloss/semi-gloss/matte/textured), anodizing (for natural aluminum appearance applications), e-coat (coastal corrosion protection).

Assembly: LED board and driver installation, optics fitting, glass or polycarbonate diffuser installation, and fully assembled fixture testing available for customers requiring complete luminaire supply.

---

Quality Standards for LED Lighting

IEC 60598: International standard for luminaire construction, safety, and testing. KastMfg's housing dimensional accuracy and sealing provisions support customers' IEC 60598 compliance testing.

IP testing: First-article IP testing in-house using water spray and immersion equipment. Production IP verification by air decay pressure test.

Thermal resistance testing: Measurement of thermal resistance from LED board mounting surface to ambient on first-article samples. Data provided to customers for thermal system validation.

Salt spray testing: Periodic coating system qualification per ISO 9227. KastMfg maintains current salt spray test data for standard coating systems used on LED fixture programs.

---

Frequently Asked Questions

What alloy should I use for an outdoor LED streetlight in a coastal city?

A360 aluminum with e-coat primer and powder coating. A360's low copper content (0.6% max) provides significantly better corrosion resistance than A380 in salt air environments. The e-coat primer adds an additional barrier layer under the powder coat, protecting the aluminum if the topcoat is scratched or chipped during installation. This system provides reliable service life of 10+ years within 500 meters of the sea.

Can you produce LED housings with integral liquid cooling circuits?

Yes. KastMfg produces aluminum die cast LED housings with integral liquid cooling channels using A413 alloy with vacuum-assisted die casting for porosity control. Coolant channels are CNC-machined after casting to final dimensions, and 100% pressure tested to the customer's cooling system specification. Sealing provisions (O-ring grooves, face flatness) for coolant fittings are machined to drawing specification.

What is the typical wall thickness for an LED streetlight housing?

Typical LED streetlight housing walls are 2.5- mm, with fin walls 1.5-2.5 mm. The base plate at the LED board mounting area is typically 4- mm for structural rigidity and thermal spreading. KastMfg's DFM review evaluates wall thickness uniformity and recommends adjustments to minimize porosity risk while maintaining thermal and structural performance.

---
