Die Casting for Power Tools and Appliances

Power tools and home appliances represent two of die casting's highest-volume consumer-facing markets. They share common requirements -structural integrity, thermal management, weight optimization, and cost pressure from global competition -but differ significantly in complexity, quality standards, and the types of die casting expertise required.

---

Power Tools -Engineering the Housingfor Performance

A power tool housing does three things simultaneously: it holds the mechanism together under operating loads (structural), dissipates motor heat (thermal), and protects the user from internal components while keeping the tool manageable to hold (ergonomic). Die cast aluminum achieves all three in a single component that machined or stamped alternatives cannot match economically.

Gearbox and Transmission Housings

Power tool gearboxes operate at high rotational speeds (2,000-10,000 RPM) and under intermittent peak loading during fastening, drilling, and impact. Die cast gearbox housings must:

Maintain bearing bore alignment: Misaligned bearing bores increase gear noise, vibration, and bearing wear. KastMfg machines bearing bores in power tool gearboxes to H6/H7 tolerance in a single CNC setup, maintaining bore-to-bore concentricity and parallelism. The approach is identical to the industrial motor end shield process -same equipment, same tolerances, different application.

Resist impact loading: Power tools are regularly dropped from working height (1.5- meters, the IEC 60745 drop test requirement). A380 aluminum's combination of strength (317 MPa tensile) and ductility (3.5% elongation) absorbs impact energy without fracture. Wall thickness must be uniform -thin sections at stress concentrations fracture under drop impact. KastMfg's DFM review evaluates wall thickness uniformity and fillet radii at all potential fracture initiation points.

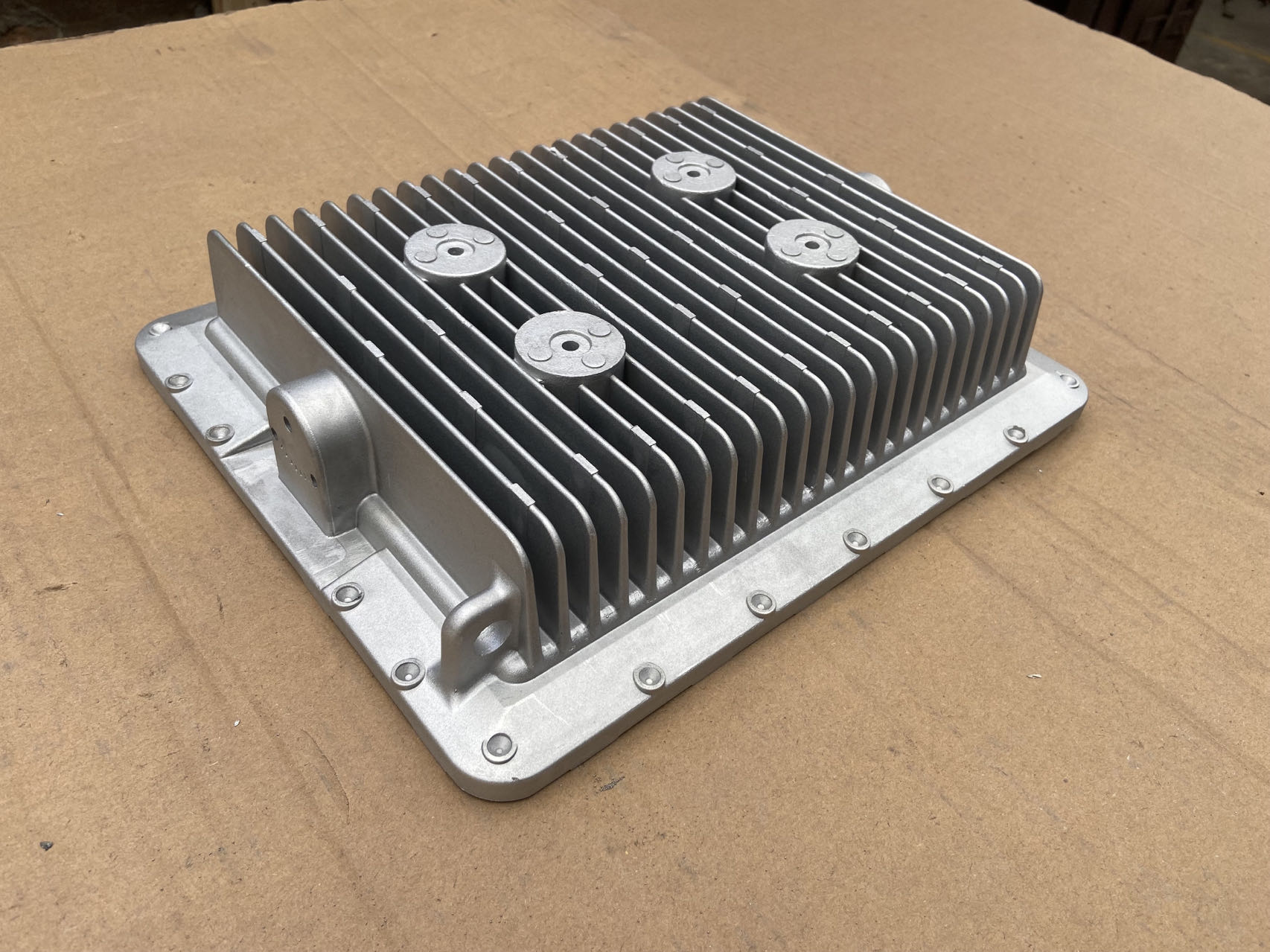

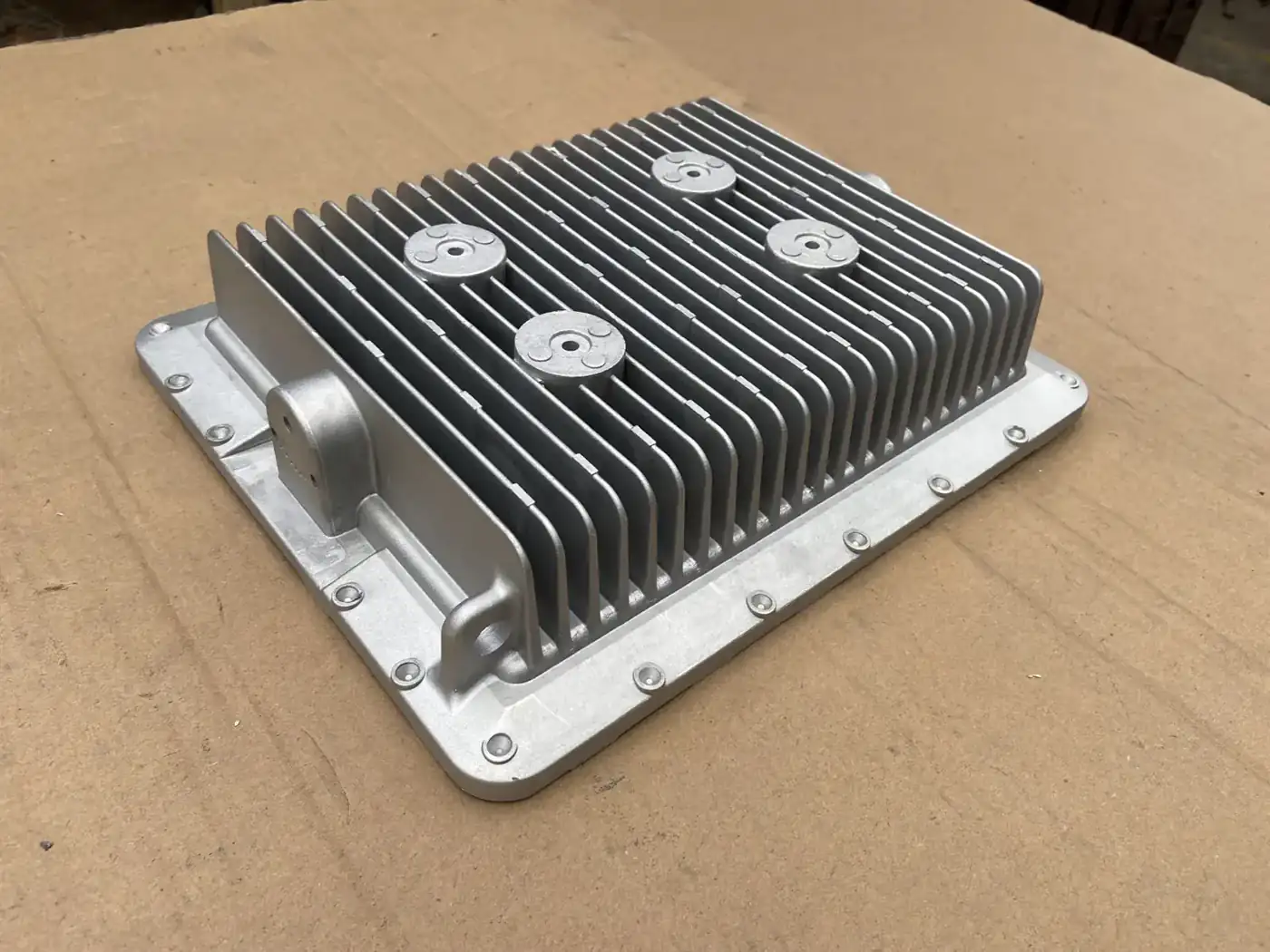

Conduct motor heat: At sustained high-speed operation, power tool motors generate heat that must conduct from the stator through the housing to the air. A360 aluminum (113 W/m·K) provides 18% better thermal conductivity than A380 (96 W/m·K) -relevant for premium tools with extended-duty design specifications.

Power Tool Parts at KastMfg

Tool Category	Die Cast Parts
Angle grinders	Gearhead and spindle housing, guard mount bracket
Circular saws	Gearbox housing, lower guard pivot bracket
Cordless drills/drivers	Transmission case, gearbox intermediate housing
Impact wrenches	Hammer housing, anvil bearing housing
Rotary hammers	Gear case, clutch cover, barrel housing
Jigsaws	Gearbox housing, orbital mechanism cover
Reciprocating saws	Drive housing, counterbalance cover
Sanders	Drive housing, pad brake cover
Air tools	Body housings, valve blocks (zinc)

Material Recommendations for Power Tools

Application	Alloy	Reason
Gearbox housings (general)	A380	Bearing bore machinability, strength, cost
Gearbox housings (premium/T5)	A380 + T5	+25-30% yield strength for high-torque tools
Motor housings (thermal-sensitive)	A360	Higher thermal conductivity, marine-resistant
Air tool valve bodies	Zamak 5	Thin walls, pressure tightness, high volume
Decorative trim caps	Zamak 3	Chrome plating, fine detail

---

Home Appliances -Volume, Consistency, and Fluid Handling

Home appliances add two requirements that power tools typically do not have: fluid contact (water, coolant, refrigerant) and the expectation of 10-15 year service life in a domestic environment. Material corrosion resistance and pressure tightness become primary considerations.

Washing Machine and Dishwasher

Wash pump and drain pump housings: Continuous-duty pumps in washing machines and dishwashers operate with heated water (up to 90°C) containing detergents, fabric conditioners, and descaling agents. A360 aluminum (low copper, better chemical resistance) is preferred over A380 for these housings. Shaft bore precision (H7 tolerance) ensures impeller clearance is consistent across production, maintaining pump efficiency over the appliance's service life.

Motor end shields: The drum drive motor, pump motors, and fan motors in washers and dishwashers use die cast aluminum end shields. At 1- million pieces per year across global appliance production, these are among the highest-volume die casting programs globally. KastMfg produces end shields to IEC frame specifications with consistent bearing bore tolerances and CMM verification on every first article.

HVAC and Refrigeration

Compressor housings and valve plates: Refrigeration compressors operating with R134a, R1234yf, or CO2refrigerant require housings with verified pressure tightness and long-term refrigerant compatibility. KastMfg specifies A413 for valve plates (near-eutectic composition, best pressure tightness) and ADC12 for compressor crankcases (proven refrigerant compatibility, excellent machinability for shaft bore and port machining).

Fan motor housings: HVAC air handling unit fan motors use die cast aluminum housings in volumes of hundreds of thousands per year. Standard A380 with powder coating for outdoor units; A360 for coastal HVAC installations.

Heat exchanger end caps: Aluminum die cast end caps for fin-and-tube heat exchangers seal the refrigerant circuit. Pressure tightness at 25-30 bar refrigerant operating pressure. A413 + VPI impregnation for standard programs; A413 + VADC for programs specifying no impregnation.

Small Appliances

Coffee machines and espresso makers: Boiler housings, pump bodies, and brewing group components in aluminum. A413 for boiler housings (steam pressure 1- bar, but consistent food-contact requirement). Zamak 5 for decorative exterior trim and mechanism components.

Vacuum cleaners: Motor housing, impeller housing, and dust bag assembly in aluminum. A380 standard. Weight is a user experience factor -KastMfg's DFM review examines rib optimization for maximum stiffness at minimum wall thickness on handheld and upright vacuum programs.

Blenders and food processors: Motor housings, coupling bodies, and blade assembly components. A380 standard. Blade coupling tolerances are tight -shaft bore diameter and concentricity affect blade balance and vibration. CMM verification on these features is standard.

---

Quality Standards for Power Tool and Appliance Programs

IEC 60745 (power tools): Construction and test standard for portable power tools. KastMfg's housing dimensional accuracy and structural integrity support customers' IEC 60745 certification testing, including the drop impact test (1.5 m onto hard surface, 6 faces).

IEC 60335 (household appliances): Safety standard for household appliances. Relevant requirements: protective earthing continuity (verified by casting geometry and grounding connection provisions), creepage and clearance distances (relevant for motor housing insulation geometry), thermal endurance (material performance at rated temperature for 20,000+ hours).

ISO 9001:2015: KastMfg's quality management system standard. For appliance programs requiring traceability back to specific production batches (useful in the event of a field recall), KastMfg's batch traceability system links every shipped part to the production melt, process parameters, and inspection records.

---

Volume and Economic Model

Power tool and appliance programs are typically medium-to-high volume: 50,000-1,000,000 pieces per year depending on the tool or appliance's market position. At these volumes:

• Multi-cavity tooling is economically justified and should be designed in from the start
• H13 production tooling (not P20 prototype) is standard
• Process capability (Cpk >=1.33 on critical dimensions) is achievable and expected
• Annual tooling maintenance cost should be budgeted -not treated as unexpected expense

KastMfg provides tooling maintenance scheduling as part of program management. Customers receive advance notice when a die approaches its maintenance interval, with cost estimate and schedule impact, before any unplanned production interruption occurs.

---
