KastMfg Manufacturing Facility -Nanjing, China

KastMfg's manufacturing facility is located at No.6, Rungu Road, Nanjing, China -40 minutes by road from Nanjing Lukou International Airport (NKG). The 28,000 m² integrated facility houses every stage of production: tooling design and fabrication, high-pressure die casting, CNC machining, surface finishing, quality inspection, and shipping.

We welcome customer visits. Virtual factory tours via video call are available at any time by appointment. Contact yaoqingpu1983@gmail.com to schedule.

---

Facility Overview

Area	Size	Key Equipment
HPDC Casting Floor	8,500 m²	23 die casting machines, 80T-,600T
In-House Tooling Shop	4,500 m²	15 CNC machine tools, EDM, wire EDM
CNC Machining Center	5,200 m²	18 machining centers, 3-axis through 5-axis
Surface Finishing	3,800 m²	Shot blast, powder coat, anodize, e-coat
Quality Laboratory	1,200 m²	CMM, X-ray, OES spectrometer, pressure test
Warehousing & Shipping	4,800 m²	Finished goods, packaging, export logistics

---

The HPDC Casting Floor

KastMfg operates 23 die casting machines across two shifts, six days per week.

Cold-chamber machines (aluminum and magnesium):

• 160T, 250T, 400T, 630T, 800T, 1,000T, 1,600T
• All machines equipped with shot monitoring (velocity, pressure, temperature logged every shot)
• Dedicated VADC (vacuum-assisted) machines for T6 and pressure-tight programs
• Robot ladle systems on machines 400T and above
• Robot die spray systems on all machines

Hot-chamber machines (zinc):

• 80T, 160T, 250T, 400T
• Dedicated machines per alloy (Zamak 3, Zamak 5) -no cross-contamination
• SF6/CO2gas protection on magnesium cells
• Automated trim presses adjacent to casting machines on high-volume programs

Melt furnaces:

• Separate holding furnaces per alloy
• Rotary degassing (nitrogen/argon) standard on all aluminum melts
• OES spectrometer chemistry verification on every melt before production

---

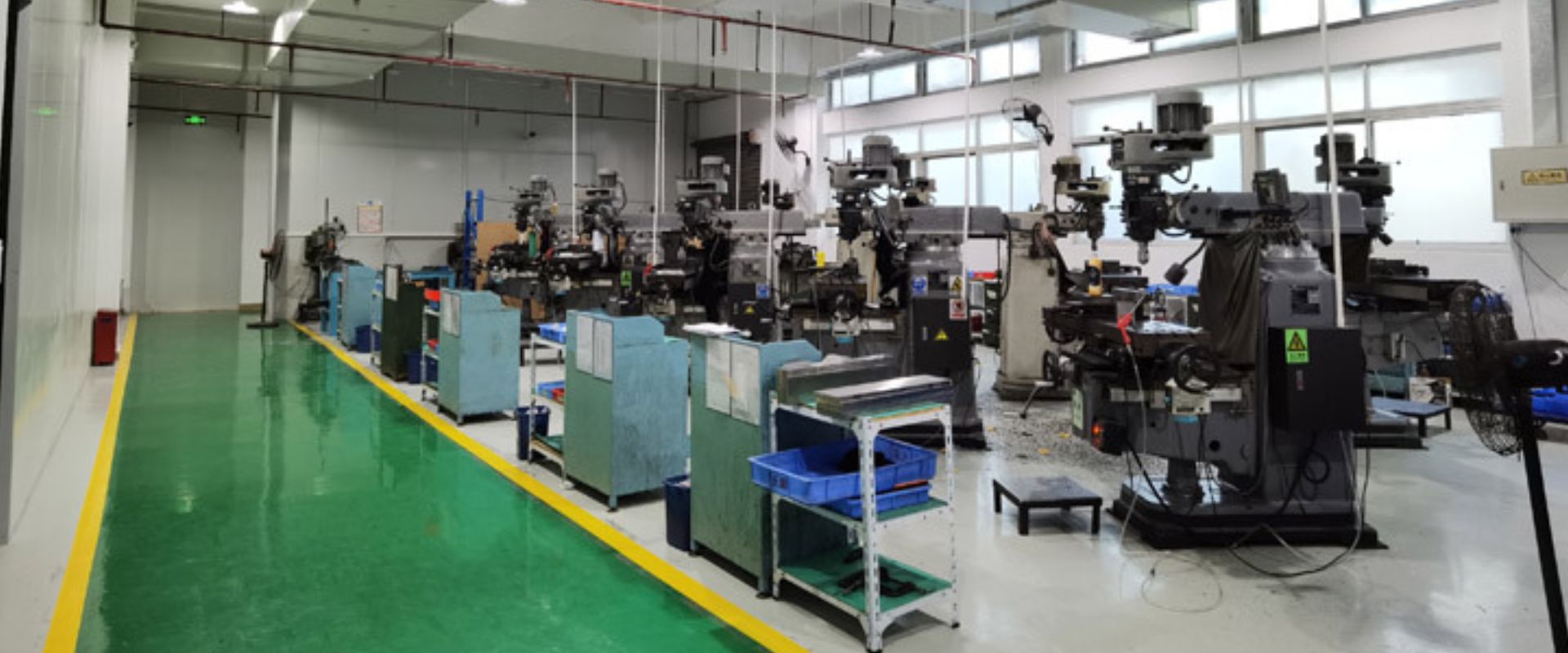

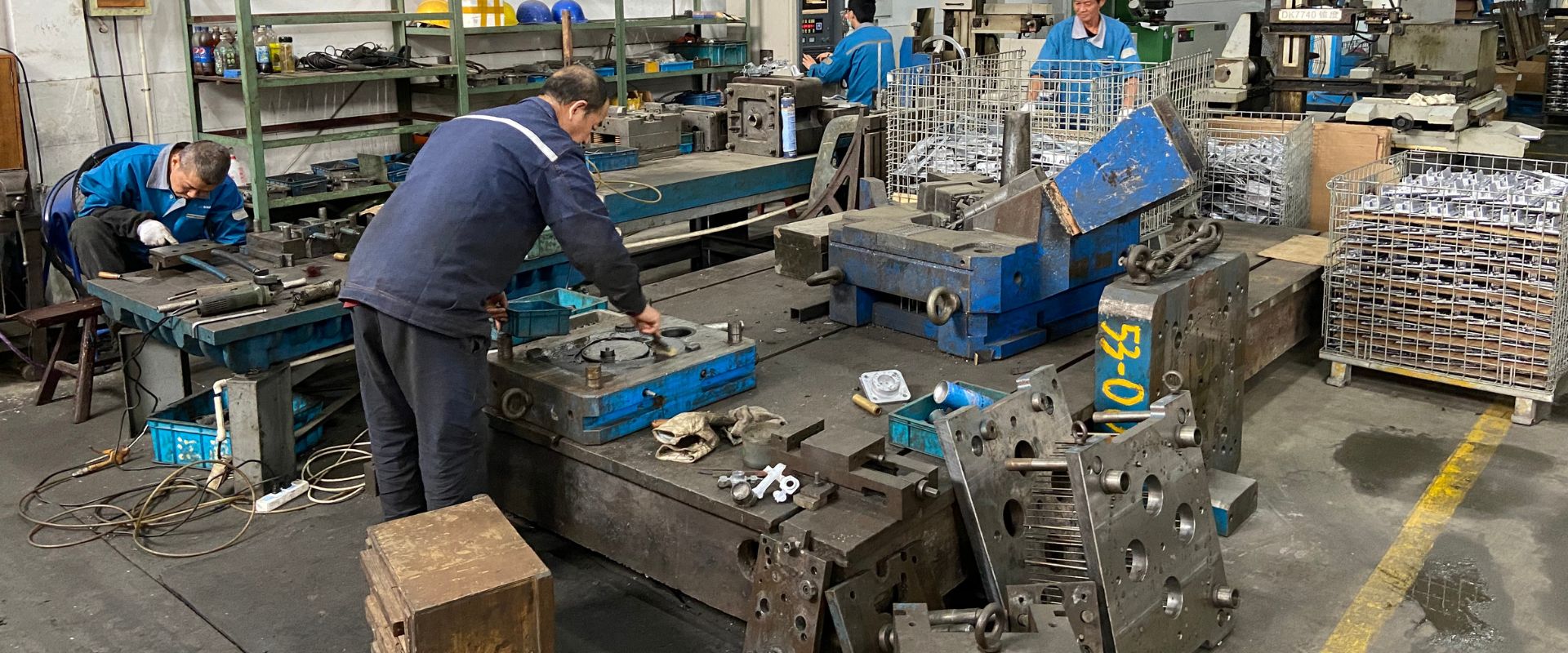

In-House Tooling Shop

KastMfg designs and fabricates all production and prototype tooling in-house. No subcontracting.

The 4,500 m² tool shop houses:

• 8 CNC vertical machining centers (VMC), up to 1,200 x 800 mm table
• 3 CNC EDM (spark erosion) machines -complex cavity and core geometry
• 2 CNC wire EDM machines -precision insert cutting in hardened H13 steel
• 2 deep-hole drilling machines -cooling channels to 1,500 mm depth
• 2 CNC lathes -ejector pins, cores, round components
• 2 surface grinders -parting face flatness to 0.005 mm
• Dedicated CMM for die component verification before assembly
• CAD/CAM workstations: UG (NX), SolidWorks, Moldflow simulation

Every new production die undergoes mold flow simulation before steel is cut. Tooling design reviews (3D model) are submitted to customers for approval before machining begins.

---

CNC Machining Center

KastMfg's 5,200 m² machining center provides complete post-casting machining without part ever leaving the facility.

• 12 three-axis vertical machining centers (VMC)
• 4 four-axis machining centers with rotary table
• 2 five-axis simultaneous machining centers
• 4 horizontal machining centers (HMC) for gearbox and motor housing bearing bore programs
• Dedicated boring machines for bearing bores to H6 tolerance
• CNC lathes for shaft bore turning and thread cutting
• Robotic deburring station for high-volume programs

Machining capacity: approximately 250,000 machining operations per month across all machines, two-shift operation.

---

Surface Finishing

KastMfg's surface finishing area provides all standard industrial and decorative finishes in-house:

Mechanical preparation:

• Shot blasting: multiple blasting rooms for aluminum and zinc (segregated)
• Vibratory finishing: barrel tumbling for zinc hardware pre-plating preparation

Chemical and electrochemical finishing:

• Type II anodizing: sulfuric acid anodizing lines for clear and colored aluminum
• Type III hard anodizing: low-temperature, high-current anodizing for wear-resistant applications
• Chromate conversion coating (Alodine/Iridite): trivalent chromate only (RoHS compliant)
• E-coating (cathodic epoxy): full-coverage corrosion primer for complex internal surfaces

Paint and powder:

• Powder coating booths: electrostatic spray, 180-200°C cure ovens
• Full RAL and Pantone color range
• Liquid paint capability for specific programs

---

Quality Laboratory

KastMfg's dedicated quality laboratory operates independently from production, reporting to the Quality Director.

Dimensional inspection:

• Hexagon Global Performance CMM (large capacity)
• Zeiss Contura CMM (precision work)
• 2.5D vision measurement system
• Optical profile projector

Material analysis:

• OES spectrometer (optical emission): dedicated aluminum unit + dedicated zinc/magnesium unit
• Universal tensile testing machine (100 kN)
• Rockwell and Brinell hardness testers

Internal soundness:

• Digital X-ray (radiography) system: ASTM E505 classification
• Industrial CT scanner: volumetric porosity mapping

Pressure and leak testing:

• Air decay test stations: up to 200 bar
• Nitrogen high-pressure test station: up to 350 bar
• Helium mass spectrometer: <10^-8 mbar·L/s sensitivity

Coating inspection:

• Eddy current and magnetic induction coating thickness gauges
• Contact profilometer (surface roughness)
• Salt spray chamber (ISO 9227): 400-liter capacity

---

Location and Access

Address: No.6, Rungu Road, Nanjing, Jiangsu Province, China 211100

Airport: Nanjing Lukou International Airport (NKG) -approximately 40 km, 35-45 minutes by road

Direct flights to NKG from:

• Beijing (PEK/PKX): 2 hours
• Shanghai (PVG): 45 minutes
• Guangzhou (CAN): 2 hours 15 minutes
• Hong Kong (HKG): 2 hours 30 minutes
• International connections via PVG, PEK

Accommodation: Multiple business hotels within 15 km of the facility. KastMfg's liaison team assists with hotel recommendations and airport transfer arrangements for visiting customers.

---

Scheduling a Visit

Customer visits are welcomed at any time with advance notice. KastMfg arranges:

• Factory floor access with safety equipment provided
• Technical meeting room for program review and DFM discussion
• Interpretation services (English, German, Japanese available)
• NDA execution before visit if required

Virtual factory tour: Video-call facility walkthrough available for customers unable to travel. Typically 60-70 minutes covering all production areas.

To schedule a visit or virtual tour: contact yaoqingpu1983@gmail.com or WhatsApp +86 138 1403 4409.

---
