Automotive Die Casting -Powertrain, EV, Chassis & Structural Components

The automotive industry consumes more die casting than any other sector. A modern passenger vehicle contains 40-50 kg of aluminum die cast components, and that figure is rising rapidly as OEMs accelerate electrification and pursue aggressive mass reduction targets. Battery electric vehicles (BEVs) contain more aluminum die casting than equivalent ICE vehicles -motor housings, inverter enclosures, battery tray structural members, and onboard charger bodies are all new die casting applications introduced with electrification.

KastMfg has supplied automotive Tier 1 and Tier 2 customers for over 15 years. Our quality management system is structured to IATF 16949:2016 requirements, our PPAP capability covers Levels 1 through 5, and our engineering team has deep experience with the APQP process that governs program launch from concept through production approval.

---

Why Automotive Die Casting Is Different

Automotive die casting programs are distinguished from general industrial programs by four requirements that apply consistently across every OEM and every program:

IATF 16949 quality management. The automotive industry's quality standard requires not just a documented quality system, but specific tools: APQP (Advanced Product Quality Planning), PFMEA (Process Failure Mode and Effects Analysis), Control Plans, MSA (Measurement System Analysis), and SPC (Statistical Process Control) on all critical characteristics. KastMfg operates these tools as standard practice on all automotive programs, not as optional add-ons.

PPAP submission. Production Part Approval Process is the formal gate between development and production. Before any automotive casting goes into production, the supplier must demonstrate that the production process is capable of producing conforming parts. KastMfg's standard PPAP package covers all Level 3 elements; Level 4/5 packages are prepared for safety-critical components.

Zero-defect expectation. Automotive customers operate just-in-time supply chains. A defective batch that reaches the assembly line causes line stoppages that cost thousands of dollars per minute. KastMfg's quality system is designed around preventing defects at source -not finding them at outgoing inspection.

Long program life. An automotive program lasts 5-15 years. The tooling, process parameters, and supplier relationships established at launch must remain stable through the entire production life. KastMfg's program management processes are designed for this long-term consistency.

---

Automotive Parts We Manufacture

Powertrain -ICE and Hybrid

Component	Alloy	Key Requirements

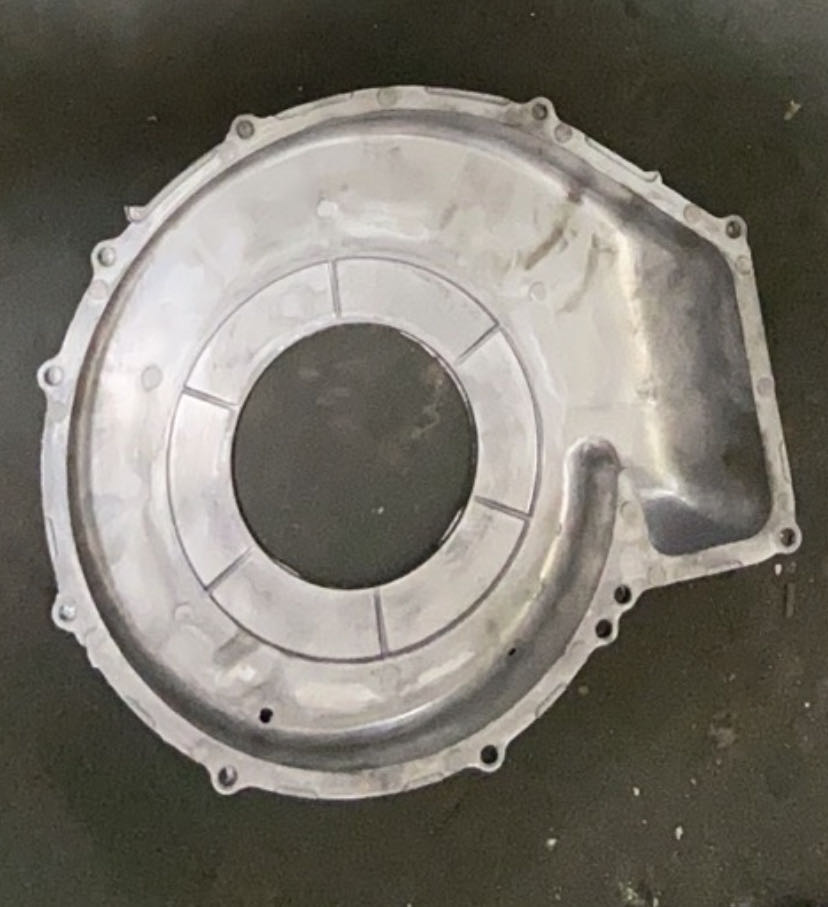

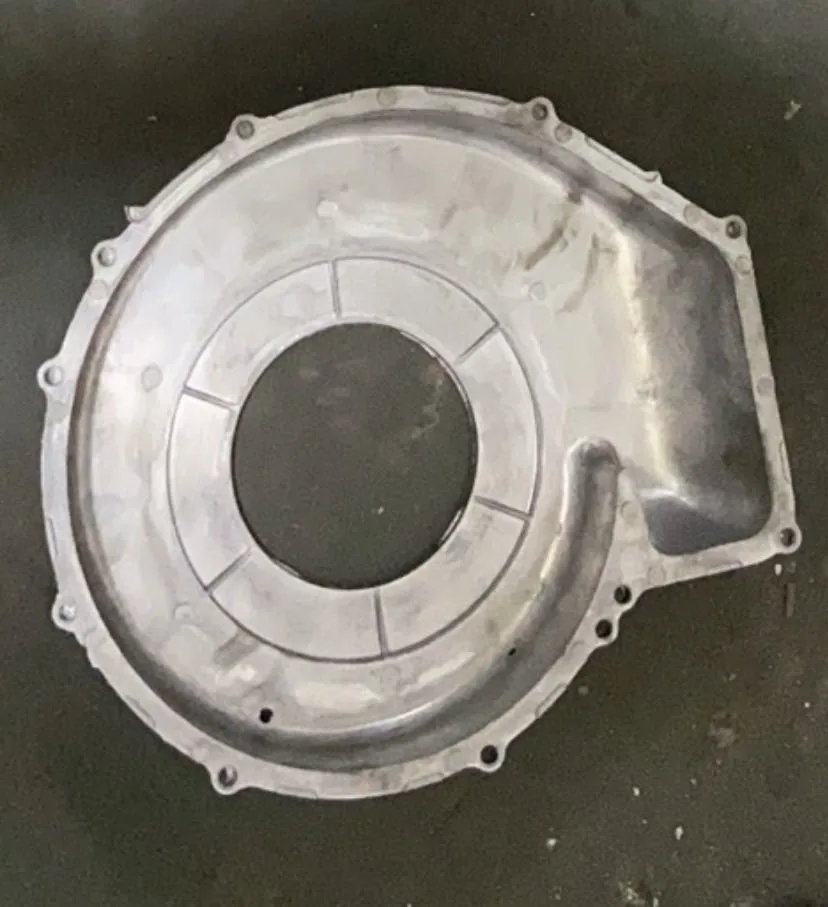

Gearbox and transmission housings	A380, ADC12	Bearing bore alignment, oil sealing, parting face flatness
Engine brackets and covers	A380, ADC12	Dimensional stability, NVH (vibration isolation)
Oil pump bodies	A413	Pressure tightness, bore precision
Water pump housings	A360	Corrosion resistance, thermal management
Turbocharger housings	A380 + T5	Elevated temperature strength
Timing covers and cam covers	A380, ADC12	Oil sealing, dimensional stability
Throttle body housings	ADC12	Bore precision, lightweight

EV and Hybrid Drivetrain

The electric powertrain has introduced new categories of die casting requirements that did not exist in ICE vehicles:

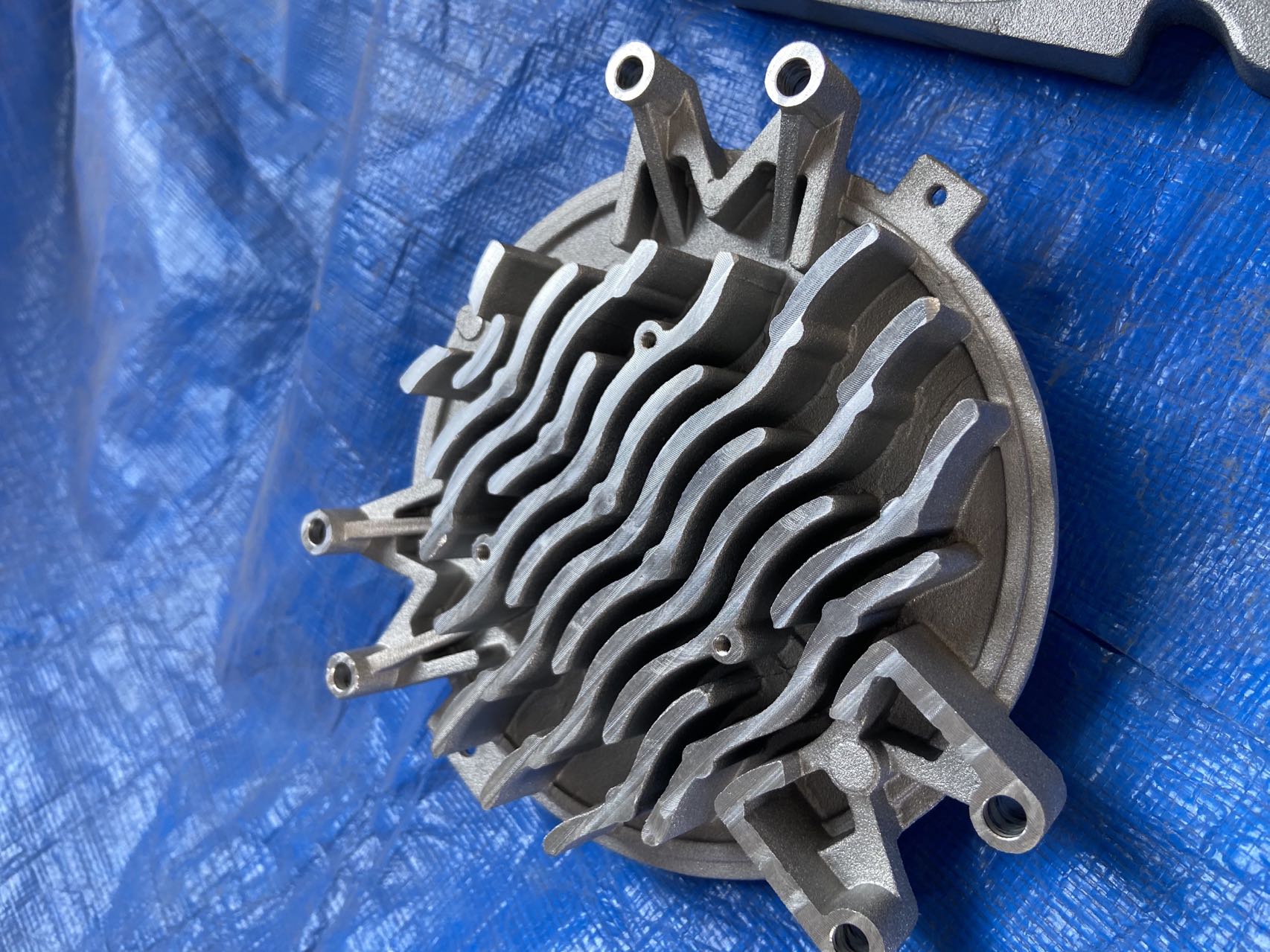

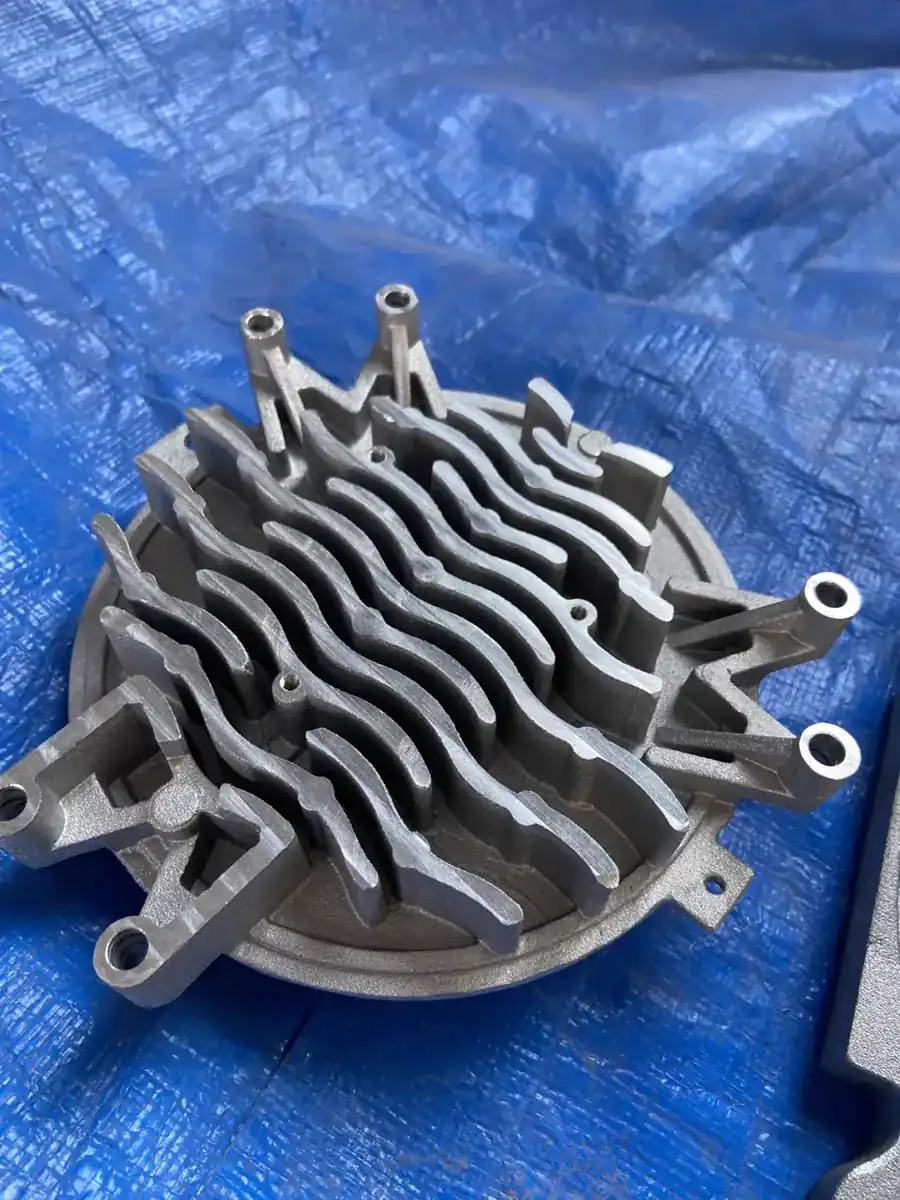

Electric motor housings: The motor housing in a BEV must conduct heat from the windings and stator to the coolant jacket (thermal), maintain bearing alignment over the motor's life (dimensional), seal the cooling circuit (pressure tightness), and provide EMI shielding for the stator (electromagnetic). A380 or ADC12 is standard for most EV motor housings; vacuum-assisted HPDC is used for housings with integral cooling circuits.

Inverter and power electronics housings: The inverter housing must seal the power module assembly (IP67 or IP69K), provide thermal management for the IGBT modules, and integrate high-voltage connector provisions. Wall thickness uniformity and void-free integrity at sealing flanges are critical.

Battery tray structural members: Large aluminum structural castings (up to 20 kg) produced on KastMfg's 1,000T and 1,600T machines. These components must meet crash safety requirements while minimizing mass -material yield strength and consistency are primary requirements.

Onboard charger (OBC) and DC-DC converter housings: Pressure-tight aluminum enclosures with internal cooling circuits and high-voltage connector integration. A413 or A380 with VADC depending on pressure requirements.

Chassis and Suspension

Die casting's dimensional precision and ability to produce complex thin-wall geometry make it increasingly common in chassis structural applications:

• Subframe nodes and brackets -structural castings at frame junction points
• Control arm brackets -suspension attachment points requiring tight bore and face tolerances
• Knuckle carriers -precision bore for wheel bearing, complex 3D geometry
• Damper towers -structural castings at strut mount locations

These parts require T6 heat treatment in most cases (for maximum yield strength) -only achievable with vacuum-assisted HPDC or low-pressure casting. KastMfg's VADC capability supports T6 requirements on suspension structural castings.

Interior and Body Structure

Instrument panel cross-car beams (CCB): The largest single die casting on most vehicles -spanning the full vehicle width (1,200-1,400 mm) and weighing 4- kg. Produced in A380 on KastMfg's 1,600T machine. Requires precise mounting hole patterns for steering column, HVAC, and airbag module attachment.

Seat frame components: Structural seat back frames and seat pan components where magnesium (AM60B for crash requirements) or aluminum (A380) replaces pressed steel.

Door structural components: Inner door panel structural frames, window regulator mounting brackets, door check arm housings.

---

Quality System for Automotive Programs

IATF 16949 Compliance

KastMfg's quality management system is structured to IATF 16949:2016 requirements. Our automotive-specific quality processes:

APQP (Advanced Product Quality Planning): Every new automotive program follows a structured launch process with defined milestones from customer drawing receipt through PPAP approval. Each milestone has documented deliverables -DFM review report, tooling design review, FAI plan, control plan, and PPAP submission package.

PFMEA (Process Failure Mode and Effects Analysis): A systematic analysis of every process step -alloy preparation, injection, cooling, ejection, trimming, machining, inspection -identifying potential failure modes, their causes, and the detection and prevention controls. PFMEA is a living document updated when process changes occur or new failure modes are identified.

Control Plan: Documents every process control parameter and inspection checkpoint, with measurement frequency, sample size, and response plan for out-of-control conditions.

MSA (Measurement System Analysis / Gage R&R): Verifies that measurement equipment and operators can reliably measure critical features. KastMfg performs Gage R&R studies on all measurement systems used for critical automotive dimensions before production start.

PPAP Capability

KastMfg supports PPAP Levels 1 through 5. Our standard Level 3 package:

PPAP Element	KastMfg Deliverable
Design documentation	Customer drawing with revision level
PFMEA	Process-specific PFMEA for the casting operation
Process flow diagram	Complete flow from ingot receipt to shipping
Control plan	All control characteristics with measurement specs
MSA / Gage R&R	Studies on all critical gauges
Dimensional results	100-piece measurement study, all drawing dimensions
Material performance	OES chemistry report; mechanical properties if required
Initial process capability	Cpk >=1.67 on all Special Characteristics
Qualified laboratory documentation	Calibration certificates for all measurement equipment
Part submission warrant (PSW)	Signed by KastMfg quality manager

For safety-critical components (brake, suspension, steering), additional elements including fatigue test results and pressure test qualification data are included.

Inspection and Testing for Automotive Castings

CMM inspection: Every automotive first article receives a 100% dimensional layout using Hexagon or Zeiss CMM equipment. Production SPC monitors critical dimensions throughout the run.

X-ray inspection: Porosity screening on castings with internal pressure integrity or structural requirements. Acceptance per ASTM E505 or customer reference radiographs.

Pressure and leak testing: 100% pressure test on all hydraulic and coolant circuit components. Test pressure, hold time, and decay limit per customer specification. Records archived by part serial number.

Mechanical property testing: Tensile and hardness testing on witness specimens cast with production batches for programs with mechanical property specification.

IMDS submission: KastMfg prepares and submits IMDS (International Material Data System) data for all alloys and surface treatments used in automotive programs.

---

EV-Specific Capabilities

Battery electric vehicles have introduced requirements that did not exist in ICE automotive die casting. KastMfg's capability for EV programs includes:

Large structural castings: 1,000T and 1,600T cold-chamber machines produce battery tray structural members and chassis nodes up to 20 kg. These programs require robust process control to maintain consistent wall thickness and dimensional stability across large projected areas.

Vacuum-assisted HPDC for T6 structures: BEV structural components increasingly specify T6 heat treatment for maximum yield strength -essential for crash performance targets. VADC reduces porosity to levels that allow T6 without blistering.

Leak testing to automotive sealing standards: Cooling circuit housings for EV powertrains require IP67/IP69K sealing integrity. KastMfg's pressure testing capability covers helium leak testing for the most demanding sealing requirements.

EMI-shielded enclosures: Inverter housings, BMS enclosures, and onboard charger bodies must provide EMI shielding to protect vehicle electronics. Die cast aluminum inherently provides >50 dB attenuation; KastMfg's machined mating surfaces and tight flange flatness (0.01-0.02 mm) ensure shield continuity after assembly.

---

Automotive Program Timeline

Phase	Duration	Deliverables
RFQ and DFM review	2- days	Quotation, DFM report
Tooling design review	1 week	Die design review with customer
Tooling fabrication	5- weeks	Progress reports at 50% and 90%
T1 trial and FAI	2 weeks	First article inspection report
PPAP submission	1- weeks	Full PPAP package per agreed level
PPAP approval by customer	Variable	Customer-controlled
Production launch	Per customer schedule	SPC-controlled production

---

Frequently Asked Questions

Can KastMfg hold IATF 16949 requirements for direct Tier 1 supply?

Yes. Our quality management system satisfies IATF 16949:2016 requirements for die casting production including APQP, PPAP, PFMEA, control plans, SPC, and MSA. We supply directly to Tier 1 automotive customers in Europe, North America, and Asia.

What is the largest automotive casting KastMfg can produce?

Our 1,600T cold-chamber machine accommodates aluminum castings up to 30 kg shot weight and approximately 2,000 cm² projected area. This covers most BEV battery tray components, chassis structural nodes, and interior cross-car structures. For parts beyond this range, we can discuss supply chain options.

Do you have experience with BEV / electric vehicle programs?

Yes. KastMfg has supplied motor housings, inverter enclosures, battery tray members, and OBC housings to BEV programs. Our vacuum-assisted HPDC capability supports the T6 heat treatment and pressure tightness requirements of EV structural and thermal management components.

How long does automotive tooling qualification take?

Tooling fabrication is typically 5- weeks depending on complexity. First article inspection, PPAP preparation, and customer approval typically add 4- weeks beyond tooling completion. Total time from PO to PPAP approval is typically 12-18 weeks for a standard single-cavity automotive program.

---
