Gas Porosity in Die Casting -Complete Guide

Gas porosity is the most common die casting defect -and the most misunderstood. It is often described simply as "holes in the casting," but the mechanism, distribution, size, and consequences of gas porosity differ fundamentally from shrinkage porosity. Understanding the distinction leads to the correct process intervention.

---

What Gas Porosity Is

Gas porosity consists of round or nearly round voids distributed throughout the casting cross-section. Under X-ray, they appear as bright round areas against a darker background. Under metallographic cross-section, they show smooth, spherical walls -distinct from the angular, dendritic walls of shrinkage porosity.

These voids contain compressed gas -primarily air entrapped during injection, plus hydrogen released from the aluminum melt.

---

How Gas Porosity Forms

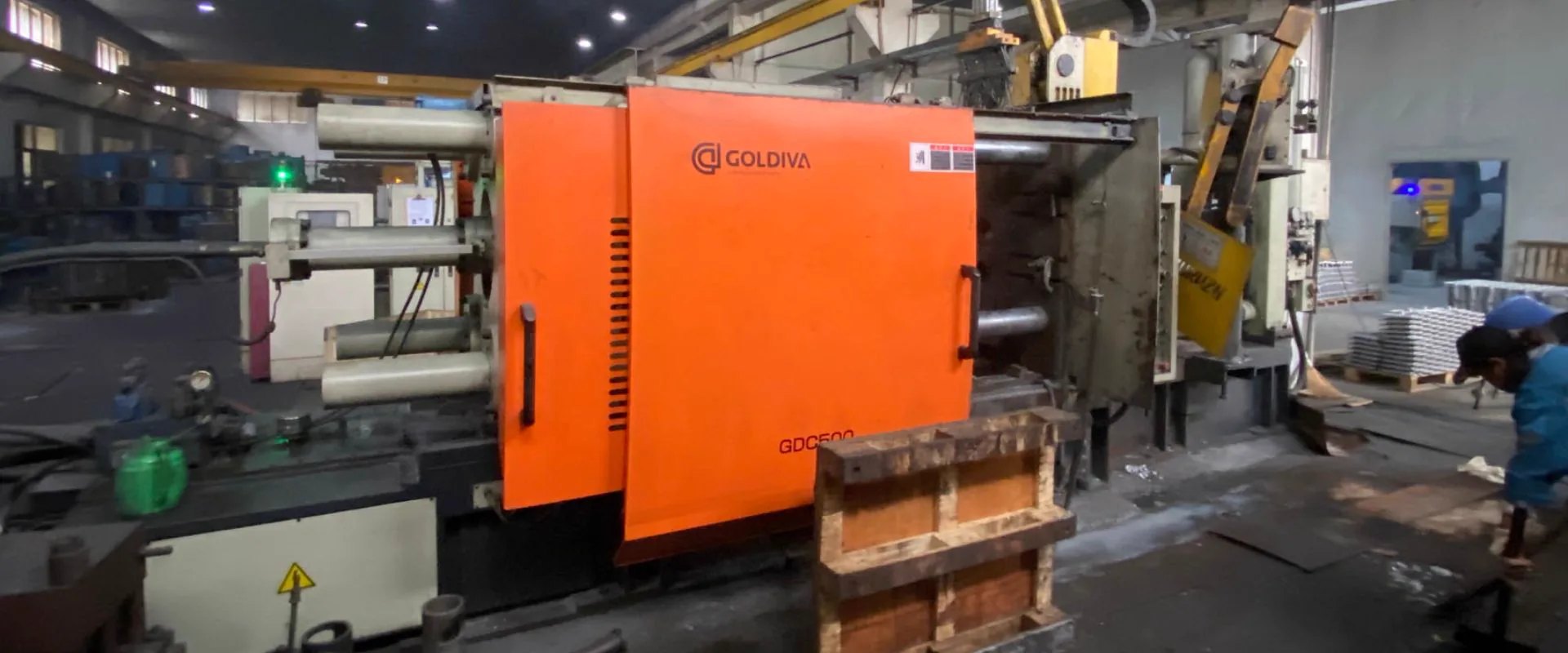

Air entrapment mechanism: Standard HPDC injects metal at 20-30 m/s at the gate. This turbulent, high-velocity flow folds the cavity air into the metal stream as bubbles. The bubbles cannot escape before the metal solidifies -they are frozen into the casting as distributed gas porosity.

Hydrogen mechanism: Aluminum melt absorbs hydrogen from atmospheric moisture, from wet or contaminated ingot, and from die lubricant decomposition. As the metal solidifies, hydrogen solubility drops sharply -hydrogen gas precipitates out of solution, forming small distributed pores throughout the casting.

---

Gas Porosity vs Shrinkage Porosity

Characteristic	Gas Porosity	Shrinkage Porosity
Shape	Round, smooth walls	Angular, branching, dendritic
Location	Distributed throughout section	Concentrated in thick sections
Cause	Entrapped gas	Solidification shrinkage
X-ray appearance	Round bright spots	Irregular branching patterns
Prevention	VADC, gate optimization	Uniform wall thickness, intensification

---

ASTM E505 Classification

ASTM E505 defines reference radiographs for aluminum die casting porosity classification (Class 1 = least porosity, Class 5 = most):

Class	Porosity Level	Typical Application Acceptance
Class 1	Near-zero	Pressure-tight hydraulic, T6 structural
Class 2	Very low	EV structural, safety-critical
Class 3	Low-moderate	General structural, pneumatic
Class 4	Moderate	Non-structural enclosures
Class 5	High	Cosmetic / decorative parts only

---

Consequences of Gas Porosity

For pressure-tight applications: Interconnected pore networks form leak paths through casting walls. At 100 bar, a pore network connecting an internal passage to the exterior surface is a functional failure.

For T6 heat treatment: During solution treatment at 480-540°C, gas in pores expands. If the surface is thin, this expansion creates visible blisters -destroying the part. Standard HPDC A380 cannot be T6 treated reliably because of this.

For fatigue life: Pores act as stress concentrators. Fatigue cracks initiate at pore surfaces under cyclic loading, reducing fatigue life compared to a pore-free casting.

---

Detection Methods

X-ray (digital radiography): Standard production screening. Detects pores >=.3 mm diameter. Classification per ASTM E505. Fast enough for 100% production inspection on qualifying programs.

CT scanning: Volumetric mapping of porosity distribution. Used for tooling qualification and root cause investigation. Not practical for 100% production inspection.

Metallographic cross-section: Destructive. Provides definitive characterization of pore morphology, size, and distribution. Used for process development and failure analysis.

Pressure/helium leak test: Detects interconnected porosity (leak paths). Does not detect isolated closed pores. The most functionally relevant test for pressure-tight applications.

---

Prevention Strategies

Vacuum-assisted HPDC (VADC): Evacuates die cavity to <30 mbar before injection. Metal enters a near-vacuum -no air to compress and entrap. Reduces gas porosity 60-70%. The primary approach for Class 1- requirements and T6 programs.

Gate velocity optimization: Slower gate velocities produce less turbulence and less air entrainment. Trade-off: slower fill increases cold shut risk in thin sections. KastMfg optimizes gate velocity per program to balance fill quality and porosity.

Overflow wells: Capture cold metal and entrained air from the flow front before it reaches the main casting section. Relocates the worst porosity from the casting to the overflow, which is removed.

Degassing: Rotary degassing with argon or nitrogen removes dissolved hydrogen from the melt before casting. Standard practice on all KastMfg aluminum programs.

Alloy selection: A413's near-eutectic composition produces inherently lower shrinkage porosity than A380 -combined benefit when both gas and shrinkage porosity must be minimized.

---
