Die Casting for Security and Locking Systems

The security hardware industry is one of die casting's oldest and most established markets. Padlocks, deadbolts, mortice lock cases, and access control hardware have been produced by zinc hot-chamber die casting since the mid-20th century -and the technology remains dominant today because no other process can match the combination of dimensional precision, decorative surface quality, and unit cost economics that zinc die casting provides at the volumes the security hardware market demands.

---

Why Zinc Die Casting Dominates Security Hardware

Security hardware faces an unusual combination of requirements: it must be structurally strong enough to resist attack (pry bars, bolt cutters, picking tools), dimensionally precise enough for the lock mechanism to function reliably over thousands of operating cycles, and cosmetically acceptable enough for the premium architectural hardware market where aesthetics matter.

Structural strength: Zamak 5's compressive yield strength (600 MPa) and tensile strength (331 MPa) provide meaningful resistance to forced-entry attacks. A padlock shackle engaging a Zamak 5 body can withstand substantially more shear force than a plastic or pot metal (low-grade zinc) substitute. For highest-security applications, ZA-8 (374 MPa tensile, 100 HRB hardness) provides additional mechanical performance.

Dimensional precision: Lock cylinders must slide into the housing bore with a clearance of 0.05-1.1 mm to allow rotation without jamming. Die cast zinc achieves CT3-CT5 tolerances as-cast -often eliminating the need for post-cast machining of the cylinder bore. This is the economics of security hardware die casting: cast the precision, skip the machining.

Decorative surface quality: High-end architectural security hardware -lever handles, deadbolt trim plates, escutcheons -is chrome or nickel plated and must maintain its appearance over 10-20 years of use. Zinc's smooth as-cast surface (Ra 0.8-1.6 μm) is the ideal plating substrate. The chrome/nickel plating on a quality door handle starts with a zinc die casting.

---

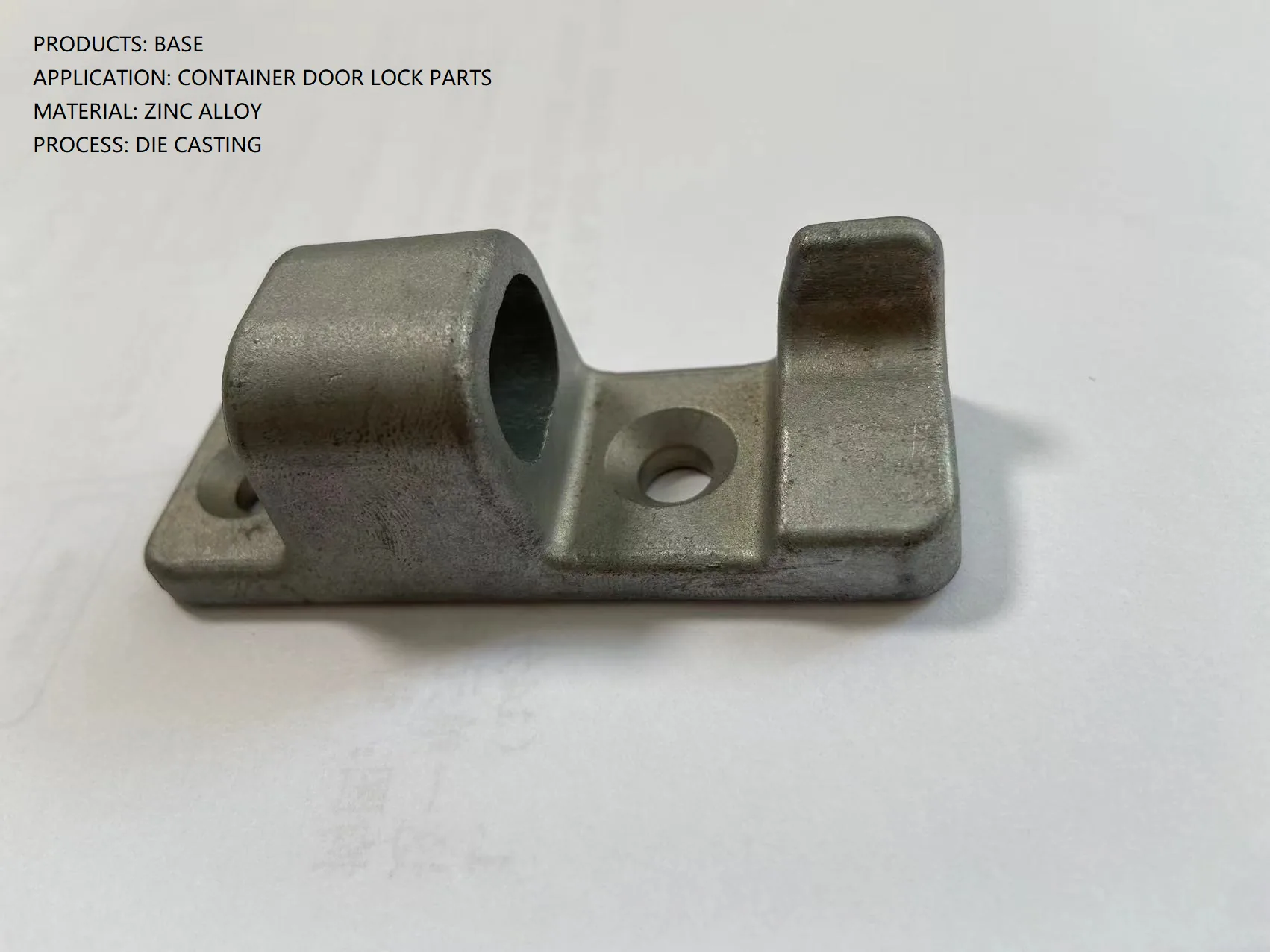

Product Categories

Padlocks

Padlock bodies in Zamak 5 are produced at volumes of hundreds of thousands to millions per year. The body must:

• Accept the cylinder and mechanism with controlled bore tolerances
• Resist bolt cutter shear on the shackle clearance area
• Accept decorative plating (chrome, nickel, powder coat) with consistent surface quality
• Function reliably through 10,000+ open/close cycles

KastMfg's padlock program management includes 100% dimensional check of cylinder bore position and diameter, SHG zinc spectrometer verification (eliminating zinc pest as a plating failure root cause), and surface Ra measurement on cosmetic faces. See the zinc padlock body case study for production data on a 2.4 million piece/year program.

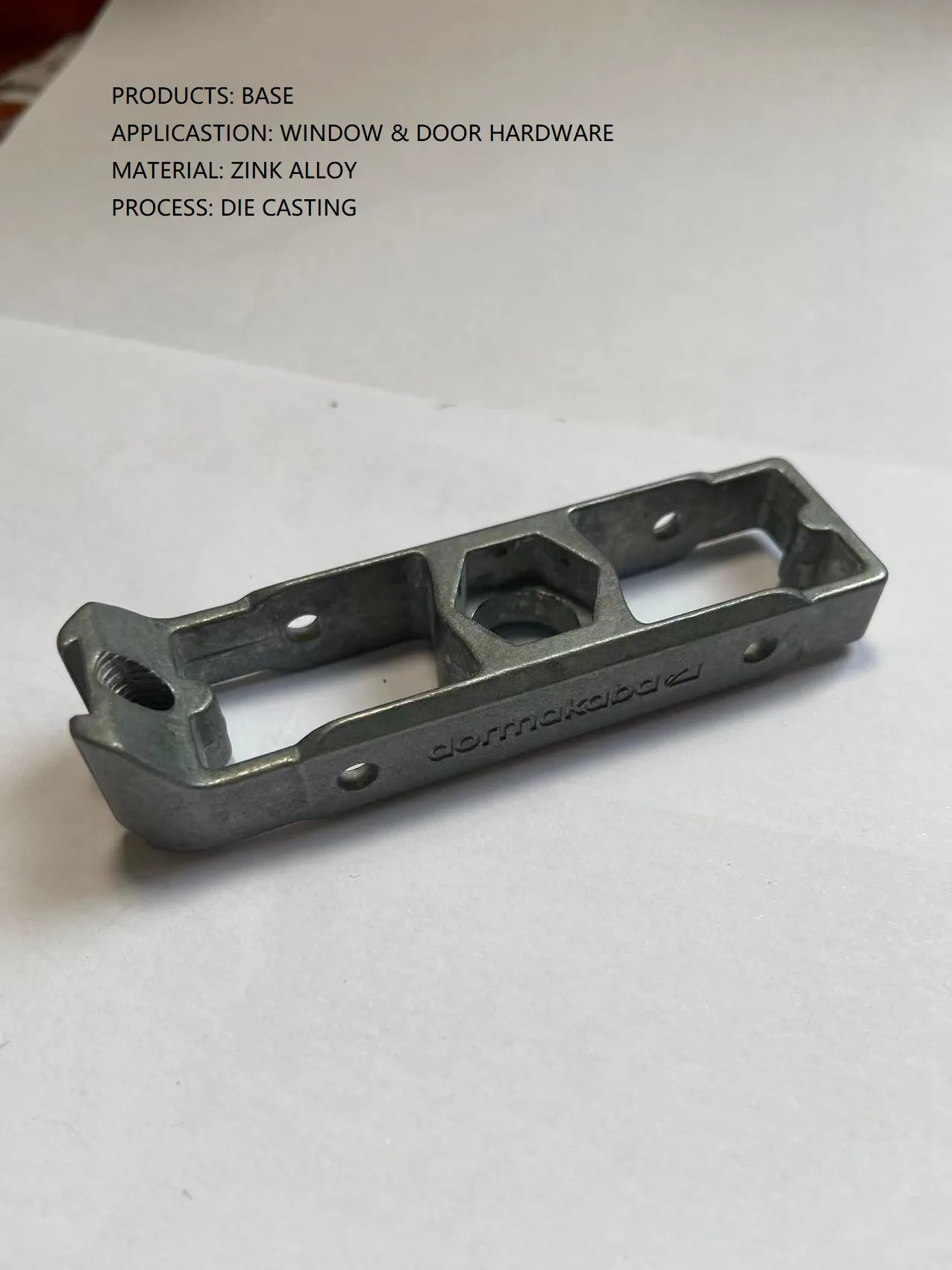

Deadbolts and Mortice Locks

Deadbolt housings and mortice lock cases are larger and more geometrically complex than padlock bodies -they must integrate the bolt mechanism, cylinder housing, cam follower, and mounting provisions in a single casting.

Bolt geometry: The bolt travel groove must be smooth and consistent to prevent binding. Flash or parting line misalignment in the bolt travel area causes stiff operation -a quality defect that is difficult to detect by dimensional inspection and only appears during functional testing.

KastMfg's DFM review specifically examines bolt travel geometry for flash risk and parting line placement, recommending modifications before tooling if the initial design places the parting line through the bolt travel area.

Cylinder bore alignment: The cylinder must be perpendicular to the mounting face (for through-bolt alignment) and concentric with the mechanism cam follower. Both relationships are verified on CMM at first article.

Access Control Electronics Housings

Modern access control systems -RFID readers, biometric access panels, keypad entry units -require die cast enclosures that combine:

Structural protection: Tamper resistance against physical attack on the electronics Environmental sealing: IP54 or IP65 for outdoor installations Electromagnetic compatibility: Metal enclosure provides inherent Faraday shielding Integration provisions: Mounting holes, conduit entries, cable management provisions

KastMfg produces access control housings in A380 for indoor and sheltered outdoor installations, A360 for exposed outdoor installations (better corrosion resistance), and AZ91D magnesium for premium lightweight installations where EMI shielding performance is critical.

Electronic Padlock Bodies

Smart padlocks with Bluetooth connectivity, app control, and access logging use a hybrid die casting design: a zinc outer shell (structural, decorative) containing an aluminum internal chassis (structural, thermal management for electronics). Both components are die cast at KastMfg and delivered as a matched set for the customer's assembly operation.

---

Material Selection for Security Hardware

Application	Material	Key Reason
Standard padlock body	Zamak 5	Strength, compressive yield, plating quality
High-security padlock body	ZA-8	Maximum hardness (100 HRB), compressive yield
Decorative door handle mechanism	Zamak 3	Maximum elongation (ductility), chrome plating
Architectural deadbolt case	Zamak 5	Structural + decorative plating
Access control housing (indoor)	A380	Structural, mounting provisions
Access control housing (outdoor)	A360	Corrosion resistance
Premium electronic lock body	AZ91D	Lightweight, EMI shielding
Cam lock body	Zamak 5	Thin walls, precision bore, high volume

---

Testing and Quality for Security Hardware

Dimensional Verification

All cylinder bores, bolt travel dimensions, and mounting hole patterns are verified on CMM at first article. Production sampling frequency and acceptance criteria are defined in the control plan at program launch.

Plating Pre-Treatment Verification

For programs with decorative electroplating:

• Surface Ra measurement on cosmetic faces (target: 0.9-1.3 μm for direct chrome plating)
• SHG zinc spectrometer verification on every melt (Pb >=.005%, Cd >=.004%, Sn >=.003%)
• No vibratory polishing required when as-cast Ra meets specification -eliminating pre-plating cost

Functional Testing

First-article and periodic production samples undergo functional testing where specified:

• Cycle testing (10,000+ open/close cycles on lock mechanism)
• Pull-out force testing on cylinder bore engagement
• Shear force testing on padlock shackle clearance (customer-specified loads)

---

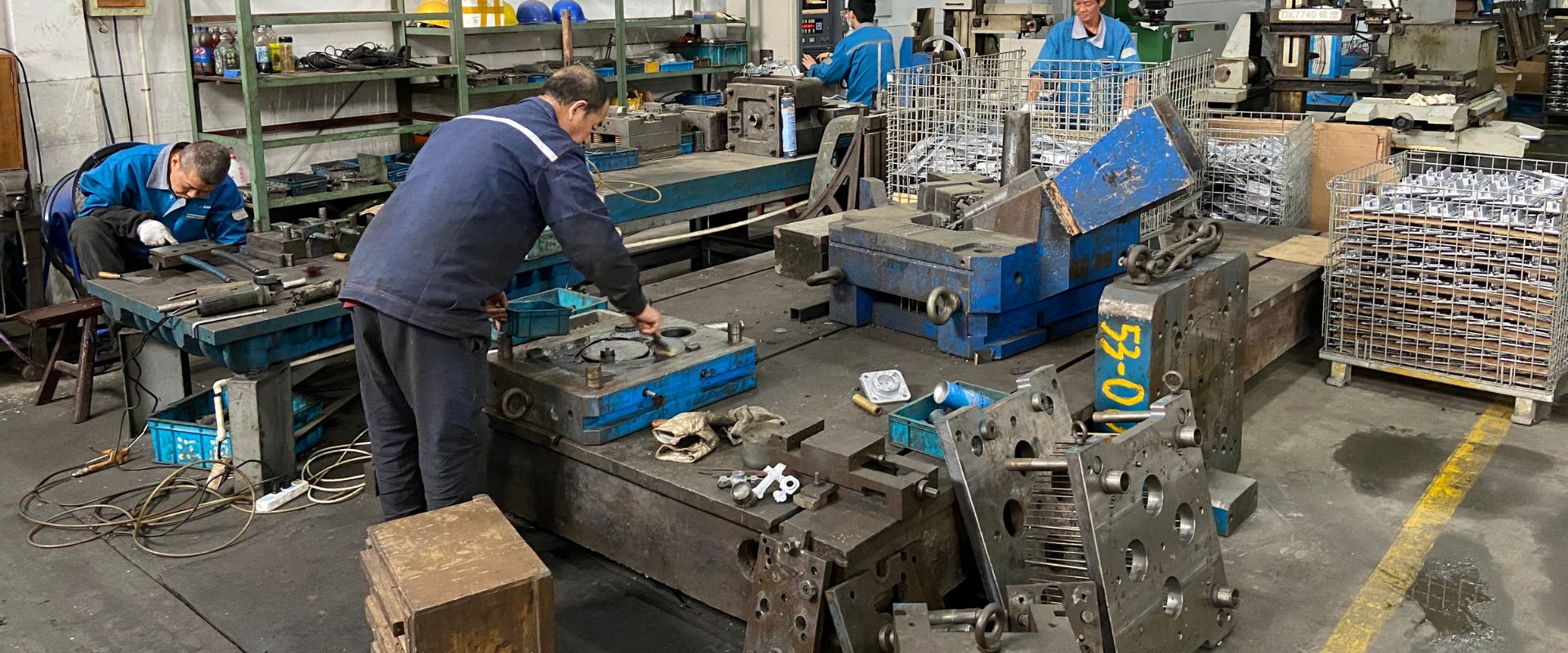

High-Volume Economics for Security Hardware

Security hardware is produced in volumes that make die casting economics compelling -but only if multi-cavity tooling is designed in from the start:

Single-cavity tool: 60,000 shots/year of production →60,000 pieces/year 4-cavity tool: 60,000 shots/year of production →240,000 pieces/year (at 60% tooling cost premium)

For programs above 200,000 pieces/year, 4-cavity zinc tooling is economically mandatory. KastMfg designs cavity count into the initial tooling quotation based on the customer's annual volume -not as an afterthought when unit cost exceeds budget.

---
