Consumer Products Die Casting for Hardware Parts

Consumer products and hardware represent die casting's largest market by unit volume. Economic success here requires multi-cavity tooling, automated trimming, integrated surface treatment, and per-unit cost measured in cents -combined with the cosmetic consistency that decorative zinc plating demands.

---

Zinc Die Casting for Hardware

The hardware industry is the world's largest zinc die casting market. Zamak 3 and Zamak 5 dominate because:

• Decorative plating compatibility: Chrome, nickel, satin nickel, gold, and antique brass plating adhere excellently to zinc castings
• Thin walls and fine detail: Zamak 3's 0.4 mm minimum wall enables complex ornamental profiles impossible in aluminum
• Long die life: Hot-chamber zinc dies exceeding 500,000 shots reduce tooling amortization to fractions of a cent per part
• Fast cycle times: 15-25 second cycles enable high-volume production economics

Hardware Parts at KastMfg

Security hardware: Padlock bodies, deadbolt housings, mortice lock cases, luggage lock bodies.

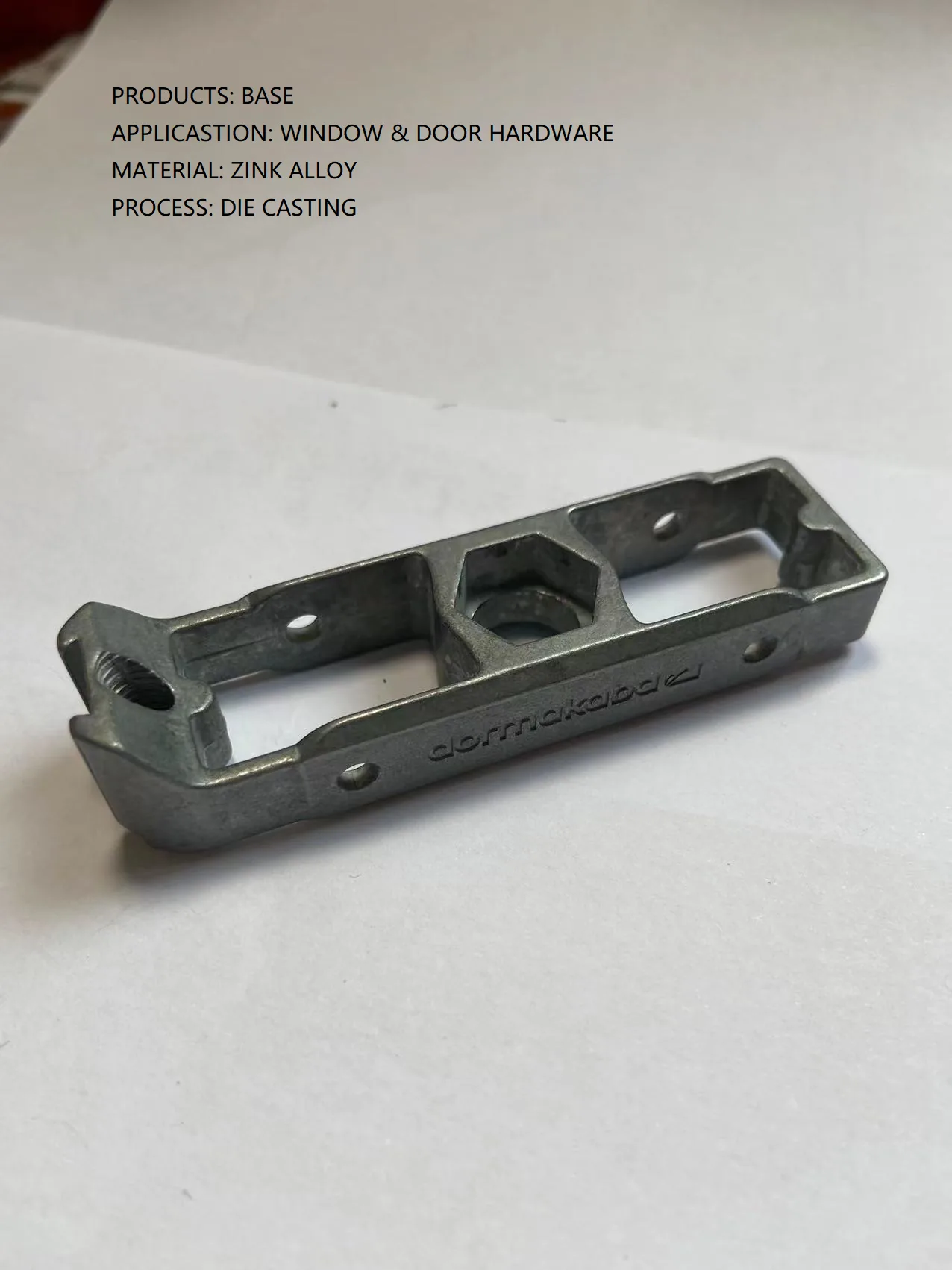

Architectural door and window hardware: Door handles and levers (zinc mechanism bodies), window espagnolette fittings, window fasteners, tilt-and-turn window mechanisms, balcony door handles.

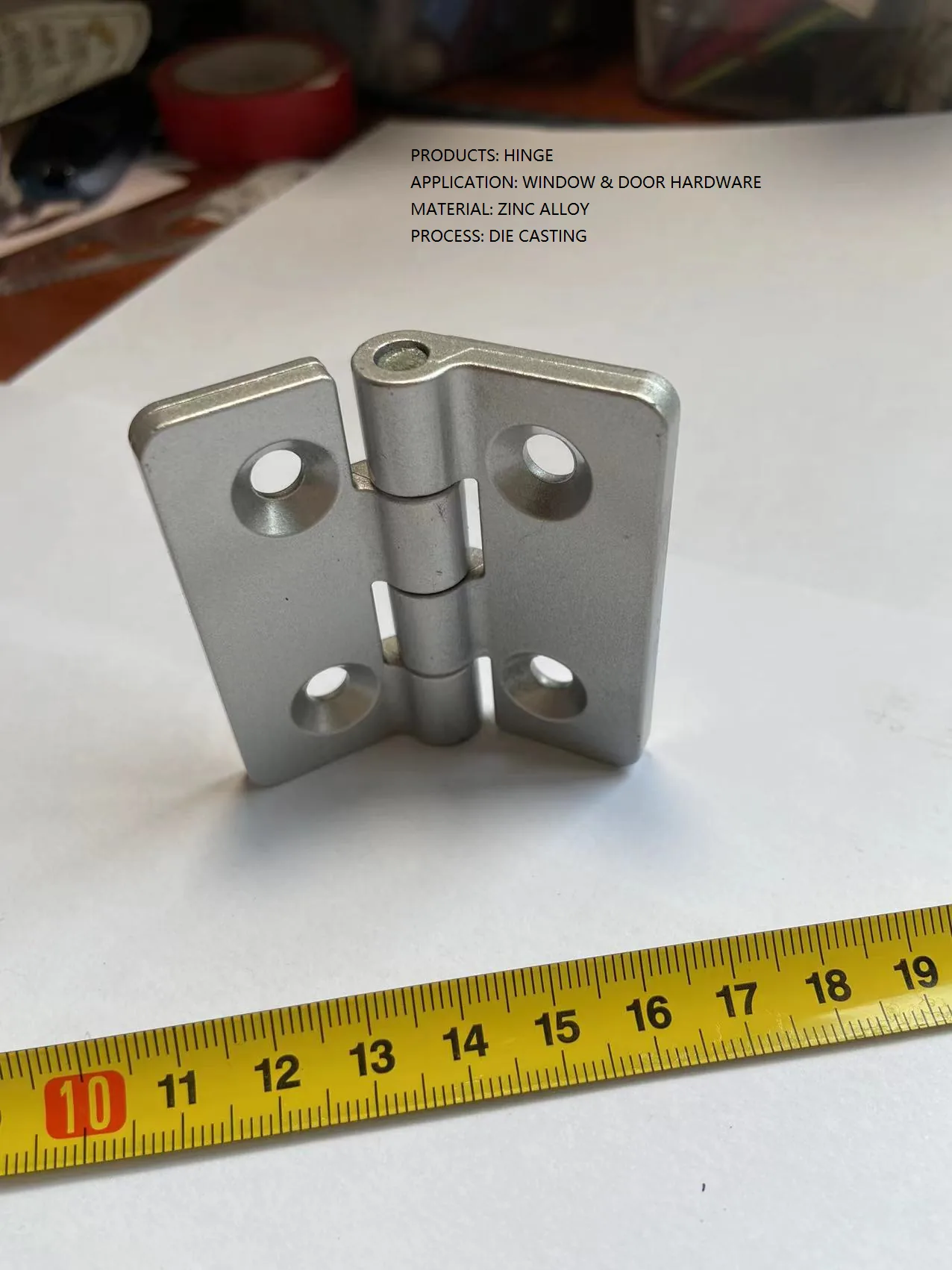

Furniture hardware: Cabinet knobs and pulls, furniture hinges, drawer slides, wardrobe fittings, shelf support brackets.

Closures and fasteners: Industrial snap fasteners, quarter-turn fasteners, panel clips, cam locks, draw latches.

---

Aluminum Die Casting for Power Tools

Power tool housings combine structural requirements (impact from drops), thermal requirements (motor heat dissipation), and weight targets in high-volume packages.

Power tool castings at KastMfg:

• Angle grinder and circular saw gearbox housings
• Cordless drill and impact driver transmission housings
• Jigsaw and reciprocating saw housings
• Impact wrench and ratchet housings
• Rotary hammer gear cases and intermediate housings

Key requirements: A380 for most applications (machinability for bearing bore precision, strength for impact resistance); T5 aging for improved hardness programs; uniform wall thickness for consistent drop resistance.

---

Sporting Goods and Outdoor Equipment

• Bicycle pedal bodies, derailleur housings, shifter bodies
• Fishing reel frames and side plates (Zamak or aluminum)
• Ski binding housing components
• Inline skate wheel brackets and frame components
• Camping equipment hardware (stove burner bodies, tent hardware)
• Archery sight bodies and adjustable arrow rests

---

Decorative and Luxury Goods

Premium consumer goods use zinc for decorative hardware with exceptional plating quality:

• Luxury handbag clasps and hardware
• Belt buckles (Zamak 3 for maximum chrome quality)
• Eyewear hinge and bridge components
• Watch band clasps and buckles
• Fashion accessories with decorative plating

---

Cost Optimization for Consumer Programs

Multi-cavity tooling: 4- cavity zinc dies for 500,000+ pieces/year reduce unit cost by 60-70% versus single-cavity.

Automated trimming: Dedicated trimming die press -consistent trim quality, zero labor cost on gate/flash removal.

Integrated surface treatment: Shot blasting and vibratory finishing in-house before external electroplating, eliminating a logistics cycle.
