Die Casting for Electronics & Telecommunications -Heat Management, EMI Shielding, and Precision Enclosures

Electronics and telecommunications represent one of the most technically demanding die casting markets. The components are typically small to medium in size but high in geometric complexity, demanding in dimensional precision, and unforgiving in surface quality requirements. A heat sink housing that introduces thermal resistance at the mounting interface because of inadequate flatness degrades system reliability. An EMI enclosure that cannot achieve IP67 sealing because of porosity at the flange face creates regulatory compliance failures. A 5G outdoor housing that corrodes prematurely because A380 was specified instead of A360 generates warranty claims.

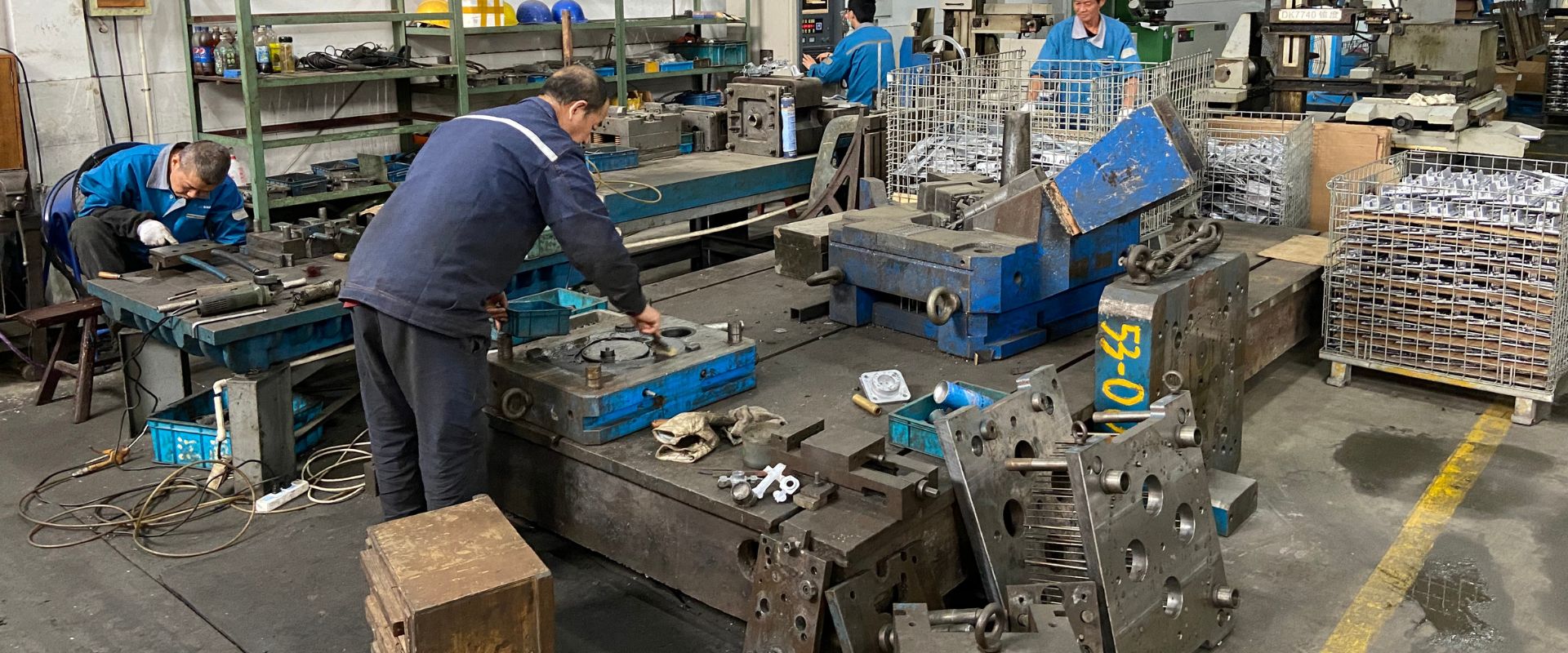

KastMfg has supplied die cast components to electronics and telecommunications equipment manufacturers for over 20 years. Our understanding of the thermal, electromagnetic, and environmental requirements that electronics applications impose -and how material selection, process control, and post-casting operations affect them -is embedded in every DFM review and every production program.

---

The Three Core Requirements in Electronics Die Casting

1. Thermal Management

Electronics die casting exists primarily to manage heat. Power semiconductors, RF amplifiers, high-density processors, and EV power electronics all generate heat that must be transferred efficiently to a cooling medium -air, liquid, or a phase-change system. The die casting serves as the structural housing and the thermal conductor simultaneously.

Thermal interface quality: Heat transfer efficiency depends critically on the quality of the thermal interface between the electronics component and the casting. A mounting face with 0.05 mm flatness deviation creates air gaps that act as thermal insulators. KastMfg face-mills all thermal mounting surfaces on CNC to 0.01-0.02 mm flatness, confirmed by CMM before shipment.

Fin geometry for air cooling: Finned heat sink castings require consistent fin thickness, spacing, and height to perform as designed. KastMfg's DFM review validates fin geometry against castability constraints: minimum 1.5 mm fin thickness for aluminum, 4:1 maximum fin height-to-thickness ratio for reliable die fill, and adequate draft on fin faces for clean ejection without fin deformation.

Alloy thermal conductivity: The choice between A380 (96 W/m·K), A360 (113 W/m·K), and A413 (121 W/m·K) can change the operating temperature of the electronics assembly by 5-15°C under typical heat loads. KastMfg routinely reviews alloy selection for thermal management programs and recommends A360 or A413 over A380 when the thermal conductivity difference is meaningful.

2. EMI and RFI Shielding

Die cast metal enclosures provide inherent electromagnetic shielding -no separate shielding materials, coatings, or gaskets required. For electronics operating at frequencies above approximately 1 MHz, the shielding effectiveness of the housing enclosure determines whether the product passes FCC, CE, ISED, or TELEC electromagnetic compatibility testing.

Aluminum shielding effectiveness: Die cast aluminum enclosures provide 60-70 dB of electromagnetic attenuation at 1 GHz for typical wall thicknesses of 2- mm. This exceeds the shielding requirements of most commercial and industrial electronics applications.

Magnesium for enhanced shielding: AZ91D magnesium die castings provide 60-100 dB attenuation at 1 GHz -inherently superior to aluminum due to magnesium's higher resistivity and skin effect characteristics. For applications with stringent EMC requirements (military-grade electronics, high-sensitivity scientific instruments), magnesium die casting provides additional shielding margin.

Shield continuity at joints: Shielding effectiveness of the assembled enclosure depends not just on the casting walls but on the electromagnetic continuity at all joints, seams, and apertures. KastMfg's machined flange faces ensure tight metal-to-metal contact around the enclosure perimeter, maintaining shield continuity without relying on conductive gaskets for structural applications.

3. Environmental Protection (IP Rating)

Outdoor telecommunications equipment, industrial electronics, and consumer products for outdoor use require IP65 (dust-tight, water-jet resistant), IP67 (immersion to 1 m), or IP68/IP69K (higher immersion or high-pressure wash) environmental protection.

Achieving IP67 and higher with a die cast enclosure requires:

• Porosity-free casting walls (no through-porosity leak paths)
• Precision-machined O-ring grooves with correct cross-section, depth, and surface finish
• Flat mating surfaces with flatness within the O-ring compression tolerance
• Consistent wall thickness to prevent distortion at the sealing interface under assembly torque

KastMfg produces IP67-rated electronics enclosures routinely. Critical sealing features -O-ring grooves, mating faces -are machined to drawing tolerance and verified on CMM. Pressure testing on first articles and production samples confirms sealing integrity before shipment.

---

Heat Sink Die Casting

Heat sinks are the highest-volume single die casting component category in the electronics industry. From LED drivers to server CPUs to industrial motor controllers, finned aluminum castings dissipate thermal energy to the ambient environment.

Design Considerations for Die Cast Heat Sinks

Fin height-to-thickness ratio: Taller, thinner fins increase surface area but become progressively harder to cast reliably. The practical limit for aluminum die cast fins is approximately 4:1 height-to-thickness ratio (e.g., 6 mm tall at 1.5 mm thick). Beyond this ratio, premature solidification at fin tips causes incomplete fill. KastMfg's DFM review identifies fins exceeding this ratio and recommends adjustments that preserve thermal performance while ensuring castability.

Base plate thickness uniformity: The base plate that contacts the electronics component is often specified with tight flatness -0.02-0.05 mm over the mounting area. Die casting produces base plates with flatness of 0.1-0.3 mm as-cast; CNC face milling to 0.01-0.02 mm is standard for thermal mounting faces.

Mounting hole accuracy: Thermal mounting screws must apply controlled clamping force to ensure consistent interface contact pressure. Hole position accuracy (±0.1 mm or tighter) and thread quality (go/no-go gauged) are standard on KastMfg heat sink programs.

Heat Sink Materials

Application	Recommended Alloy	Thermal Conductivity	Notes
General-purpose heat sinks	A380	96 W/m·K	Cost-effective, adequate for most applications
High-performance heat sinks	A360	113 W/m·K	18% improvement, outdoor corrosion resistance
Maximum thermal performance	A413	121 W/m·K	Best conductivity, also pressure-tight for liquid cooling
Combined shielding + heat	AZ91D magnesium	72 W/m·K	Lower conductivity but superior EMI shielding

---

5G and Telecommunications Equipment

The 5G infrastructure buildout has created one of the fastest-growing segments for electronics die casting. Small cell base stations, remote radio units (RRU), baseband units (BBU), and active antenna units (AAU) all use aluminum or magnesium die cast enclosures for outdoor installation.

Requirements for 5G Equipment Enclosures

Outdoor durability: 5G small cells are installed on poles, buildings, and street furniture in all climate zones. They must survive temperature cycling (-0°C to +70°C), humidity (95% RH non-condensing), salt spray (equivalent to 500+ hours per ISO 9227), UV radiation, and wind loading over a 10-15 year service life. A360 aluminum with powder coating or anodizing is standard; A380 is acceptable with adequate coating but carries higher corrosion risk in coastal environments.

Thermal management: 5G active antenna units generate 50-100 W of heat in a compact enclosure, often without fan cooling (passively cooled). The enclosure itself is the heat sink -fins on the external surface of the casting dissipate heat by natural convection. KastMfg's 5G enclosure programs include thermal modeling validation of fin geometry, and all thermal mounting faces are machined to the flatness required for effective heat spreading from RF modules to the enclosure.

Sealing to IP67/IP68: Outdoor 5G equipment must prevent water ingress during rain, condensation, and cleaning operations. KastMfg machines O-ring grooves on all 5G enclosure programs to drawing specification, with CMM verification and first-article pressure testing to IP67 protocols.

EMI performance: Active antenna units process and transmit RF signals in the 3.4-3.8 GHz, 24-29 GHz, and mmWave frequency bands. The enclosure must shield internal electronics from external interference and prevent internal RF energy from coupling to adjacent equipment. Magnesium die casting is increasingly specified for the highest EMI performance requirements; aluminum with full perimeter contact and conductive gaskets is adequate for most 5G applications.

Typical 5G and Telecom Parts

• Small cell base station enclosures (macro and micro)
• Remote radio unit (RRU) housings
• Active antenna unit (AAU) baseplate and cover assemblies
• Fiber distribution terminal housings
• Optical transport equipment chassis
• Industrial router and switch enclosures for outdoor installation
• Network attached storage (NAS) enclosures
• Antenna mounting brackets and tilt hardware

---

Server and Data Center Equipment

High-density server and data center equipment uses die cast aluminum for structural chassis components, thermal management hardware, and enclosure elements:

Server chassis components: Structural side panels, drive bay brackets, backplane support frames, and I/O panel brackets in aluminum die casting replace sheet metal assemblies with fewer parts, better thermal conductivity, and tighter dimensional consistency.

Cold plate heat exchangers: Liquid-cooled server platforms use aluminum cold plates -die cast housings with precision-machined internal flow passages -to directly cool high-power CPUs and GPUs. A413's combination of pressure tightness and thermal conductivity makes it the preferred alloy. KastMfg produces cold plates with internal passage dimensions controlled by CNC machining, with 100% pressure and leak testing before shipment.

GPU and ASIC cooling solutions: High-performance computing platforms use custom die cast heat spreaders and cold plates with mounting hole patterns specific to GPU and ASIC packages. Flatness at the die-to-spreader interface is the critical quality characteristic -KastMfg achieves 0.01 mm flatness on CPU/GPU mounting faces as standard.

---

Consumer Electronics -Laptops, Cameras, and Devices

Magnesium die casting is the material of choice for premium consumer electronics chassis:

Laptop and tablet chassis: AZ91D magnesium die casting produces chassis components (bottom cover, keyboard deck, hinge brackets) that are 35% lighter than equivalent aluminum designs while providing superior rigidity, EMI shielding, and a premium tactile quality. KastMfg supplies magnesium chassis components to consumer electronics brands, with cosmetic surface finishes including e-coat, painting, and micro-arc oxidation.

Camera bodies: Professional camera bodies, optical instrument housings, and precision imaging equipment use magnesium die casting for the same reasons as laptop chassis -weight, stiffness, and EMI shielding -with the added requirement of tight dimensional stability for lens mount and sensor alignment.

Power tool and portable instrument housings: Aluminum die cast housings for high-power portable tools, test instruments, and industrial handheld devices combine lightweight construction with the durability to withstand repeated drops and rough handling.

---

Surface Finishing for Electronics Enclosures

Finish	Application	Key Property
Type II Anodizing	Electronics housings, heat sinks	Electrical insulation, corrosion protection
Type III Hard Anodizing	Wear surfaces, precision guides	Hardness, dimensional stability
Chromate conversion (Alodine)	EMI grounding, pre-paint	Electrical conductivity maintained
E-coating	Complex internal surfaces	Full coverage including recesses
Powder coating	Outdoor telecom enclosures	UV resistance, color coding, IP protection
Micro-arc oxidation (MAO)	Magnesium chassis	Hard ceramic surface, maximum corrosion resistance

---

Frequently Asked Questions

What is the best alloy for an outdoor 5G enclosure in a coastal environment?

A360 aluminum with powder coating over chromate conversion or e-coat primer. A360's low copper content (0.6% max vs A380's 3.0-4.0%) dramatically reduces galvanic corrosion susceptibility in chloride environments. Combined with a 60-70 μm powder coat layer on a properly prepared and primed surface, coastal service life exceeding 15 years is achievable. If A380 is used in coastal deployments, the coating system must do all the work -the bare alloy has insufficient corrosion resistance for unprotected exposure.

Can die cast enclosures meet IP67 without O-ring gaskets?

IP67 requires 30-minute immersion to 1 m without water ingress. Die cast enclosures with close-tolerance machined metal-to-metal contact can achieve IP65 (water jet resistance) without gaskets. IP67 reliably requires an O-ring or formed-in-place gasket. KastMfg machines O-ring grooves to drawing specification -groove width, depth, and cross-sectional dimensions matched to the O-ring specification -ensuring consistent compression and seal performance.

What level of EMI shielding does a die cast aluminum enclosure provide?

Die cast aluminum enclosures (2- mm wall, continuous perimeter contact) provide approximately 60-70 dB of shielding effectiveness at 1 GHz. This exceeds FCC Class B limits (approximately 30 dB) by a substantial margin. For frequencies above 10 GHz, shielding effectiveness decreases and additional measures (conductive gaskets, careful aperture management) may be required. Contact KastMfg with your frequency range and regulatory requirement; we can advise on alloy selection and joint design.

---
