LED Streetlight Housing Die Casting Case Study
LED streetlight housing die casting case study: A360 alloy, e-coat primer, and corrected fins solved thermal and salt spray failures on a coastal program.
Production Capabilities
Project photos for LED streetlight housing die casting

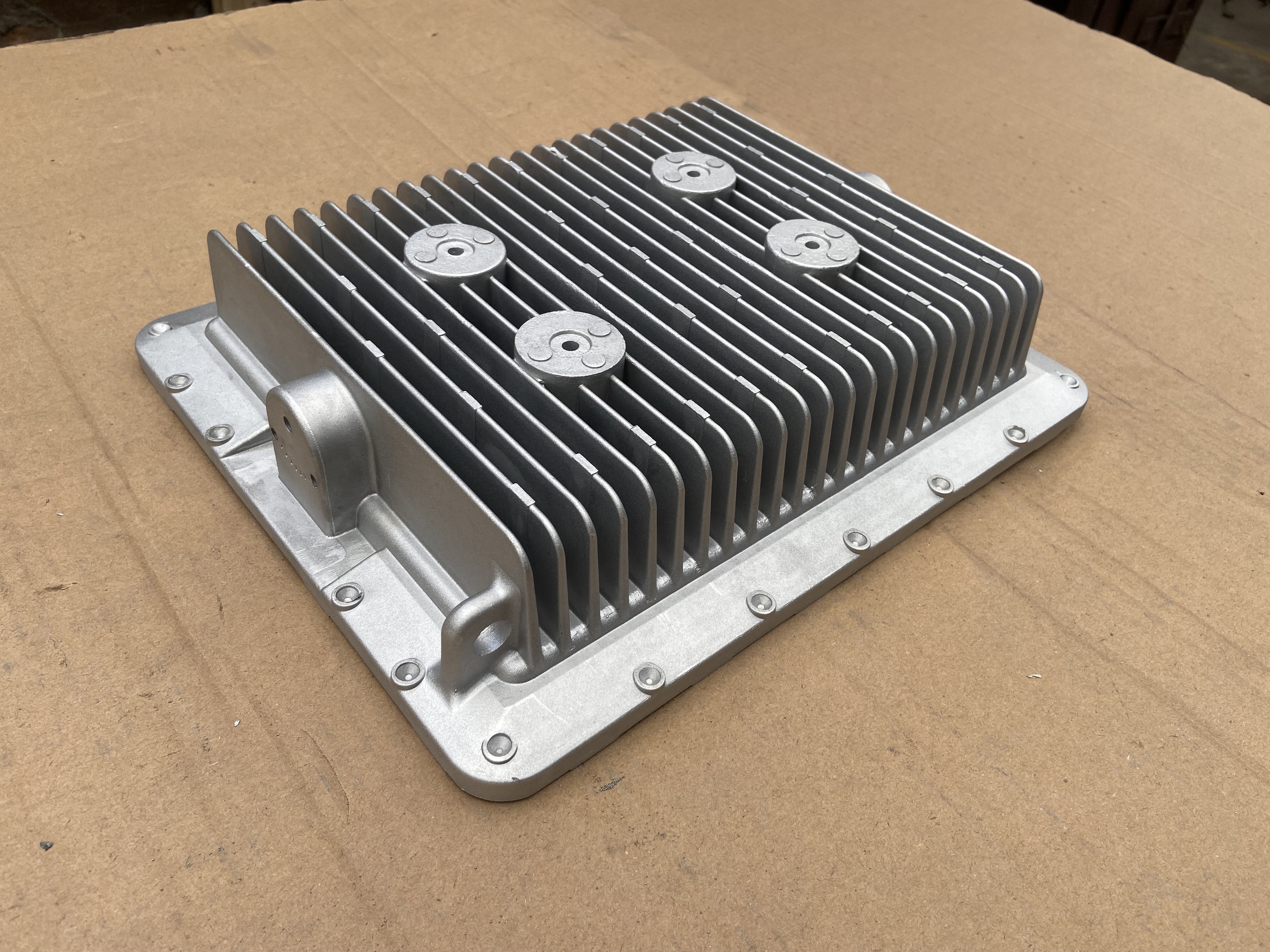

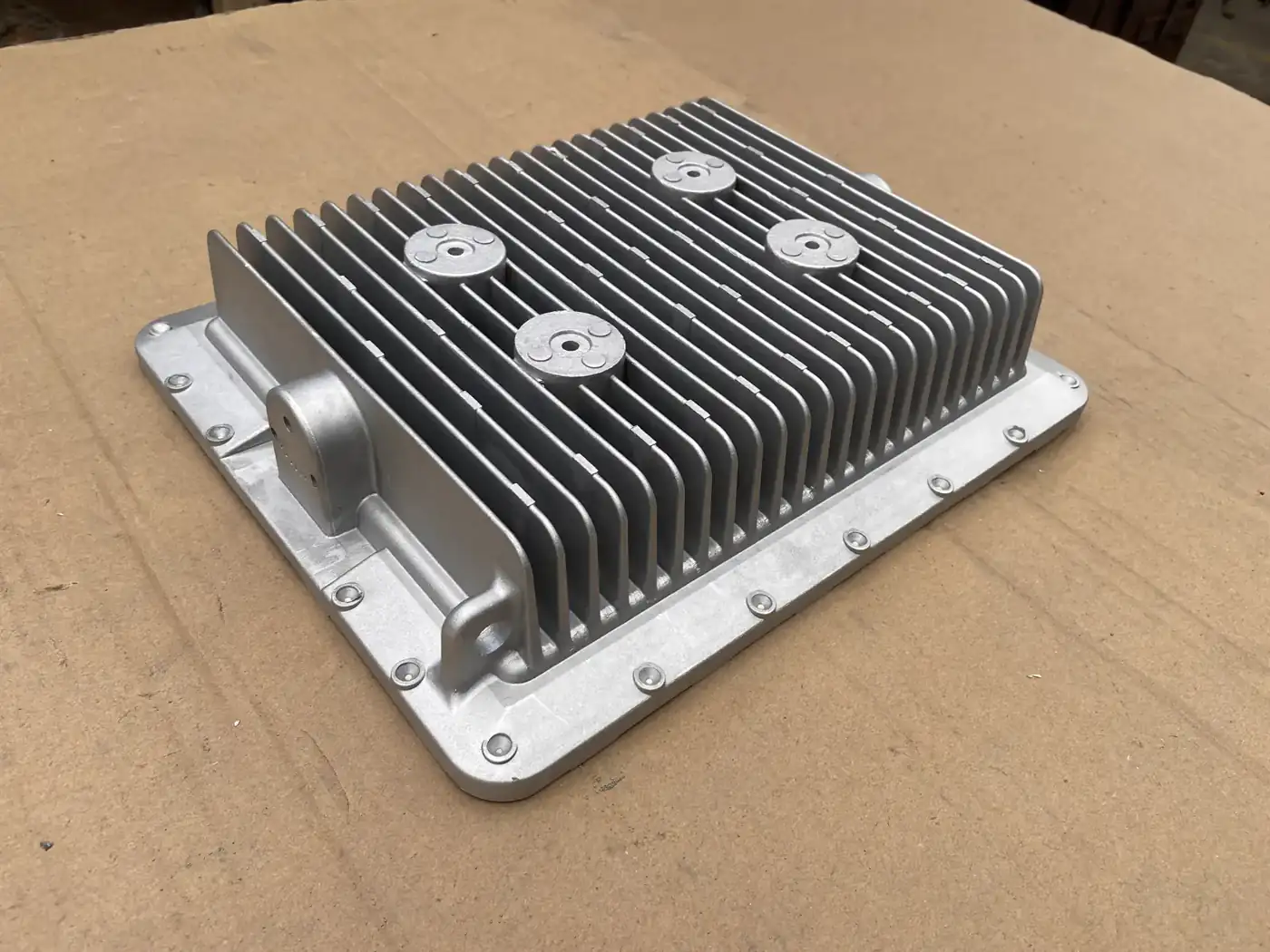

Finished Component
The completed die casting or machined component delivered for this project, demonstrating dimensional accuracy and surface quality.
Production & Inspection
In-process die casting operations, leak testing, machining, and quality inspection steps applied during this program.
Customer: LED lighting OEM, Netherlands Program: 150W streetlight housing for municipal coastal installation Annual volume: 35,000 pieces/year Material: A360 aluminum + e-coat + powder coat Weight: 2.1 kg Requirements: Thermal resistance <0.12°C/W, IP66, 10-year coastal service life (800-hour salt spray minimum)
The Challenge
Previous design: A380 aluminum with direct powder coat. Failing their 800-hour salt spray qualification when tested after 2-year accelerated cyclic corrosion simulation. Coating intact -but underlying aluminum showed pitting at fin edges through coating micro-cracks.
Simultaneously, LED junction temperatures at 84°C in 35°C ambient -1°C below the 85°C limit with no margin for production variation or LED aging.
Two problems, one program.
Solution
Alloy Change: A380 -> A360
A360's copper content (0.6% max vs A380's 3.5%) eliminates the galvanic corrosion mechanism driving pitting. Comparative salt spray: A380 without coating showed pitting at 120 hours; A360 without coating showed none at 500 hours.
Coating Change: Direct Powder -> E-coat Primer + Powder
E-coat (cathodic epoxy, 18 μm) applied before 70 μm powder topcoat. E-coat provides full coverage on fin inner faces and internal surfaces inaccessible to spray powder -a continuous barrier layer that protects the substrate even if the topcoat is scratched during installation. Combined result: >1,200 hours salt spray, 150% of specification.
Fin Geometry Correction
DFM review found 6 of 18 fins exceeding 4:1 height-to-thickness castability ratio -causing inconsistent fill (3 fins short-filling on 12% of shots). Revised to maintain fin height while increasing thickness from 1.5 mm to 1.8 mm.
Thermal improvement: More uniform fin fill + A360's higher thermal conductivity (113 vs 96 W/m·K for A380) dropped LED junction temperature from 84°C to 78°C -a 6°C improvement creating adequate margin.
IP66 Sealing
O-ring groove geometry re-specified to match AS568 O-ring standard sizes. Surface finish Ra <1.6 μm on groove radius. First-article IP66 test (20 kPa water jet, 3 minutes): 12/12 pass.
Results
| Metric | Previous (A380) | KastMfg (A360) |
|---|---|---|
| Salt spray | 480 hrs (fails 800 hr spec) | >1,200 hrs |
| LED junction temp at 35°C | 84°C | 78°C |
| Fin fill consistency | 88% | 100% |
| IP66 first-article pass | 8/12 | 12/12 |
| Coating adhesion (cross-hatch) | GT2 | GT0 |
Contact KastMfg: casting@kastdiecast.com | +86 138 1403 4409 | No.6, Rungu Road, Nanjing, China
