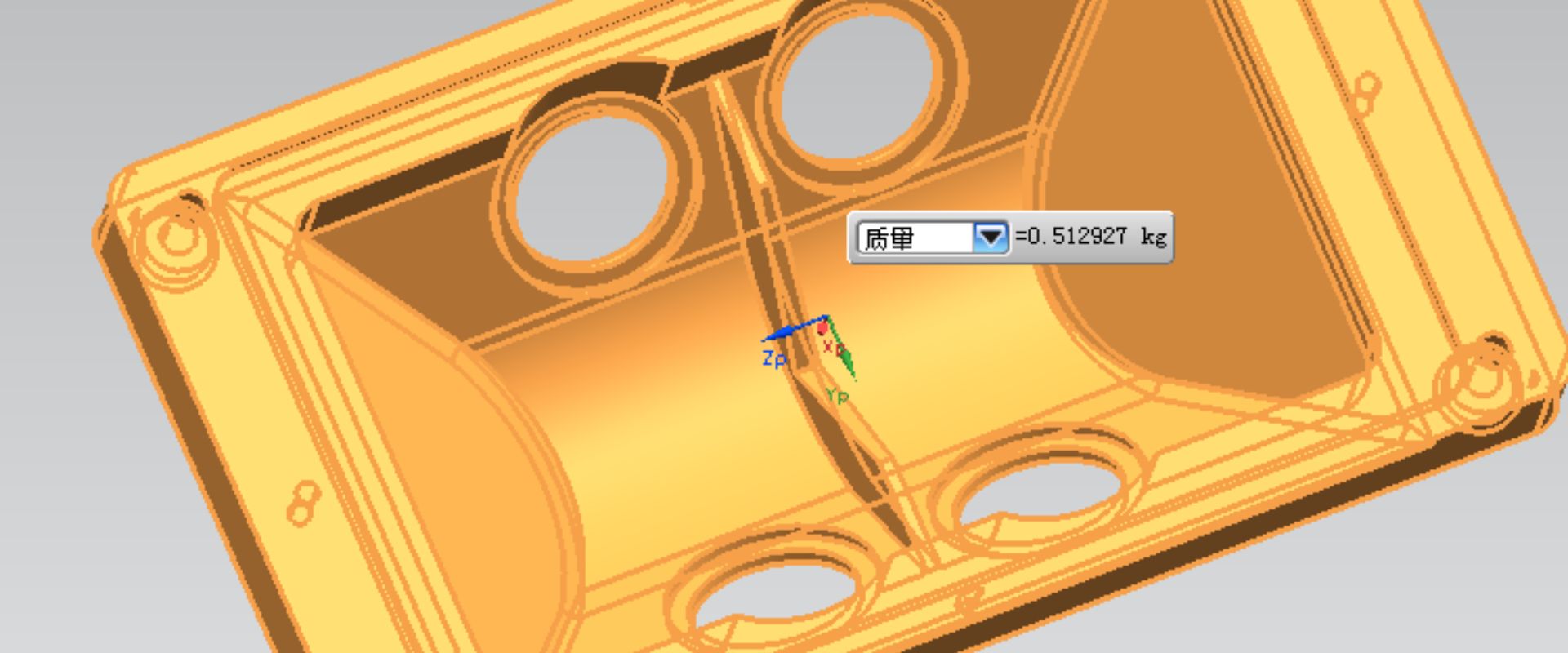

Low Volume Die Casting - From 50 to 10,000 Pieces

Die casting's economics favor volume — tooling amortization improves with every additional part. But many programs cannot wait for volume. Development programs need production-intent castings before design freeze. Specialty equipment is built in hundreds, not millions. Service parts must be produced in small batches for years.

The process itself works identically at 50 pieces or 50,000. The real question is financial: does the tooling investment pay back against your alternatives — CNC machining, sand casting, or investment casting? This page lays out the breakeven math, the tooling strategies that exist specifically for low-volume programs, and an honest comparison of the alternatives, so the decision rests on numbers rather than sales claims.

KastMfg accepts low-volume programs from 50 pieces with the same process discipline and quality documentation as high-volume production.

---

Volume Tiers

Tier	Annual Qty	Tooling	Economics
Prototype	50-500	P20 prototype die	Tooling minimized; unit cost relatively high
Development	500-2,000	P20 or unit die	Evaluate tool life against unit economics
Low production	2,000-10,000	H13 production die	Tooling amortizes meaningfully
Medium production	10,000-50,000	H13, multi-cavity option	Strong economics

No formal MOQ. KastMfg accepts programs from 50 pieces. The decision that matters is process selection: is die casting the right method for this volume and geometry? The sections below give you the framework.

---

The Breakeven Math: When Tooling Pays Back

Every die casting program trades higher upfront tooling for a lower unit cost. The crossover formula is simple:

Breakeven volume = tooling cost ÷ (alternative unit cost − die cast unit cost)

Worked example — a medium-complexity aluminum bracket (illustrative figures; actual costs are quoted per project):

Cost element	Die casting	CNC machining
Tooling	$12,000	$0
Unit cost	$4.00	$22.00

Breakeven = $12,000 ÷ ($22.00 − $4.00) = 667 pieces. Below roughly 700 lifetime pieces, machining is cheaper. Above it, every additional part avoids $18.00 of machining cost.

Against sand casting, the same bracket might sand cast at $9.00 per unit — a $5.00 unit delta against the same $12,000 die, putting breakeven at 2,400 pieces. Sand's cheap pattern wins below that lifetime volume; die casting wins above it.

How the tooling cost spreads as volume grows:

Lifetime volume	Tooling cost per part
500	$24.00
1,000	$12.00
5,000	$2.40
10,000	$1.20

Two planning implications:

1. Lifetime volume decides, not annual volume. A program casting 500 pieces per year for ten years carries 5,000 pieces of lifetime volume and justifies a production die — even though annual demand looks small.
2. Compare total program cost: tooling + (unit cost × volume). A cheap die with expensive parts loses to an expensive die with cheap parts at almost any sustained volume.

The full breakdown of what drives these ranges — slides, cavities, steel grade, cooling complexity — is in our die casting tooling cost guide.

---

Typical Tooling Investment at Low Volume

Tool type	Steel	Approximate cost (USD)
Simple prototype die, single cavity, no slides	P20	$3,000-6,000
Medium prototype die, single cavity, 1 slide	P20	$6,000-12,000
Production die, single cavity, no slides	H13	$10,000-20,000
Production die, 1-2 slides	H13	$18,000-35,000
Insert for modular tool	H13/P20	$3,000-15,000

Actual cost is quoted per project against your 3D model and specified volume.

The tooling payment trap. Hardware-startup communities keep relearning one lesson about offshore tooling: paying for the tool is not the same as owning it. The warning shared across those threads is that wiring money for tooling — without terms attached — is the classic trap for foreign founders sourcing abroad. Structure the payment the way the work progresses: a deposit at kickoff, balance at first-article approval or die completion, never 100% up front. Put title in writing: the die is your property once paid, engraved with your identification, stored and maintained as your asset, and releasable to any supplier against defined notice. Fixtures, gauges, and CAD files belong in the same agreement — rebuilding them costs nearly as much as the die itself. The full clause checklist is on the die casting tooling ownership page.

---

Prototype and Soft Tooling: De-Risking Before Production Dies

A production die is a commitment: weeks of build time, full H13 cost, and geometry frozen in heat-treated steel. Soft tooling — a P20 or lower-grade prototype die, sometimes a unit-die insert — exists to buy information before that commitment. Engineering forums where buyers and toolmakers compare routes converge on the same division of labor: a soft tool is for validating the design and the process, not for pretending to be a production die at a lower price.

What a prototype die de-risks: form-fit-function with real castings from the production alloy, as-cast surface behavior on cosmetic faces, shrinkage and distortion tendencies, gating assumptions, and — for development programs — the first small production quantities that keep a project moving while the production tool is being built.

What it does not tell you: anything about tool life at volume (thermal fatigue lives in the H13 decision), cycle time at production rates, or multi-cavity behavior — a single-cavity P20 cannot validate a four-cavity production layout.

When to skip it: the design is mature (a carryover part or a minor variant of one already in production), the volume path is committed, and DFM review returns no open geometric risks. In that case the prototype die is a second tooling bill — pay once for H13. When the geometry is new, the market is unproven, or the design carries unresolved risk, the cheaper steel is insurance: the right to be wrong at $3,000-6,000 instead of $10,000-10,020,000.

The practical sequence for new programs: soft tool → first-article and fit validation → design freeze → production H13 ordered against frozen geometry → PPAP on the production tool. The two tooling spends overlap only when the design changes after the production die is cut — which is the outcome the sequence exists to prevent.

---

Five Ways to Cut Tooling Cost at Low Volume

1. Match die steel to expected shots. P20 pre-hardened steel machines faster and costs 30-40% less than heat-treated H13. For zinc programs, and for aluminum dies expected to see under roughly 20,000 shots, P20 delivers identical dimensional quality — H13's thermal-fatigue advantage only pays off over long production runs. For committed programs heading past that shot count, H13 avoids paying for the same die twice.

2. Use a unit die. A unit die puts only the cavity inserts — the geometry-specific steel — into a standardized master frame that remains clamped on the machine. You pay for inserts rather than the complete die set: frame steel, clamping rails, and the shot opening are shared across programs. Unit dies suit small, straight-pull parts; the shared frame limits room for slides, so parts with undercuts still need a dedicated die.

3. Build the die on a modular base. If variants are likely — size changes, regional specifications, next-generation revisions — the initial tool is built as a permanent base with replaceable cavity inserts. The base is bought once; each variant needs only a new insert at $3,000-15,000 instead of a complete new die.

4. Eliminate slides through DFM. Each side-pull slide adds $3,000-10,000 in mechanisms, machining, fitting, and future maintenance, and creates a parting surface that must seal against flash. Before the drawing freezes, a DFM review can rotate undercut features into the die-open direction or convert blind pockets to through-holes — removing slides without changing part function. KastMfg provides this review free with every RFQ.

5. Simplify the parting line and defer cosmetics. A flat, straight parting line machines faster, seals better against flash, and needs less fitting than a stepped or angled one. Standard cavity finish is adequate for functional parts; textures and mirror polish can be added in a later revision if the program's cosmetics demand them.

---

When Die Casting Wins Even at Low Volume

If the part's requirements can only be met by die casting, tooling cost becomes secondary — specify the process and minimize the tooling spend using the strategies above.

Thin walls. Aluminum die casting holds walls of 0.8-1.2 mm over large areas; zinc reaches 0.4 mm. Sand casting needs roughly 3 mm minimum wall in aluminum. Machining a thin-walled geometry from billet wastes most of the stock — at 200 pieces, ten-plus hours of machining per part exceeds any tooling amortization.

Tight as-cast tolerances. Die casting holds CT4-CT6 per ISO 8062, roughly ±0.1-0.3 mm on typical features. Sand casting delivers CT10-CT13 — at a 40-63 mm dimension, a total tolerance band of 1.6-3.2 mm. If mating interfaces must hold tolerance without secondary machining, sand is eliminated regardless of volume.

Surface and repeatability. As-cast die cast surfaces run Ra 0.8-3.2 μm versus 6.3-25 μm for sand — the difference between a finish that ships and one that requires machining before coating. Every shot replicates the cavity identically, including fine detail, sealing lands, and cosmetic faces.

Production-intent prototypes. A machined prototype validates geometry; it does not validate process. Only castings from the production alloy and process reveal pressure tightness, as-cast surface behavior, and shrinkage patterns — data a startup needs before committing to a market launch or a funded production round.

---

When to Choose Investment or Sand Casting Instead

Straight guidance, including the cases where the honest answer is not die casting. KastMfg runs investment casting programs alongside die casting, so this comparison costs us nothing.

Choose investment casting when:

• Aluminum annual volume sits below the die casting crossover of roughly 5,000-10,000 pieces and the geometry favors it: internal passages, zero-draft features, undercuts a two-piece die cannot pull. The detailed crossover analysis is on our aluminum investment casting page.
• The alloy must be steel, stainless, or bronze — ferrous alloys cannot be die cast.
• The part needs T6 heat treatment on a complex shape. Die castings carry gas porosity from turbulent fill that can blister the surface at solution temperature.
• Wax tooling is genuinely cheaper — $2,000-5,000 for a simple wax die versus $10,000-20,000 for an H13 die — but per-part cost stays higher, so the advantage fades as volume grows.

Choose sand casting when:

• Volume is very low — tens to a few hundred pieces — and walls are thick.
• CT10-CT13 tolerances and Ra 6.3-25 μm surfaces are acceptable, or every critical face will be machined anyway.

Consider permanent mold as the middle route. Gravity-filled steel molds run $2,000-25,000 in tooling with a volume sweet spot of 500-10,000 pieces per year, lower porosity than high-pressure die casting, and T6 heat treatment possible on alloys like A356. Full trade-offs: die casting vs permanent mold.

---

Scaling From Low Volume to Production — Without Retooling

The expensive low-volume mistake is designing for one process and re-tooling when volume arrives. Three rules prevent it:

1. Design for the production process from day one. Draft angles, uniform walls, production alloy (ADC12/A380-class aluminum, Zamak zinc). A part prototyped as a machined billet and later converted to die casting is a redesign plus new tooling. A part designed for die casting scales unchanged.

2. Buy tooling once, at the right level. Committed programs with a defined volume path should start on H13 production tooling rather than paying for a P20 tool and then a production tool. An H13 aluminum die delivers 100,000-500,000+ shots; a zinc die exceeds 300,000-301,000,000. A program starting at 2,000 pieces per year and compounding at 30% annually takes over a decade to reach 100,000 shots — one die serves the entire growth curve. Where volume is genuinely uncertain, use the bridge strategy: a $3,000-6,000 P20 prototype tool validates the design now, and the H13 production tool is ordered when forecasts firm. Total spend is higher than going straight to H13, but the exposure before commitment is capped at the prototype tool.

3. Scale within the die, not around it. KastMfg builds low-volume dies with growth paths: single cavities that accept multi-cavity insert upgrades, modular bases that accept variant inserts, and in-house toolmaking (15 CNC machine tools) that maintains and repairs the die across its life. First-article and PPAP documentation generated during the pilot run carries into production, so qualification does not restart when volumes grow.

Machine capacity scales with the program. With 16 cold-chamber machines plus hot-chamber zinc cells spanning 80T to 1,600T, a part qualified at 500 pieces per year does not need a new supplier at 500,000 — the same engineering team, quality system (ISO 9001:2015, IATF 16949 compliant processes), and documentation carry forward.

---

Frequently Asked Questions

What is the minimum order quantity for low-volume die casting?

KastMfg accepts programs from 50 pieces. Below roughly 300-500 pieces per run, setup and melt losses dominate unit cost, so prototype-tier pricing applies. The breakeven math above tells you where production-tier economics begin.

At what volume does die casting become cheaper than machining or sand casting?

Apply the formula: tooling cost ÷ unit cost difference. Typical results: a few hundred to roughly 1,000 lifetime pieces against CNC machining, 2,000-5,000 against sand casting, and about 5,000-10,000 pieces per year against investment casting. Exact figures are quoted per project.

Will I need new tooling when my volume grows?

Not if the part is designed for die casting from the start and the die is built with growth in mind. H13 dies outlast most low-volume programs' entire growth curve, and cavity upgrades or added inserts extend capacity within the same tool design. Only a geometry change forces new tooling.

Can low-volume castings serve as production validation samples?

Yes. Castings from production-intent tooling in the production alloy support FAI and PPAP documentation, which is why development programs use them for design freeze and regulatory files before committing to volume.

Is die casting worth it for 100 to a few thousand units?

Often not — but "not" is a starting point, not a verdict. The consensus you will get on manufacturing forums for a one-off bracket or a hobby run is blunt: at a few hundred units, skip the mold and go to a fabricator, machine shop, or sheet-metal house, because the tooling does not amortize. Published cost guidance puts the typical die casting break-even closer to 1,000–10,000+ units, and simple, small, single-cavity parts can justify tooling at the low end of that band. The honest framing: volume alone does not kill or save a die casting program — part complexity does the deciding. A thin-walled, multi-cored enclosure that would need 30+ machining setups from billet can favor die casting at 800 units; a simple plate never will at 8,000. Work the decision as breakeven math with your own numbers, and where tooling does not pay back, see when to choose investment or sand casting instead.

---
