AM60B Magnesium Alloy -Ductility and Impact Resistance for Safety-Critical Structures

AM60B is the second most widely produced magnesium die casting alloy after AZ91D, and the dominant choice for automotive safety-critical structural applications. The designation encodes its composition: A = aluminum (~6%), M = manganese (~0.3%), 60 = nominal percentages, B = high-purity grade with controlled iron, nickel, and copper levels.

The defining difference between AM60B and AZ91D is ductility. AZ91D's 9% aluminum maximizes strength and corrosion resistance but limits elongation to approximately 3%. AM60B's lower aluminum content (6%) reduces the volume fraction of the brittle Mg17Al12 intermetallic phase, allowing the alloy to achieve 8% elongation and dramatically better energy absorption under impact loading. This difference between 3% and 8% elongation is not a minor refinement -it is the reason AM60B is specified for steering wheels, seat frames, and instrument panel structures where controlled deformation under crash loading is a safety requirement.

---

Chemical Composition

Element	Nominal %	Allowable Range
Aluminum (Al)	6.0	5.5-6.5
Manganese (Mn)	0.28	0.24-1.6
Zinc (Zn)	-	0.22 max
Silicon (Si)	-	0.10 max
Copper (Cu)	-	0.010 max
Nickel (Ni)	-	0.002 max
Iron (Fe)	-	0.005 max
Magnesium (Mg)	Balance	-

Per ASTM B94; AM60B high-purity grade

The strict limits on Fe (0.005%), Ni (0.002%), and Cu (0.010%) -the same philosophy as AZ91D -are essential for corrosion resistance. These impurities form galvanic couples with magnesium that accelerate corrosion catastrophically at even trace levels. AM60B's "B" designation confirms these limits are met.

---

Mechanical Properties (As-Cast HPDC)

Property	AM60B	AZ91D (reference)
Tensile strength	220 MPa (32,000 psi)	230 MPa
Yield strength	130 MPa (19,000 psi)	160 MPa
Elongation	8%	3%
Hardness	65 HRB	63 HRB
Compressive yield strength	130 MPa	160 MPa
Shear strength	132 MPa	140 MPa
Impact strength (Charpy, unnotched)	20 J	4 J
Fatigue strength (5x10^8 cycles)	97 MPa	70 MPa

The impact strength comparison is striking: AM60B delivers 20 J versus AZ91D's 4 J -five times the impact energy absorption. This is the most critical difference for crash-relevant automotive applications.

---

Physical Properties

Property	AM60B	AZ91D
Density	1.80 g/cm³	1.81 g/cm³
Weight vs A380 aluminum	34% lighter	34% lighter
Melting range	540-615°C	470-495°C
Casting temperature	650-700°C	640-680°C
Thermal conductivity	61 W/m·K	72 W/m·K
Coefficient of thermal expansion	26 μm/m·°C	26 μm/m·°C
Modulus of elasticity	45 GPa	45 GPa
EMI attenuation	60-100 dB @ 1 GHz	60-100 dB @ 1 GHz

---

The Case for Ductility in Structural Applications

Understanding why AM60B exists as a separate alloy from AZ91D requires understanding how automotive structural components fail -and how they are supposed to fail.

Controlled Deformation vs Brittle Fracture

In a vehicle crash, structural components in the passenger compartment are designed to deform in a controlled, energy-absorbing manner. A steering column that collapses progressively absorbs impact energy. A seat frame that bends without fracturing keeps the occupant restrained. An instrument panel beam that deforms without fragmenting does not become a projectile.

AZ91D's 3% elongation makes it a relatively brittle alloy by casting standards. Under impact loading that exceeds its yield point, AZ91D tends to fracture rather than deform plastically. For non-safety components -instrument panel housings, door inner panels, decorative covers -this is acceptable. For structural members in the occupant cell that must absorb energy during a crash, brittle fracture is a safety failure mode.

AM60B's 8% elongation and 20 J impact strength enable the ductile deformation that crash-relevant structures require. AM60B-based steering wheel armatures, seat frames, and IP crossbeams have been validated in Euro NCAP, IIHS, and FMVSS crashworthiness testing in production vehicles for over two decades.

Fatigue Life

The cyclic stress environments in automotive structures -road vibration, door slam, seat adjustment -subject structural castings to tens of millions of fatigue cycles over a vehicle's service life. AM60B's fatigue strength (97 MPa at 5x10^8 cycles) is 38% higher than AZ91D's (70 MPa), making it the more conservative choice for fatigue-critical applications regardless of the static strength comparison.

---

AM60B vs AZ91D -Decision Guide

Parameter	AM60B	AZ91D
Tensile strength	220 MPa (lower)	230 MPa (higher)
Elongation	8% (much better)	3%
Impact strength	20 J (5x better)	4 J
Fatigue strength	97 MPa (38% better)	70 MPa
Corrosion resistance	Good	Better
Castability	Slightly harder to fill	Excellent
Cost	~Same	Baseline

Choose AM60B when: the part is safety-critical, subject to crash loading, or subject to cyclic fatigue. The typical applications are steering wheels, seat frames, instrument panel beams, door inner structures, and any component where controlled deformation under load is a design requirement.

Choose AZ91D when: the part is a housing, cover, or bracket where maximum static strength and corrosion resistance matter more than impact energy absorption. Most non-safety magnesium die castings -laptop chassis, camera bodies, power tool housings -use AZ91D.

When in doubt, AM60B is the more conservative choice for structural automotive applications.

---

Automotive Applications

AM60B's primary market is automotive structural interior components:

Steering Systems

• Steering wheel armatures (magnesium core inside the padded wheel)
• Steering column shrouds and upper/lower covers
• Steering shaft support brackets

AM60B steering wheel armatures have been standard in European and North American production vehicles since the mid-1990s. The combination of weight reduction (a magnesium armature is 40-50% lighter than equivalent steel), occupant safety (ductile deformation in frontal impacts), and dimensional accuracy (precise mounting of airbag module) makes AM60B the only material seriously considered for this application.

Seat Structures

• Seat back frames and cross members
• Seat pan frames and recliner brackets
• Child seat anchorage points

AM60B seat frames reduce seat mass by 1.5- kg per seat versus steel equivalents, contributing directly to fuel economy and EV range. The fatigue performance supports the required 10-year/150,000-mile seat durability cycle testing.

Instrument Panel Structures

• Cross-car beam (CCB) -the structural member spanning the full vehicle width behind the dashboard
• Instrument panel substrate and bracket systems
• Glove box door frames

The cross-car beam is the single largest magnesium die casting in most vehicles. It must support the steering column, instrument cluster, HVAC system, airbag modules, and body structure attachment points, all while meeting roof crush and side impact requirements. AM60B is the standard alloy for this application.

Body Structure

• Door inner panel structures (lower door mass improves handling)
• A-pillar lower brackets
• Roof rail end caps
• Firewall brackets and mounting components

---

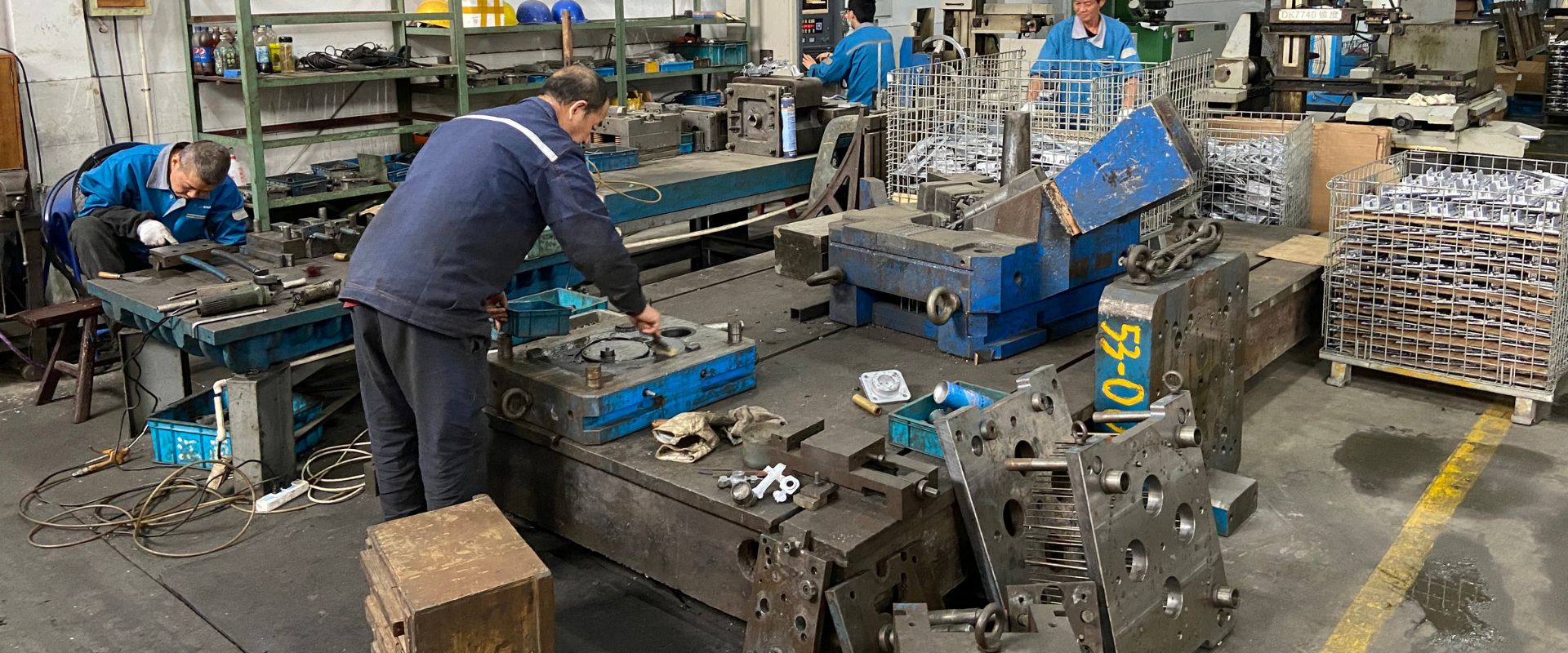

Die Casting Process Considerations for AM60B

AM60B is cast using the same hot-chamber machines as AZ91D, with similar safety requirements (SF6/CO2protective gas, dry sand fire suppression, certified operators). Several process parameters differ from AZ91D:

Metal temperature: AM60B has a wider solidification range (540-615°C, vs 470-495°C for AZ91D) and requires slightly higher casting temperatures (650-700°C). This wider solidification range makes AM60B more susceptible to hot tearing if die temperature is not managed carefully.

Die temperature: The wider solidification range of AM60B requires careful die temperature control -lower die temperatures can cause premature solidification in thin sections (misrun), while higher temperatures can cause hot tearing in thick-to-thin transitions. KastMfg's process engineering team optimizes die thermal management specifically for AM60B programs.

Draft angles: AM60B's lower yield strength (130 vs 160 MPa for AZ91D) means the casting is slightly more prone to distortion during ejection. Ejector pin layout and draft angle specification are reviewed carefully for AM60B structural parts.

Injection velocity: AM60B's higher solidification temperature range requires slightly higher injection velocities to ensure complete fill before premature solidification. KastMfg targets 40-50 m/s gate velocity for AM60B, monitored and logged every shot.

---

Quality and Automotive Compliance

AM60B structural automotive castings are among the most quality-intensive die casting programs. KastMfg's capabilities for AM60B programs:

• IATF 16949 compliant quality management system
• PPAP Level 3 standard, Level 4/5 available
• Full APQP from concept through production launch
• FMEA and control plans specific to AM60B structural casting risks
• Dimensional SPC on all critical features throughout production
• Material certification with OES chemistry report per melt
• Mechanical property testing on witness specimens per batch for structural programs
• CMM first article inspection with 100-piece dimensional study

---

Surface Treatment

Like AZ91D, AM60B requires surface treatment for outdoor or humid environments:

Treatment	Application	Notes
Chromate conversion (DOW 7)	Adhesion promotion before painting	Standard automotive pre-treatment
E-coating (cathodic epoxy)	Full corrosion protection	Coverage on all surfaces including recesses
Powder coating (over e-coat)	Color and additional protection	Standard for visible exterior components
Primer + topcoat system	Interior structural parts	When cosmetic appearance is required

Most automotive AM60B structural castings receive e-coat as a minimum, followed by body color paint where visible.

---

Frequently Asked Questions

Why is AM60B specified instead of AZ91D for steering wheels if AZ91D is stronger?

Tensile strength is not the limiting design criterion for a steering wheel armature. The part is designed to deform progressively in a head-on impact, absorbing energy and collapsing toward the dash while maintaining the occupant restraint geometry. AZ91D's lower elongation means it would fracture rather than deform -creating sharp metal edges and transferring impact energy to the occupant rather than absorbing it. AM60B's 8% elongation allows the controlled deformation that crash test standards require.

Can AM60B be recycled? Is it compatible with AZ91D in remelting?

AM60B is fully recyclable. However, AM60B and AZ91D should not be co-recycled without chemistry verification -their different aluminum contents (6% vs 9%) would produce an off-specification blend. KastMfg segregates magnesium alloy families in scrap handling to maintain alloy integrity.

What is the difference between AM60A and AM60B?

AM60A is an earlier grade with less stringent impurity limits (Fe max 0.030%, Cu max 0.35% vs Fe max 0.005%, Cu max 0.010% for AM60B). The dramatically tighter impurity limits of AM60B reduce corrosion rates by orders of magnitude. All modern automotive applications specify AM60B; AM60A is obsolete for new design.

---
