Die Casting vs Sand Casting vs Investment Casting -Choosing the Right Process

Choosing the wrong casting process can add tens of thousands of dollars to a program through unnecessary tooling cost, excessive per-unit pricing, or inadequate part quality. Each process occupies a distinct niche defined by production volume, geometric complexity, material range, and required quality level.

This guide provides a practical comparison of the three most widely used non-ferrous casting processes -die casting, sand casting, and investment casting (lost-wax) -with a clear framework for making the right choice.

---

The Three Processes at a Glance

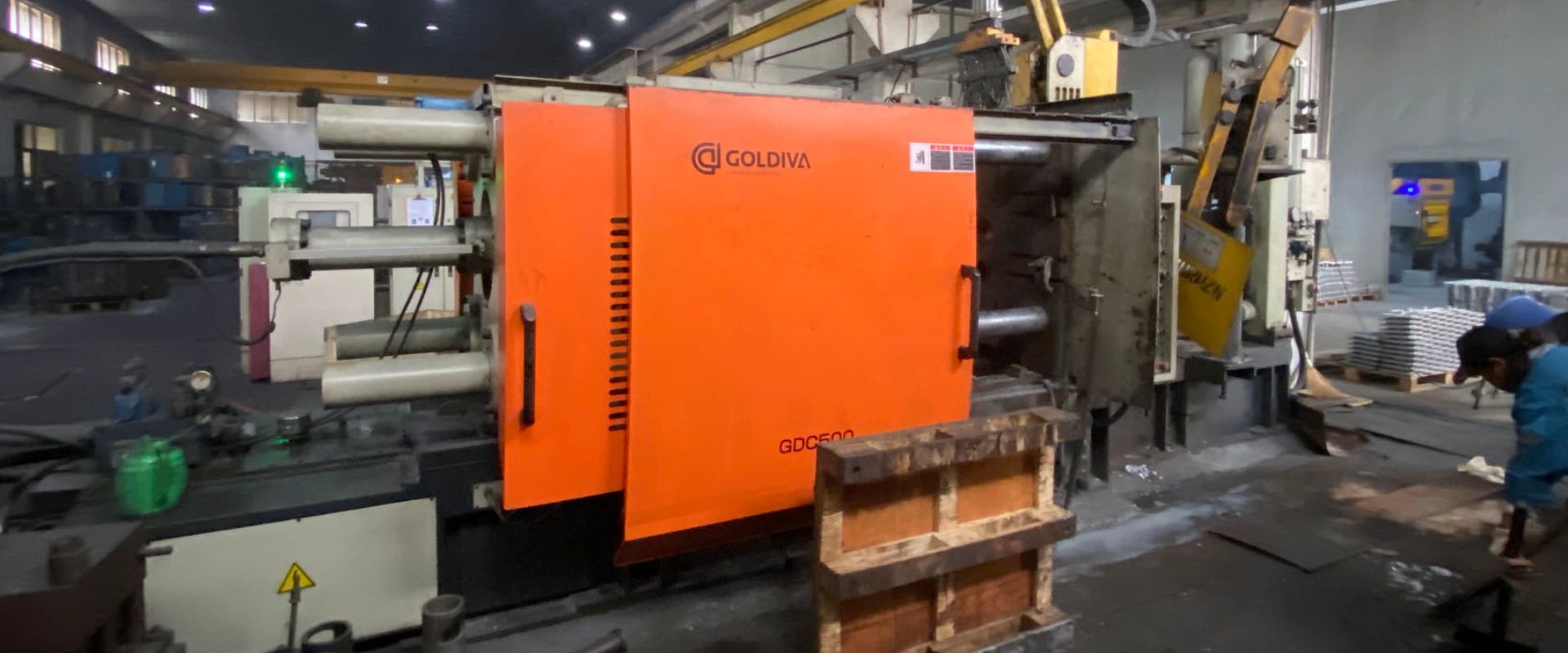

Die Casting

Molten metal is injected under high pressure (10-75 MPa) into a reusable hardened steel die. The die is permanent; it can produce hundreds of thousands to millions of identical castings. High tooling cost is offset by very low per-unit cost and excellent dimensional repeatability.

Sand Casting

Molten metal is poured into an expendable mold made from compacted sand. A new mold is made for every casting. Tooling cost (pattern) is low; per-unit cost is high because each mold requires labor to prepare and is destroyed after use. Almost any metal can be sand cast; geometry complexity is high.

Investment Casting (Lost-Wax)

A wax pattern (the exact shape of the desired part) is coated in ceramic slurry, which hardens into a shell. The wax is melted out, and molten metal is poured into the ceramic shell. The shell is broken away after solidification. Tooling cost is moderate; per-unit cost is high. Achieves very complex geometry and excellent surface finish.

---

Full Comparison Table

Parameter	Die Casting	Sand Casting	Investment Casting
Tooling / pattern cost	$5,000-80,000	$500-5,000	$2,000-20,000
Unit cost at low volume (<1,000)	High (tooling amortized over few parts)	Low-medium	Medium
Unit cost at high volume (100,000+)	Very low	High (labor per mold)	Medium-high
Dimensional tolerance	CT4-CT6 (best)	CT11-CT13 (poorest)	CT4-CT6
Surface finish (as-cast)	Ra 1.6-2.2 μm	Ra 6.3-5 μm	Ra 1.6-2.2 μm
Minimum wall thickness	0.8-1.2 mm	3- mm	0.5-1.0 mm
Maximum part size	Up to 25 kg (HPDC)	Essentially unlimited	Up to ~50 kg
Production volume sweet spot	10,000 -millions	1 -10,000	100 -50,000
Alloys available	Al, Zn, Mg (non-ferrous only)	All metals and alloys	All metals and alloys
Ferrous materials	No	Yes	Yes
Undercuts and complexity	High (with slides)	Very high (with cores)	Very high (intrinsic)
Internal passages	Limited (machined or cored)	Complex cores possible	Complex, intrinsic
Lead time (tooling)	3- weeks	1- weeks	4-10 weeks
Per-unit lead time	Short (seconds per cycle)	Long (hours per mold)	Long (days per batch)
Post-casting machining	Minimal	Significant	Minimal
Heat treatment	Restricted (HPDC); possible (gravity/LPDC)	Yes	Yes

---

When to Choose Die Casting

Die casting is the correct choice when all of the following are true:

Volume is high: Above 10,000 pieces per year, tooling amortization drops to cents per part and die casting's low cycle cost dominates. Below 5,000 pieces, the tooling investment is rarely recovered.

Material is aluminum, zinc, or magnesium: Die casting is limited to non-ferrous alloys. If you need steel, stainless, titanium, or copper, die casting is not an option.

Tolerances and surface finish matter: Die casting produces CT4-CT6 and Ra 1.6-2.2 μm as-cast. Sand casting requires extensive machining to approach these values.

Thin walls are required: Sand casting minimum walls of 3- mm are often too thick for compact designs. Die casting achieves 0.4 mm (zinc) and 1.2 mm (aluminum).

Per-unit cost must be minimized at volume: No other precision metal forming process produces complex non-ferrous parts at lower per-unit cost in high volume.

---

When to Choose Sand Casting

Sand casting is the right choice when:

Volume is low: For 1-1,000 pieces per year, pattern tooling at $500-5,000 is far more economical than die casting tooling at $5,000-5,080,000. Break-even depends on part complexity and per-unit cost difference -typically 5,000-10,000 pieces per year.

The part is very large: Sand casting handles parts of hundreds of kilograms -far beyond die casting machine capacity.

Alloy flexibility is required: Iron, steel, copper alloys, stainless steel, and high-temperature alloys are routinely sand cast. Die casting cannot process these.

Complex internal geometry with cores: Sand casting allows core placement in almost any internal location, enabling complex internal passages without machining.

Heat treatment is required on aluminum: Sand cast aluminum (A356) in T6 condition achieves 280-310 MPa tensile strength -higher than most as-cast die casting alloys -because sand casting's slow solidification and low porosity support T6 treatment.

---

When to Choose Investment Casting

Investment casting is the right choice when:

Geometry is too complex for die casting: Undercuts in all directions, organic shapes, internal passages, and delicate thin features that require slides or machining in die casting are intrinsic to investment casting.

High-performance alloys are required: Superalloys (Inconel, Hastelloy), titanium, stainless steel, and tool steel are routinely investment cast. Die casting cannot process these.

Volume is medium with near-die-casting surface quality: For 100-10,000 pieces requiring Ra 1.6-2.2 μm as-cast surface finish that sand casting cannot achieve, investment casting is the bridge.

Medical, aerospace, or defence applications: Investment casting's near-zero porosity, alloy range, and geometric capability make it standard for these sectors.

---

Die Cast vs Sand Cast Strength -What the Numbers Show

For aluminum specifically:

Alloy and Condition	Process	Tensile Strength	Yield Strength
A380 (as-cast)	HPDC	317 MPa	159 MPa
A356-T6	Sand cast or gravity	280-310 MPa	200-240 MPa
A380-T5	HPDC	~340 MPa	~190 MPa
A356-T6 (LPDC)	Low-pressure die cast	310-330 MPa	220-260 MPa

As-cast HPDC (A380) and T6 sand cast (A356) are broadly comparable in tensile strength. The key difference is that A356-T6 has higher elongation (8-12% vs 3-% for A380) -more ductile and better in impact and fatigue loading. For safety-critical applications where fatigue life is the design driver, sand cast or gravity cast T6 aluminum may outperform HPDC aluminum.

---

Cost Crossover: When Does Die Casting Become Cheaper Than Sand Casting?

The crossover volume depends on:

• Die casting tooling cost (higher)
• Sand casting tooling cost (lower)
• Die casting unit cost (lower)
• Sand casting unit cost (higher)

For a typical medium-complexity bracket:

• Die tooling: $15,000 · Unit cost: $1.50
• Sand tooling: $1,000 · Unit cost: $8.00

Break-even: (15,000 -1,000) / (8.00 -1.50) = 2,154 pieces

Above ~2,000-3,000 pieces per year (depending on part specifics), die casting is more economical. Below that volume, sand casting wins on total cost.

---
