Die Casting vs Forging -Which Process Is Right for Your Metal Part?

Die casting and forging both produce high-volume metal components, but they work through opposite principles: die casting shapes molten metal, while forging shapes solid metal under compressive force. The result is different microstructure, different strength characteristics, different design constraints, and a different cost profile.

---

Process Overview

Die Casting

Molten aluminum, zinc, or magnesium is injected into a hardened steel die at 10-75 MPa. The metal fills complex cavity geometry in milliseconds, solidifies, and is ejected as a near-net-shape part. Produces complex geometry at high volume with tight tolerances.

Forging

A heated metal billet (still solid) is pressed or hammered between dies under forces of thousands of tonnes. The compressive force deforms the grain structure, aligning it with the part geometry and producing exceptional mechanical properties.

---

Comparison Table

Parameter	Die Casting	Forging
Material state during forming	Molten (liquid)	Solid (heated)
Applicable metals	Al, Zn, Mg (non-ferrous only)	Steel, aluminum, titanium, most alloys
Grain structure	Random (solidification)	Aligned (directional flow)
Tensile strength (aluminum)	317 MPa (A380 as-cast)	380-480 MPa (6061-T6 forged)
Fatigue strength	Lower	37% higher than equivalent castings*
Impact resistance	Moderate	High
Porosity	Some (gas porosity risk)	None
Geometric complexity	Very high -undercuts, thin walls, cores	Limited -requires draft, no undercuts
Wall thickness (min)	1.2 mm	3- mm
Dimensional tolerance	CT4-CT6	CT7-CT9 (rougher, more machining needed)
Post-process machining	Minimal	Significant (rough shape only)
Tooling cost	$5,000-80,000	$10,000-150,000+
Unit cost at high volume	Lower	Higher (more machining, heavier blanks)
Volume sweet spot	10,000-millions	1,000-100,000
Part weight range	Up to 25 kg	Up to thousands of kg

*Per University of Toledo study cited in forging industry literature.

---

Strength: Is Die Cast Stronger Than Forged?

For equivalent alloys, forged parts are stronger -particularly in fatigue resistance and impact toughness. Forging aligns the metal's grain flow with the part's load-bearing geometry, while die casting produces a random solidification grain structure.

However, this comparison is often misleading in practice:

• Die casting uses alloys optimized for casting (A380, ADC12), not equivalent to the wrought alloys used in forging
• With T6 heat treatment on vacuum die cast or low-pressure die cast parts, tensile strength approaches forged values
• For most enclosures, brackets, and housings, A380 die casting at 317 MPa is more than adequate -the application doesn't require forged strength
• Die casting's geometric freedom allows thicker ribs and bosses in high-stress areas, compensating through design

The practical rule: if fatigue life and impact toughness are primary design requirements (suspension components, connecting rods, safety-critical structural nodes), investigate forging. For complex-geometry components where weight, thermal performance, and production economics dominate, die casting is typically superior.

---

When to Choose Die Casting

• Complex geometry with thin walls, undercuts, integrated features -forging cannot produce these without extensive machining
• Non-ferrous alloys: aluminum, zinc, magnesium -ideal candidates
• High production volumes where per-unit cost matters

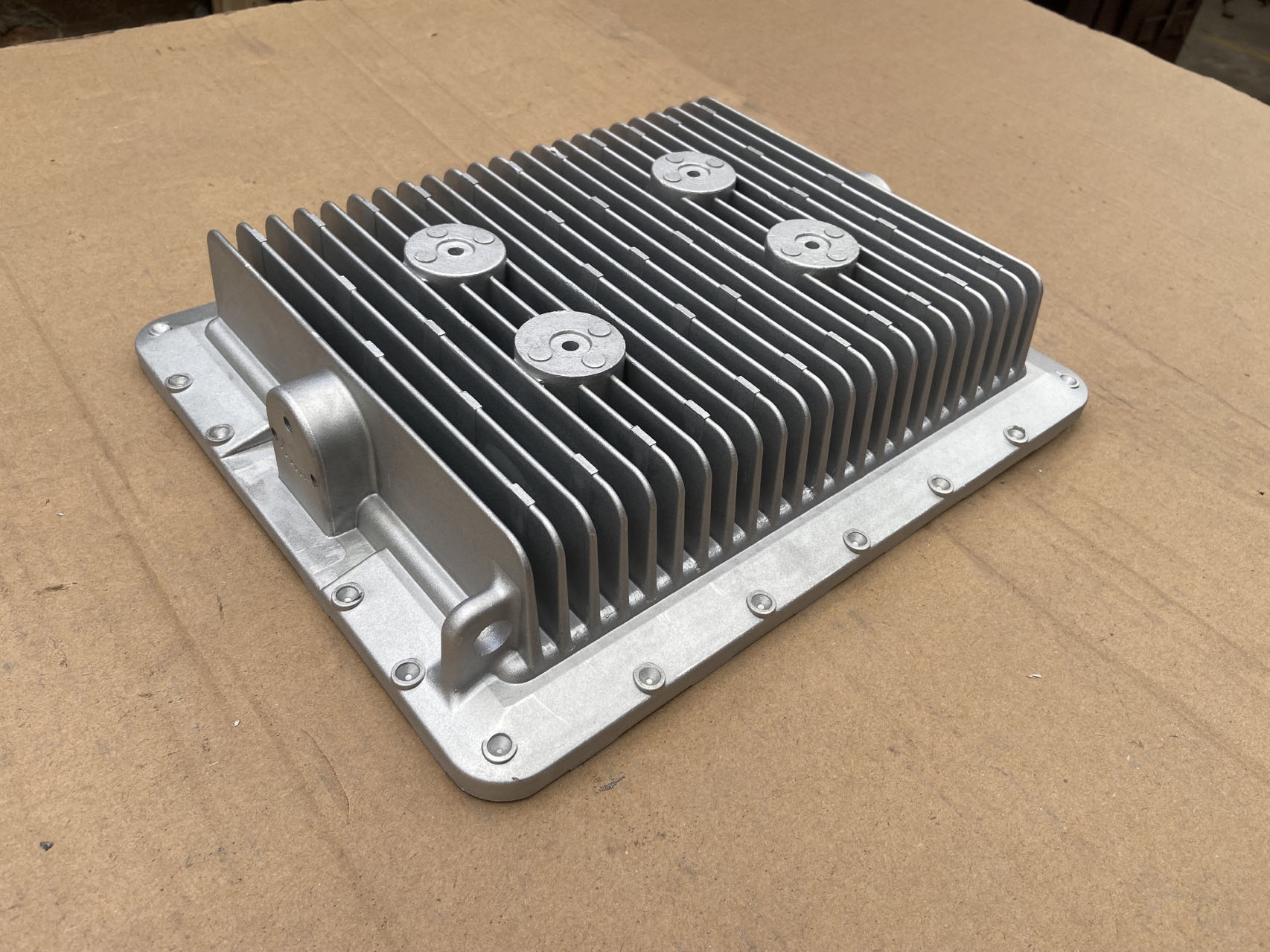

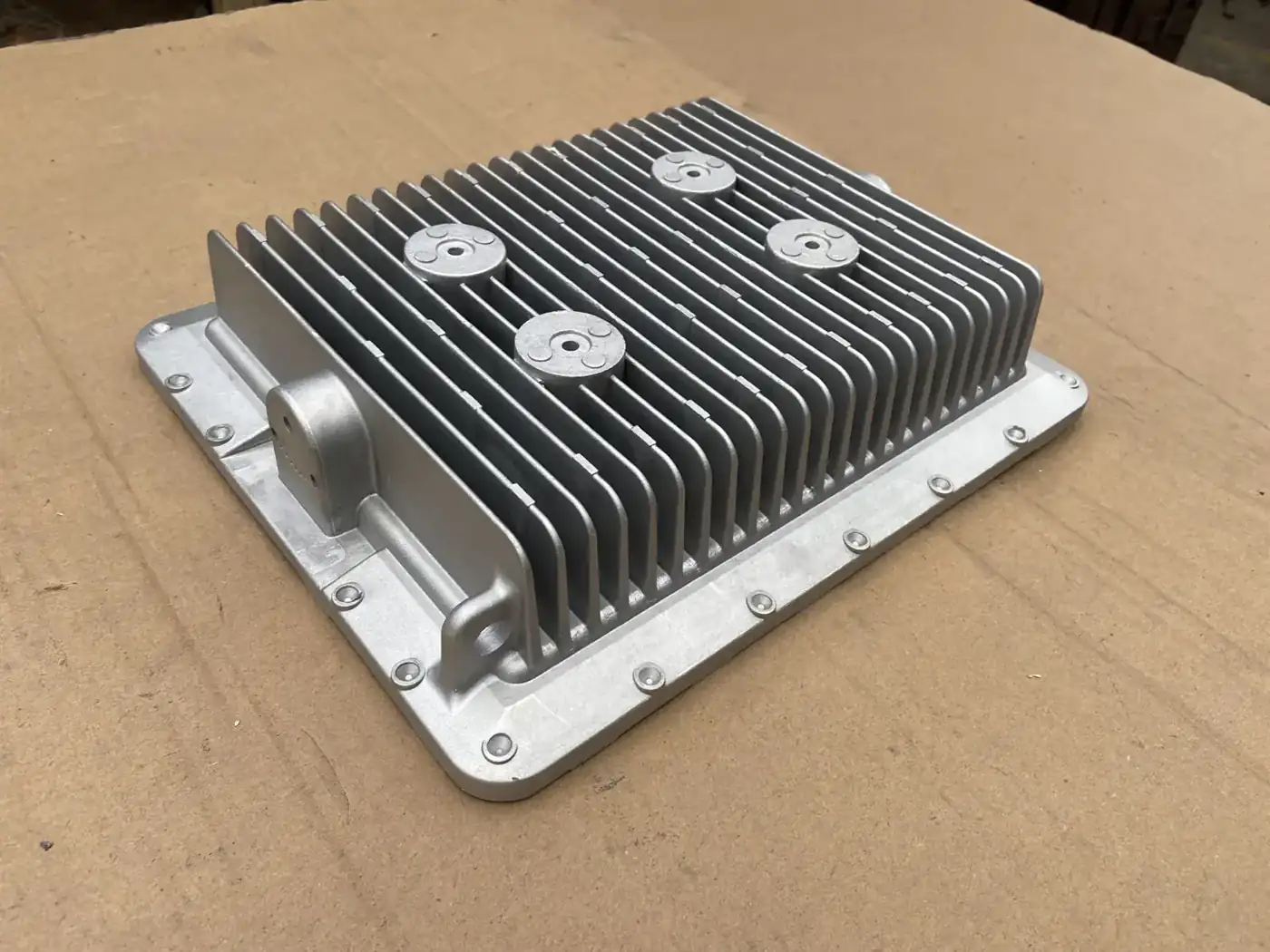

• Thermal management (heat sinks, motor housings) -die cast aluminum's conductivity is optimal
• Tight dimensional tolerances as-formed -less machining required vs. forgings

When to Choose Forging

• Maximum fatigue and impact strength required -rotating shafts, crankshafts, connecting rods, safety-critical suspension parts
• Steel or titanium alloys required -cannot be die cast commercially
• Very large parts -forging handles components far beyond die casting machine capacity
• Simple geometry -when the part has no undercuts or complexity, forging's strength advantage may justify the choice

---

Cost Comparison at 50,000 Parts/Year

Cost Element	Die Casting (A380 Al bracket)	Forging (6061 Al bracket)
Tooling	$15,000	$35,000
Tooling amortized (50K)	$0.30/pc	$0.70/pc
Material	$0.80/pc	$1.20/pc (heavier blank)
Forming	$0.60/pc	$0.90/pc
Machining	$0.40/pc	$1.80/pc (more stock removal)
Finishing	$0.30/pc	$0.30/pc
Total	~$2.40/pc	~$4.90/pc

Indicative only -actual costs vary by geometry, volume, and supplier.

---

FAQ

Is die cast aluminum as strong as forged aluminum?

Not in absolute terms -forged 6061-T6 (310 MPa yield) exceeds die cast A380 (159 MPa yield). However, for most enclosures, housings, and brackets, A380's properties are sufficient. Vacuum die casting + T6 treatment narrows the gap significantly.

Can you forge zinc or magnesium?

Zinc forging is uncommon and rarely cost-effective. Magnesium can be forged but is typically die cast for most applications due to process economics.

Which process produces less waste?

Die casting is near-net-shape with minimal material waste (gates and runners are recycled). Forging produces significant machining chips if the part requires extensive post-machining.

---
