Die Casting Tooling Cost -What Drives It and How to Reduce It

Die casting tooling is typically the largest single upfront investment in a casting program. A simple single-cavity prototype die costs $3,000-3,008,000. A complex multi-cavity production tool with side-pull slides can reach $80,000 or more. Understanding what drives tooling cost -and how to influence those drivers -is one of the highest-leverage decisions available to engineers and buyers at the program planning stage.

This guide explains every factor that affects die casting tooling cost, provides realistic price ranges, and presents five proven strategies for reducing tooling investment without compromising part quality.

---

What Determines Die Casting Tooling Cost?

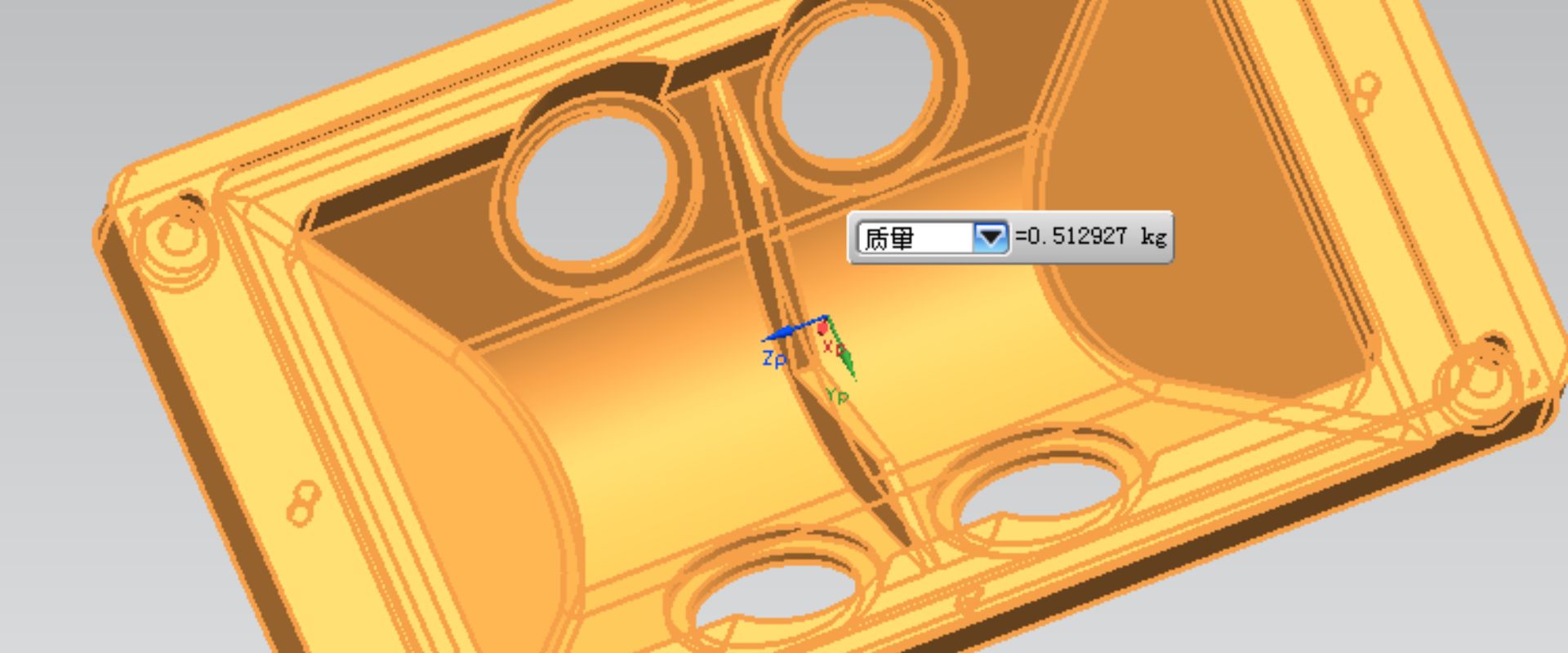

1. Part Complexity -The Dominant Factor

Part geometry determines 60-70% of tooling cost. The key complexity drivers:

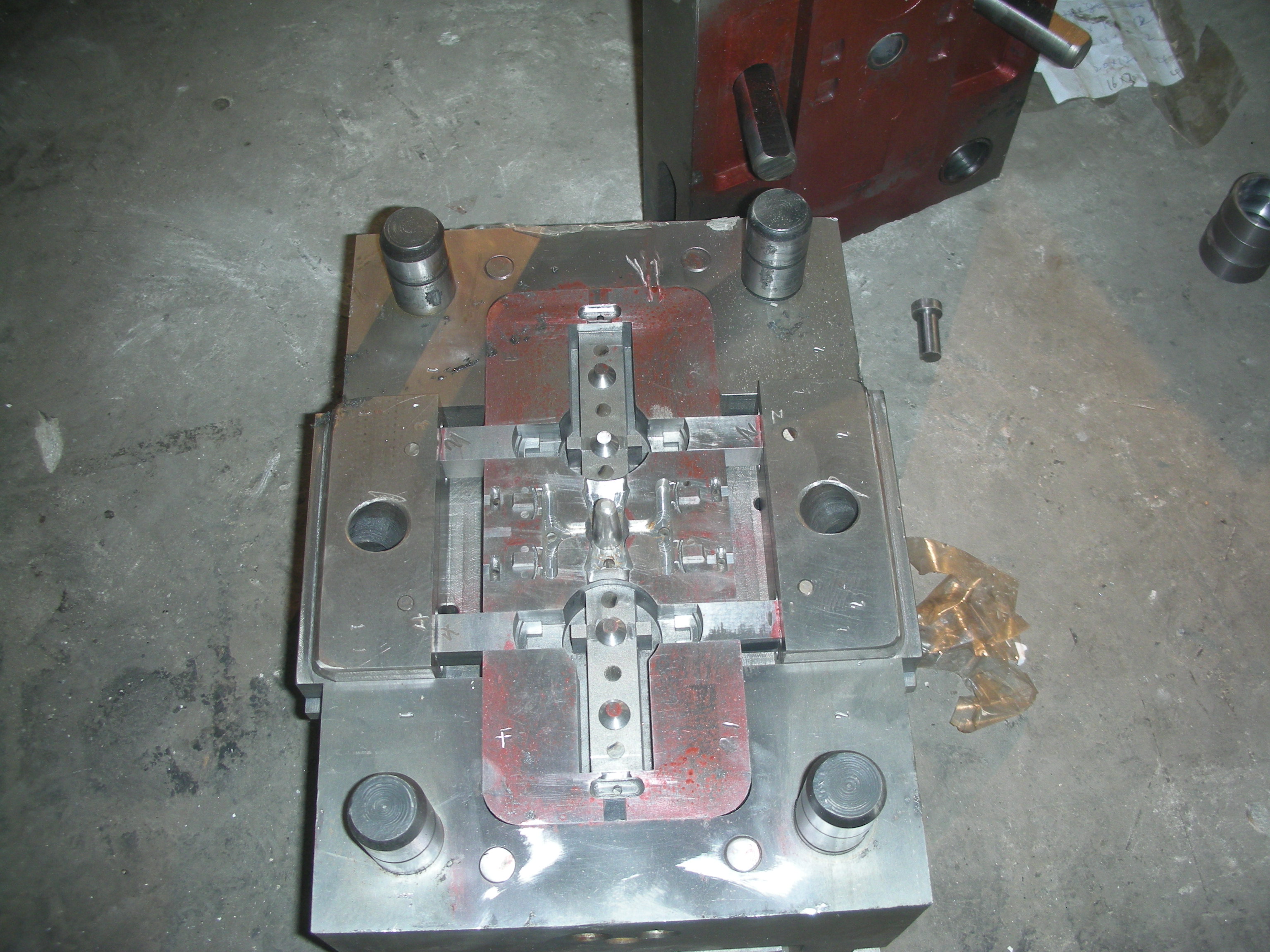

Undercuts and slides: Every undercut (feature that prevents straight die opening) requires a side-pull slide. Each slide adds a hydraulic or mechanical mechanism to the die, requires precise machining and fitting, and creates a parting surface that must seal against flash. A single slide adds $3,000-10,000; three slides can add $25,000+.

Cores: Internal passages and pockets require steel cores projecting into the cavity. Long, thin cores are prone to deflection and breakage and require careful cooling design -adding cost.

Part size: Larger parts require larger die sets (more steel), larger CNC machines, and longer machining time. A die for a 500 mm x 400 mm aluminum housing costs significantly more than a die for a 100 mm x 80 mm bracket.

Surface finish requirements: Standard as-machined die cavity surfaces are adequate for functional parts. Textured surfaces (grain, leather, matte), high-polish cosmetic surfaces, and EDM (spark erosion) finishing add significant cost.

2. Steel Grade

Grade	Hardness	Cost Premium vs P20	When Specified
P20 pre-hardened	28-32 HRC	Baseline	Prototype, short-run (<20,000 shots), zinc
H13 hardened	44-48 HRC	+30-40%	Production aluminum/magnesium dies
H13 premium grade	44-48 HRC	+50-60%	High-cycle, demanding applications
S7 / tool steel inserts	54-58 HRC	Selective	Gate inserts, high-erosion areas

For aluminum production dies, H13 is mandatory -P20 cannot withstand the thermal cycling of aluminum casting temperatures. For zinc (casting at 385-390°C), P20 is suitable for most production volumes, saving 30-40% on steel cost.

3. Number of Cavities

A multi-cavity tool produces multiple identical parts per shot, reducing unit cost at the expense of higher tooling cost. The relationship is non-linear:

Cavities	Relative Tooling Cost	Unit Cost Reduction
1	1.0x	-
2	1.5-1.7x	~40%
4	2.0-2.5x	~60%
8	3.0-4.0x	~75%

Multi-cavity tooling is economically justified above a certain annual volume -typically when the unit cost savings recover the additional tooling investment within 12-18 months.

4. Cooling System Complexity

Effective die cooling is essential for cycle time and part quality, but complex cooling requires additional machining, pressure testing, and fitting time. Baffles, bubblers, and copper inserts in deep cores add cost.

5. Lead Time Requirements

Standard tooling lead times (5- weeks for H13 production dies) are priced at normal rates. Expedited tooling (2- weeks) commands a 25-30% premium as it requires priority scheduling, overtime, and sometimes outsourcing of specific operations.

---

Typical Tooling Cost Ranges

These ranges are indicative -actual costs depend on part geometry, alloy, and your supplier's location and overhead. KastMfg provides itemized quotations on every program.

Tool Type	Steel	Approximate Cost (USD)
Simple prototype die (single-cavity, no slides)	P20	$3,000-6,000
Medium prototype die (single-cavity, 1 slide)	P20	$6,000-12,000
Production die (single-cavity, no slides, aluminum)	H13	$10,000-20,000
Production die (single-cavity, 1- slides, aluminum)	H13	$18,000-35,000
Production die (single-cavity, 3+ slides, complex)	H13	$30,000-80,000
2-cavity production die	H13	$18,000-45,000
4-cavity production die	H13	$28,000-65,000
Insert for modular tool (variant)	H13/P20	$3,000-15,000
Family tool (2 different parts, 1 die)	H13	$20,000-50,000

---

5 Strategies to Reduce Tooling Cost

Strategy 1: Eliminate Slides Through Design

Every slide removed from the tool saves $3,000-10,000 in tooling and reduces cycle time, maintenance frequency, and flash risk. Before finalizing a design with undercuts, ask:

• Can this feature be rotated to pull in the main die opening direction?
• Can a through-hole replace a blind pocket that creates an undercut?
• Can two separately-toleranced features be consolidated into one that doesn't require a slide?

KastMfg's free DFM review specifically identifies which undercuts require slides and proposes design alternatives that eliminate them without compromising function.

Typical savings: 10-15% reduction in tooling cost per slide eliminated

Strategy 2: Match Steel Grade to Production Volume

Using H13 when P20 would suffice wastes 30-40% of steel cost. Match the steel grade to the expected production volume:

• Under 20,000 shots total →P20 for all alloys including aluminum
• 20,000-30,000 shots in aluminum →Evaluate H13 vs P20 with selective H13 inserts at high-wear areas
• Over 80,000 shots in aluminum →H13 mandatory

Typical savings: 30-40% on steel cost for prototype and short-run programs

Strategy 3: Family Tooling for Related Parts

If you have multiple small, geometrically related parts (left/right hand pairs, size variants of the same bracket, related housings), a single tool with multiple cavities for different parts can be more economical than separate single-cavity tools.

Example: Two related parts that each require a single-cavity H13 die at $15,000 each = $30,000 total. A family tool with both parts sharing one die base: $22,000-22,026,000.

Typical savings: 25-35% vs separate tools for 2 related parts

Strategy 4: Modular Insert Architecture for Variants

If your program has anticipated future variants (size changes, feature additions, regional specifications), design the initial tool with a modular cavity insert system. The die base -the most expensive component -is purchased once. Each variant requires only a new cavity insert at a fraction of the complete tool cost.

Example: Initial tool (base + insert 1): $20,000. Each subsequent variant insert: $5,000-8,000 vs $15,000 for a complete new tool.

Typical savings: 60-70% per variant vs a complete new tool

Strategy 5: DFM Optimization to Extend Die Life

Poor part design -sharp corners, inadequate draft, thin steel conditions in the die, excessive gate velocity -accelerates die wear and reduces die life. Premature die replacement or major repair is the most expensive hidden tooling cost.

A well-DFM'd aluminum die running at optimal parameters might last 150,000 shots. The same part with inadequate draft and excessive gate velocity might require major repair at 60,000 shots. Over a 300,000-piece program, that's the difference between one replacement die and three.

Typical savings: 15-20% of total tooling cost over the program lifetime

---

Tooling Cost vs Unit Cost -The Real Calculation

The purpose of tooling is to produce parts economically. Evaluate tooling decisions on total program cost, not tooling cost in isolation:

Total program cost = Tooling cost + (Unit cost x Volume)

At 100,000 pieces per year over 5 years:

• H13 production die: $20,000 tooling + $2.50/unit x 500,000 = $1,270,000
• P20 prototype die (replaced 3x): $6,000 x 3 = $18,000 tooling + $3.50/unit x 500,000 = $1,768,000

The H13 die costs more upfront but less over the program. Conversely, for a 2-year program at 10,000 pieces/year:

• H13 die: $20,000 + $2.50 x 20,000 = $70,000
• P20 die: $6,000 + $3.50 x 20,000 = $76,000

At low volume, the additional unit cost of a less-optimized P20 die barely exceeds the tooling savings.

---

Frequently Asked Questions

Why do Chinese die casting suppliers offer lower tooling costs?

Lower labor rates for skilled CNC machinists and tool fitters account for most of the difference. H13 steel and precision machine tools are global commodities -their cost is similar worldwide. The difference is labor. KastMfg's in-house tool shop employs experienced H13 die fabrication specialists at labor rates significantly below equivalent Western shops, passing the savings directly to customers.

How long does tooling take to pay for itself?

Divide the tooling cost by the per-part saving vs. the next-cheapest alternative (usually sand casting or machined billet). A $15,000 die that saves $5.00/part vs sand casting pays for itself in 3,000 parts. A $40,000 die saving $3.00/part requires 13,333 parts to break even.

Can I get a tooling cost estimate before sending a drawing?

We provide rough-order-of-magnitude estimates based on part description (size, alloy, approximate complexity level). For an accurate quote, we need a 2D drawing or 3D CAD file. Send to yaoqingpu1983@gmail.com for a 48-hour response.

---
