Die Casting MOQ and Tool Life -What Buyers Need to Know

Two of the most common procurement questions for die casting: "What is your MOQ?" and "How long will the tooling last?" Both questions are more nuanced than a single number suggests. Understanding the underlying economics lets you make better decisions about order sizing and tooling investment.

---

Minimum Order Quantity (MOQ) -The Real Story

KastMfg has no formal MOQ. We accept programs from 50 pieces.

But practical economics create soft minimums worth understanding:

Setup Cost Amortization

Every production run incurs setup cost regardless of quantity: machine preparation, die temperature warmup, parameter verification, first-shot inspection, and process documentation. At KastMfg, setup time is typically 1.5- hours depending on die complexity.

At a machine rate of $80-120/hour, setup cost is $120-360 per run. Spreading this over quantities:

Run Quantity	Setup Cost Per Part
100 pieces	$1.20-3.60
500 pieces	$0.24-0.72
2,000 pieces	$0.06-0.18
10,000 pieces	$0.012-0.036

Below about 300-400 pieces per run, setup amortization begins to represent a meaningful fraction of total part cost. This is the practical floor for economical production runs -not because KastMfg refuses smaller orders, but because the economics are poor for both parties.

Ocean Freight Minimums

For international shipments, LCL (less-than-container-load) ocean freight has a practical minimum: below approximately 50-60 kg net weight, air express is often more economical than ocean LCL when transit time premium, LCL consolidation cost, and minimum freight charges are factored.

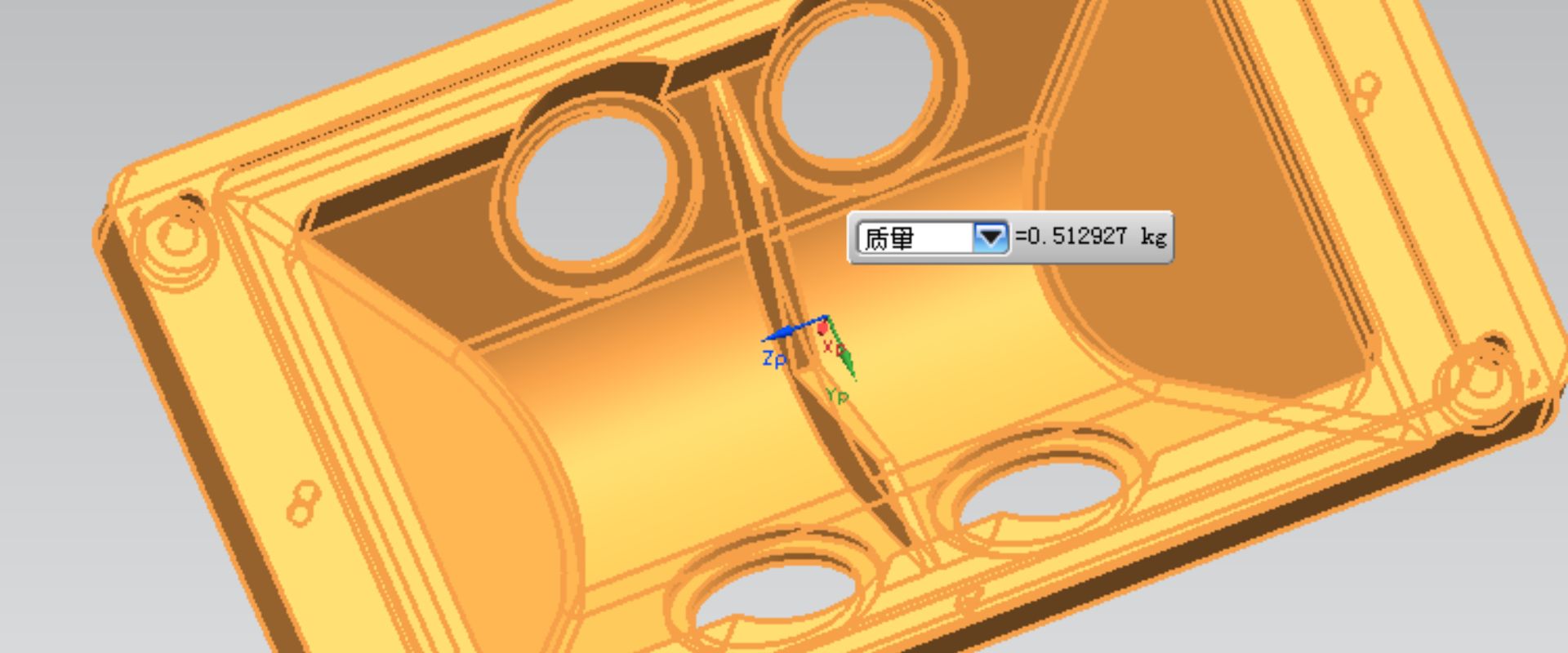

At typical aluminum die casting densities:

• 50 kg net weight >=200 pieces at 250 g each
• 50 kg net weight >=1,000 pieces at 50 g each

Programs with annual volumes below 2,000-3,000 pieces typically ship by air. Above this, ocean freight becomes economical.

KastMfg's Practical Recommendation

Annual Volume	Run Strategy
Under 1,000 pieces/year	1- runs/year of 500+ pieces; air freight
1,000-2,000 pieces/year	3- runs/year of 300-500 pieces; ocean or air depending on weight
5,000-10,000 pieces/year	Monthly or quarterly runs of 500-1,000 pieces; ocean freight
Over 20,000 pieces/year	Scheduled weekly or bi-weekly production; ocean FCL

---

Tool Life -What to Expect and Plan For

Tool life is not a fixed number -it depends on alloy, injection parameters, die maintenance quality, and acceptable part quality threshold. Here are realistic expectations based on KastMfg's production history:

Expected Die Life by Alloy

Alloy	Process	Conservative Estimate	Optimistic (Well-Maintained)
Zinc Zamak 3/5	Hot chamber	300,000 shots	800,000-1,000,000+ shots
Zinc ZA-8	Hot chamber	200,000 shots	500,000 shots
Aluminum A380	Cold chamber	80,000 shots	120,000-150,000 shots
Aluminum A413	Cold chamber	60,000 shots	100,000 shots
Aluminum A360	Cold chamber	80,000 shots	120,000 shots
Magnesium AZ91D	Hot chamber	100,000 shots	180,000-200,000 shots

These are shots to major maintenance (cavity rework or insert replacement), not total die abandonment. After major maintenance, a well-designed H13 die typically returns to near-original quality for another cycle.

Why Die Life Matters for Total Program Cost

A program running 100,000 pieces/year on a $20,000 H13 die with expected life of 80,000 shots needs a new die every 0.8 years -tooling cost of $25,000/year. The same program with optimized parameters achieving 130,000 shots reduces tooling cost to $15,400/year -a 38% reduction with no change in unit cost.

Factors KastMfg controls to maximize die life:

• Gate velocity: kept below the soldering threshold for each alloy
• Die lubrication: adequate spray coverage on every cycle, monitored by vision system
• Die temperature: stable within ±10°C of target to minimize thermal fatigue cycling
• Maintenance schedule: parting face inspection every 30,000 shots (aluminum), gate insert inspection every 50,000 shots
• H13 hardness specification: 44-48 HRC -verified on every new tool before production

What Tooling Ownership Means Over a Long Program

For a 10-year program at 100,000 pieces/year with A380 aluminum (80,000 shot life, $18,000/die):

• Total dies needed: 10 years x 100,000/year / 80,000 shots/die = 12.5 dies
• Total tooling cost over 10 years: 12.5 x $18,000 = $225,000
• Per-part tooling cost: $225,000 / 1,000,000 pieces = $0.225/part

For the same program with zinc Zamak 5 (500,000 shot life, $10,000/die):

• Total dies needed: 1,000,000 / 500,000 = 2 dies
• Total tooling cost: 2 x $10,000 = $20,000
• Per-part tooling cost: $20,000 / 1,000,000 = $0.020/part

This 11x difference in tooling amortization is one reason zinc die casting has lower unit cost than aluminum on high-volume small parts, despite zinc's higher material density.

---

Multi-Cavity Tooling -Changing the MOQ Calculus

Multi-cavity tooling produces multiple identical parts per machine cycle. This changes the relationship between run quantity and machine cost per part:

Cavities	Tooling Cost	Parts Per Shot	Unit Cost at 100,000/year
1	$15,000	1	Baseline
2	$22,000 (+47%)	2	~55% of 1-cavity unit cost
4	$32,000 (+113%)	4	~35% of 1-cavity unit cost
8	$52,000 (+247%)	8	~22% of 1-cavity unit cost

The break-even volume at which a 2-cavity tool pays back its additional investment versus 1-cavity production: approximately $7,000 tooling premium / ($X saved per part) -typically 30,000-40,000 pieces depending on machine rate.

For programs above 50,000 pieces/year, multi-cavity tooling should always be evaluated during the tooling quotation process.

---

Tool Life Warranty and Customer Ownership

At KastMfg:

All tooling is customer-owned from the moment full tooling payment is received. Customers receive complete die drawings, material certificates, and maintenance logs. Tools can be transferred to another facility at any time.

Tooling life estimates are provided at quotation based on alloy, part geometry, and projected parameters. These are estimates based on experience -not guarantees. Actual life depends on production conditions.

Maintenance records are maintained throughout the tool's life and available to customers. When a die approaches its maintenance interval, KastMfg notifies the customer with an assessment and cost estimate before proceeding.

---
