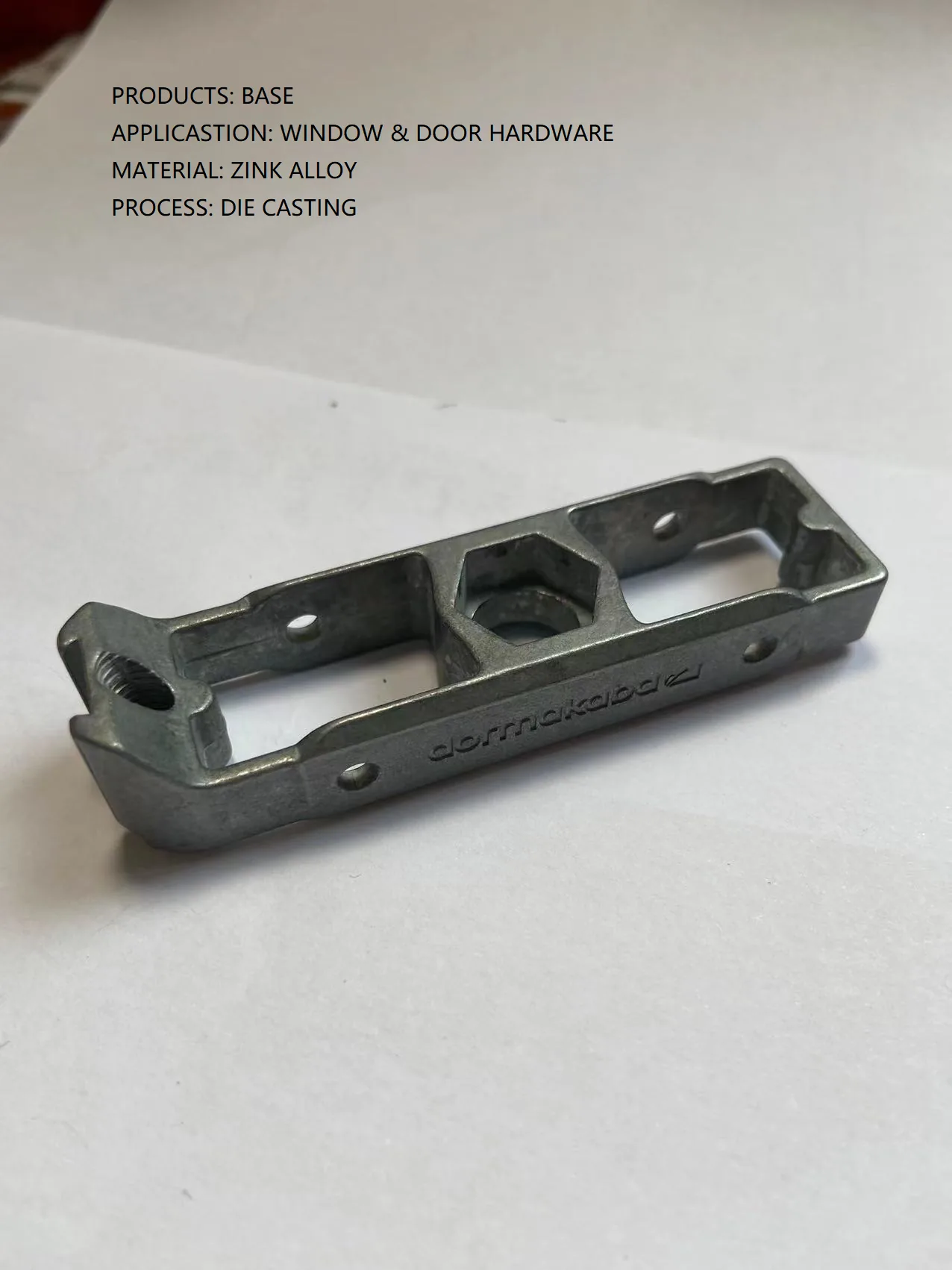

# Lock Base -Window & Door Hardware
Lock base components for window and door hardware are produced at KastMfg in Zamak 5 zinc alloy using hot-chamber high-pressure die casting. Zamak 5's 1% copper addition over Zamak 3 provides the higher tensile strength (331 MPa) and hardness (91 HRB) required for load-bearing lock body applications, while maintaining the smooth as-cast surface finish (Ra 0.8-1.6 μm) essential for decorative electroplating.
Hot-chamber die casting of Zamak 5 achieves CT4-CT6 dimensional tolerances as standard, typically eliminating the need for post-cast machining of functional features. Die life on zinc hot-chamber tools routinely exceeds 500,000 shots, making this process highly economical for high-volume hardware production.
Material
Zamak 5 Zinc Alloy
Process
Hot Chamber High-Pressure Die Casting (HPDC)
Industry
Hardware / Building Products
Casting tolerance
Per drawing
Product Visual Plan
Supporting visuals for this product
These slots now use your current asset library, and they can be replaced product by product as you add more dedicated photos.
Secondary Product Angle
Use a second hero-quality image from another angle or orientation to show wall thickness, geometry depth, or mounting features.
Best as a clean tabletop component photo
Machined / Finished Detail
Add a close-up of machined bores, sealing faces, threads, coating finish, or critical dimensional features.
Best as a detail crop or macro shot
Application Context Photo
Reserve one slot for the component installed in an assembly, tooling fixture, or end-use product context.
Best as an in-application photo
Product Specifications
Surface Finishing Options
Packaging
- **Standard:** Pearl cotton and bubble bag, carton box and seal
- **Large / high-volume orders:** Pallet or custom packaging per customer requirement
