# Hinge Body -Window & Door Hardware

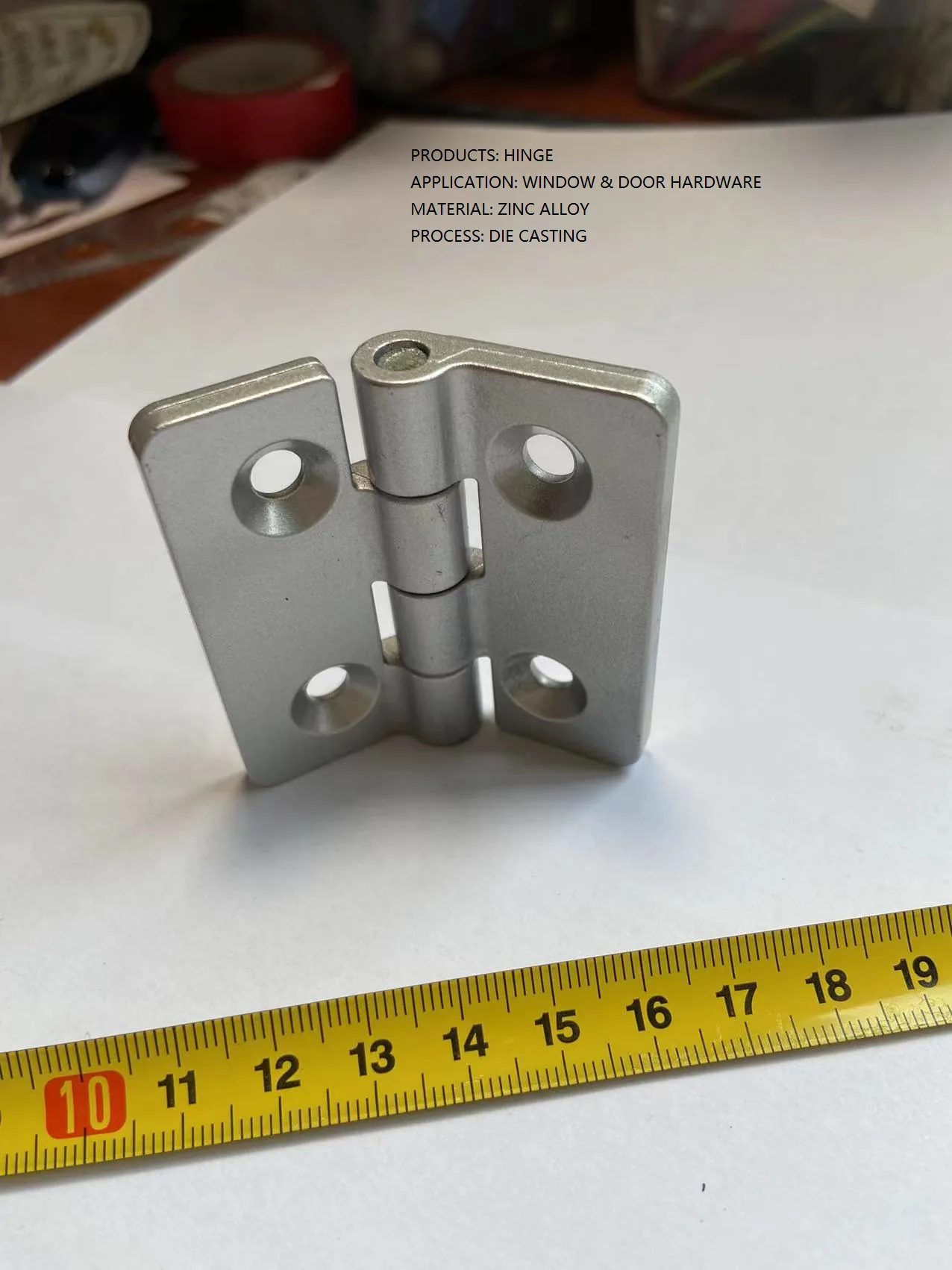

Hinge bodies for window and door hardware demand dimensional precision at the knuckle bore and leaf mounting holes, combined with cosmetically acceptable surface finish on visible faces. KastMfg produces hinge bodies in Zamak 5 zinc alloy using hot-chamber die casting, achieving bore-to-bore alignment within CT4-CT5 tolerance as-cast.
Zamak 5's higher strength and hardness versus Zamak 3 improves the wear resistance of knuckle bearing surfaces under repeated hinge operation. The smooth as-cast surface accepts nickel or chrome plating directly, producing the premium decorative finish expected in architectural hardware at competitive cost.
Material
Zamak 5 Zinc Alloy
Process
Hot Chamber High-Pressure Die Casting (HPDC)
Industry
Hardware / Building Products
Casting tolerance
Per drawing
Product Visual Plan
Supporting visuals for this product
These slots now use your current asset library, and they can be replaced product by product as you add more dedicated photos.
Secondary Product Angle
Use a second hero-quality image from another angle or orientation to show wall thickness, geometry depth, or mounting features.
Best as a clean tabletop component photo
Machined / Finished Detail
Add a close-up of machined bores, sealing faces, threads, coating finish, or critical dimensional features.
Best as a detail crop or macro shot
Application Context Photo
Reserve one slot for the component installed in an assembly, tooling fixture, or end-use product context.
Best as an in-application photo
Product Specifications
Surface Finishing Options
Packaging
- **Standard:** Pearl cotton and bubble bag, carton box and seal
- **Large / high-volume orders:** Pallet or custom packaging per customer requirement
