# Cooling Plate -Electric Industry
Cooling plates for power electronics and electrical equipment perform two functions simultaneously: structural housing and thermal management. KastMfg produces aluminum cooling plates in ADC12 alloy, which combines good castability for complex fin geometry with thermal conductivity of 96 W/m·K -sufficient for most forced-air cooling applications.
Cooling fin geometry is designed during DFM to optimize both die castability (draft angles, minimum fin thickness 1.5- mm, fin height-to-spacing ratio) and thermal performance. Post-casting powder coating or spraying plastics provides color identification, surface protection, and in some designs a defined emissivity for radiative cooling enhancement. CNC machining of mounting faces and fastener holes is available in-house.
Material
ADC12 Aluminum Alloy + Powder Coat / Spraying Plastics
Process
Cold Chamber HPDC + Powder Coating / Spraying Plastics
Industry
Electrical / Power Electronics
Casting tolerance
CT4-CT8 per GB/T 6,414-11,999 / ISO 8,062-11,984
Product Visual Plan
Supporting visuals for this product
These slots now use your current asset library, and they can be replaced product by product as you add more dedicated photos.

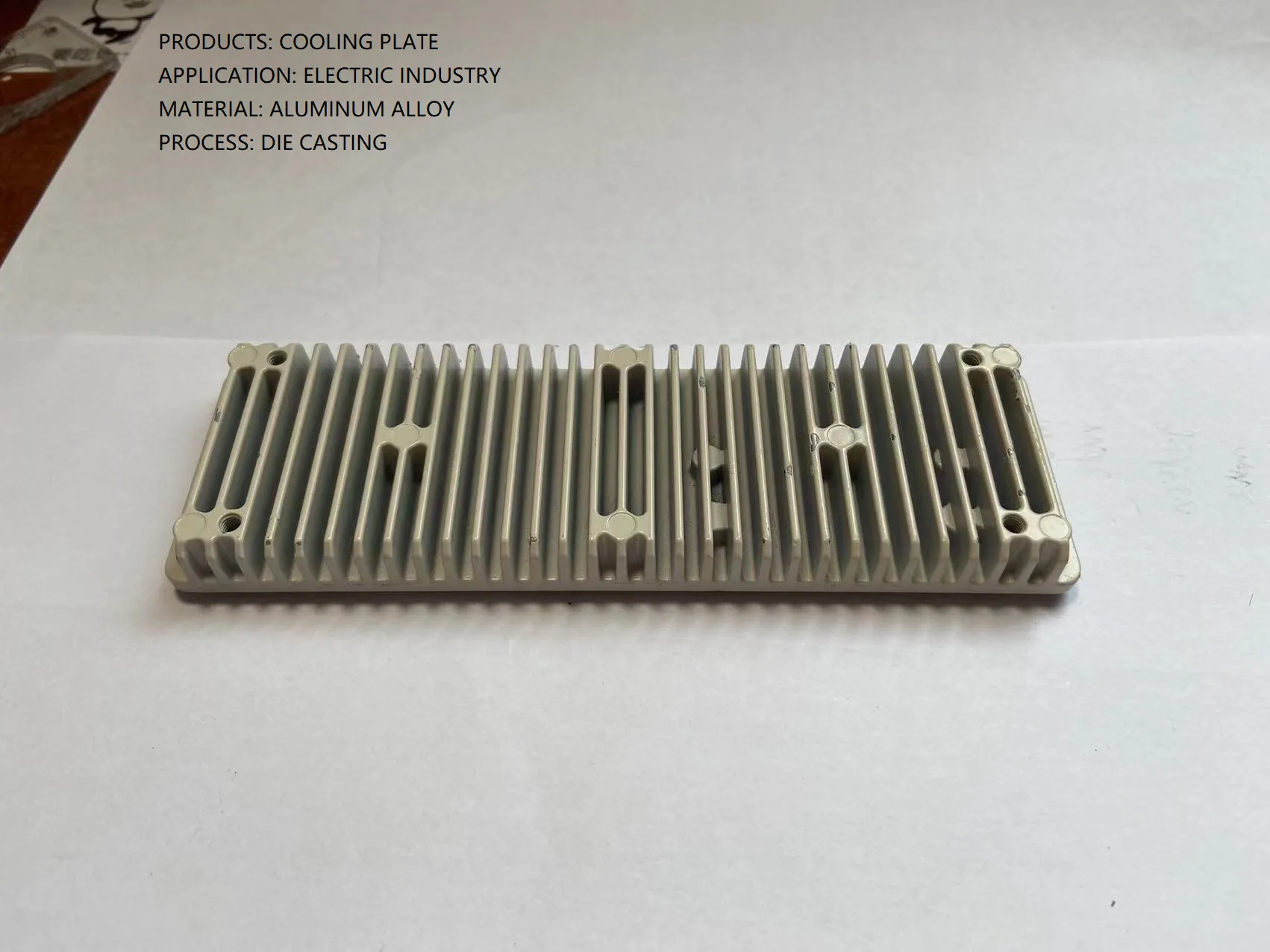

Secondary Product Angle
Use a second hero-quality image from another angle or orientation to show wall thickness, geometry depth, or mounting features.
Best as a clean tabletop component photo

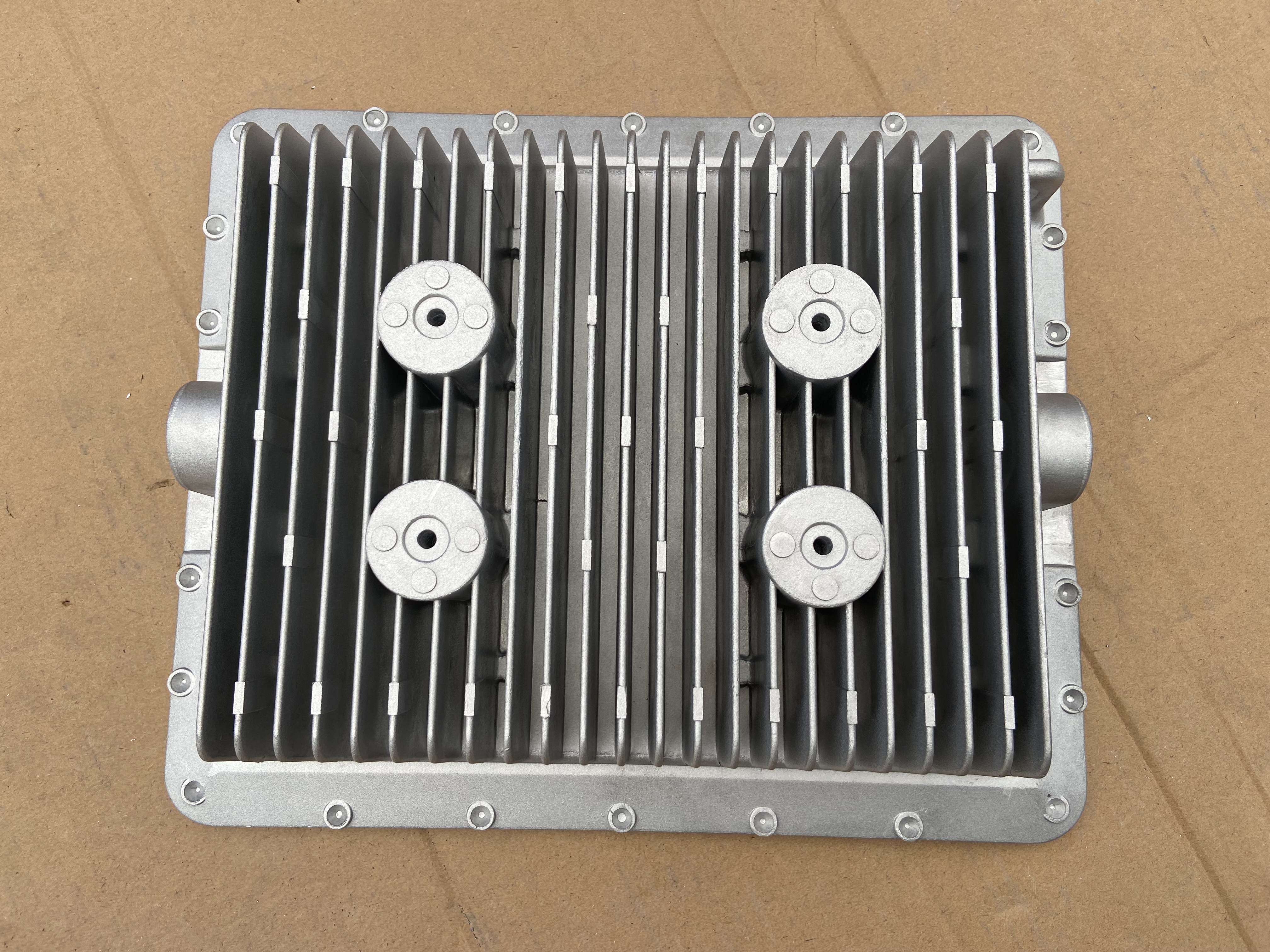

Machined / Finished Detail
Add a close-up of machined bores, sealing faces, threads, coating finish, or critical dimensional features.
Best as a detail crop or macro shot
Application Context Photo
Reserve one slot for the component installed in an assembly, tooling fixture, or end-use product context.
Best as an in-application photo
Product Specifications
Surface Finishing Options
Packaging
- **Standard:** Pearl cotton and bubble bag, carton box and seal
- **Large / high-volume orders:** Pallet or custom packaging per customer requirement
