# Compressor Friction Disc -A319 + T6
Compressor friction discs operate under cyclic mechanical load, requiring tensile strength, fatigue resistance, and dimensional stability that standard HPDC aluminum cannot reliably provide due to gas porosity inhibiting T6 heat treatment. KastMfg produces compressor friction discs in A319 aluminum alloy using low-pressure casting (LPDC) -a process that fills the die from below under gentle gas pressure, eliminating the turbulent injection that creates gas porosity in HPDC.
The low-porosity LPDC structure enables full T6 heat treatment: solution treatment at 495-510°C followed by water quench and artificial aging at 155-170°C. T6-treated A319 achieves tensile strength of 280-300 MPa, yield strength of 195-215 MPa, and hardness of 85-95 HRB -approximately 40% improvement over as-cast properties. Post-heat-treatment CNC machining of friction faces, bore, and keyway ensures geometric accuracy is maintained after the dimensional changes from T6 treatment.
Material
A319 Aluminum Alloy + T6 Heat Treatment
Process
Low Pressure Casting (LPDC) + T6 Heat Treatment
Industry
Compressor / Automotive
Casting tolerance
CT4-CT8 per GB/T 6,414-11,999 / ISO 8,062-11,984
Product Visual Plan
Supporting visuals for this product
These slots now use your current asset library, and they can be replaced product by product as you add more dedicated photos.

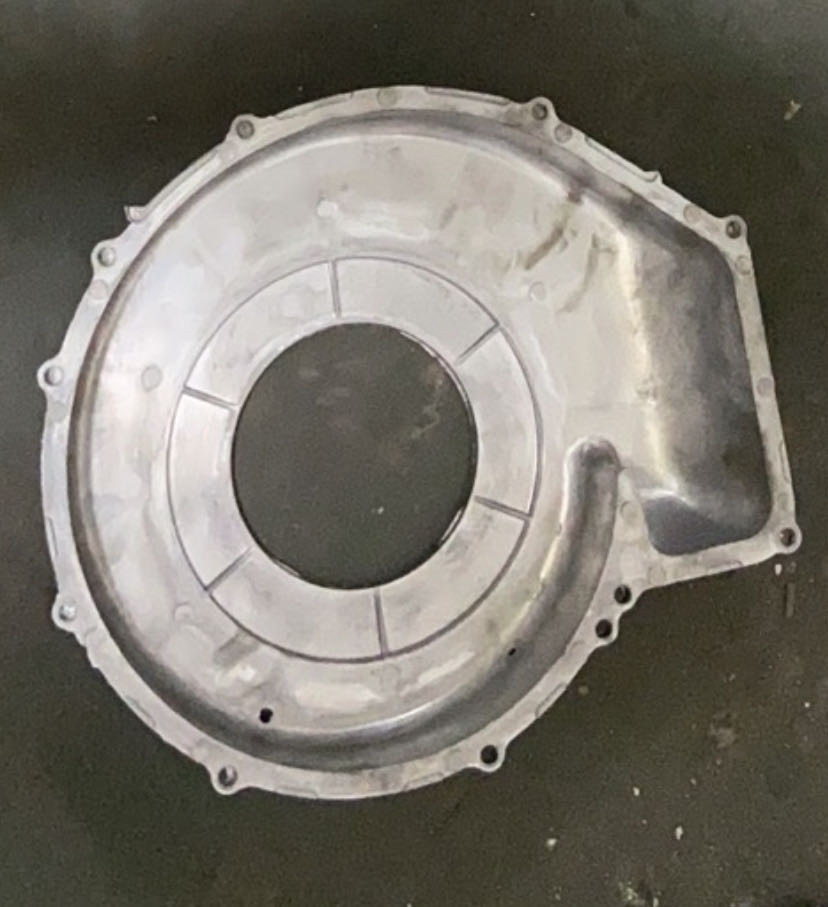

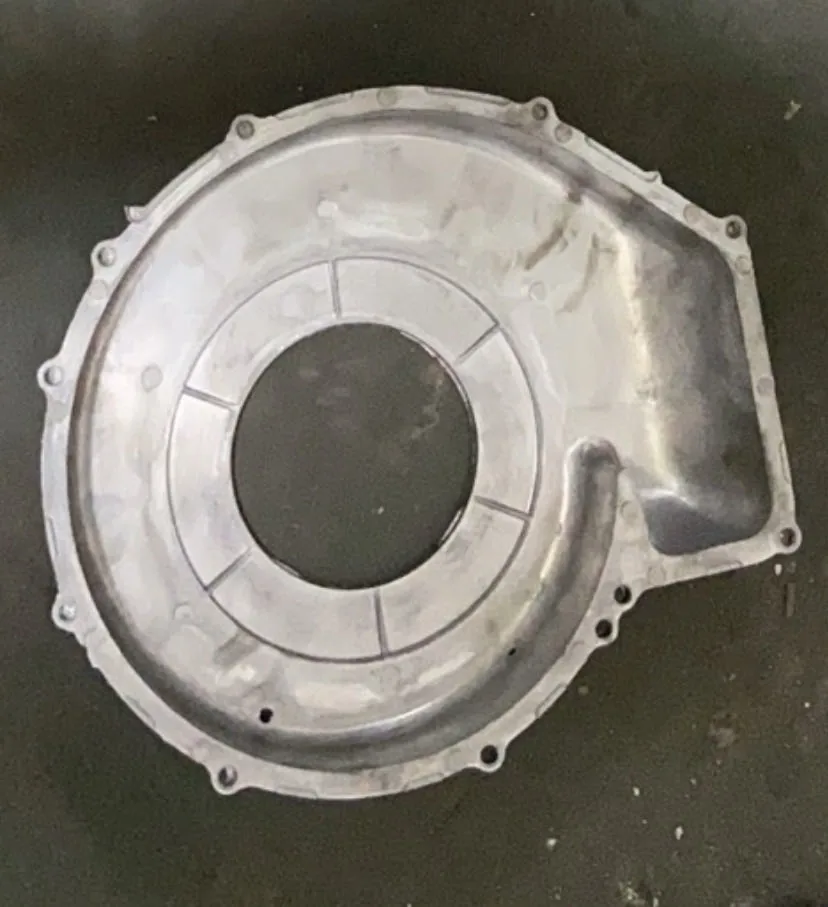

Secondary Product Angle
Use a second hero-quality image from another angle or orientation to show wall thickness, geometry depth, or mounting features.
Best as a clean tabletop component photo
Machined / Finished Detail
Add a close-up of machined bores, sealing faces, threads, coating finish, or critical dimensional features.
Best as a detail crop or macro shot
Application Context Photo
Reserve one slot for the component installed in an assembly, tooling fixture, or end-use product context.
Best as an in-application photo
Product Specifications
Surface Finishing Options
Packaging
- **Standard:** Pearl cotton and bubble bag, carton box and seal
- **Large / high-volume orders:** Pallet or custom packaging per customer requirement
